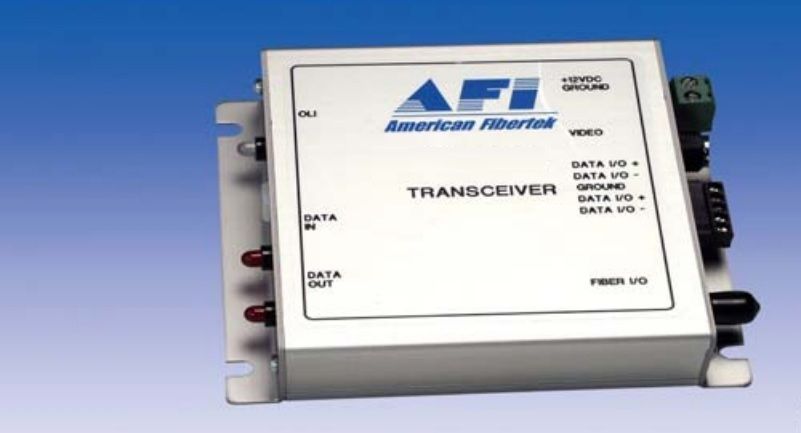

American Fibertek MR-0500SL 20mA Current Loop Data Transceiver, Single-Mode, ST Connectors

American Fibertek MR-0500SL Camera Features

The American Fibertek MR-0500SL is a low cost, low profile 20mA current loop data transceiver system. Data transmit and receive is accommodated on one single mode optical fiber.
These products are compatible with the AMAG M2100 DBU and M2150 8DBC access control equipment. The 0500SLs are factory set to be passive inputs and active outputs. However, the units have internal jumpers to allow independent field setting of the inputs and outputs to either active or passive, if required. Transceivers are packaged in compact extrusions.

Features

• 20mA Current Loop Data Transceiver: Provides robust data transmission over single-mode optical fiber, ensuring reliable communication.
• Diagnostic: LED Power Indicator: Easily monitor device status and Tx Data Activity with visible indicators.
• Modular Transceiver: Enables flexible installations and easy upgrades without replacing the entire system.
• Single mode Optics: Optimizes signal quality over long distances, reducing the risk of data loss.
• Active Output, Passive Input Ports: Facilitates customizable configurations tailored to specific system requirements.

American Fibertek MR-0500SL Detailed Specifications
