ICRealtime IVB-EOC102 1-Channel EoC Passive Converter

ICRealtime IVB-EOC102 1-Channel EoC Passive Converter Features

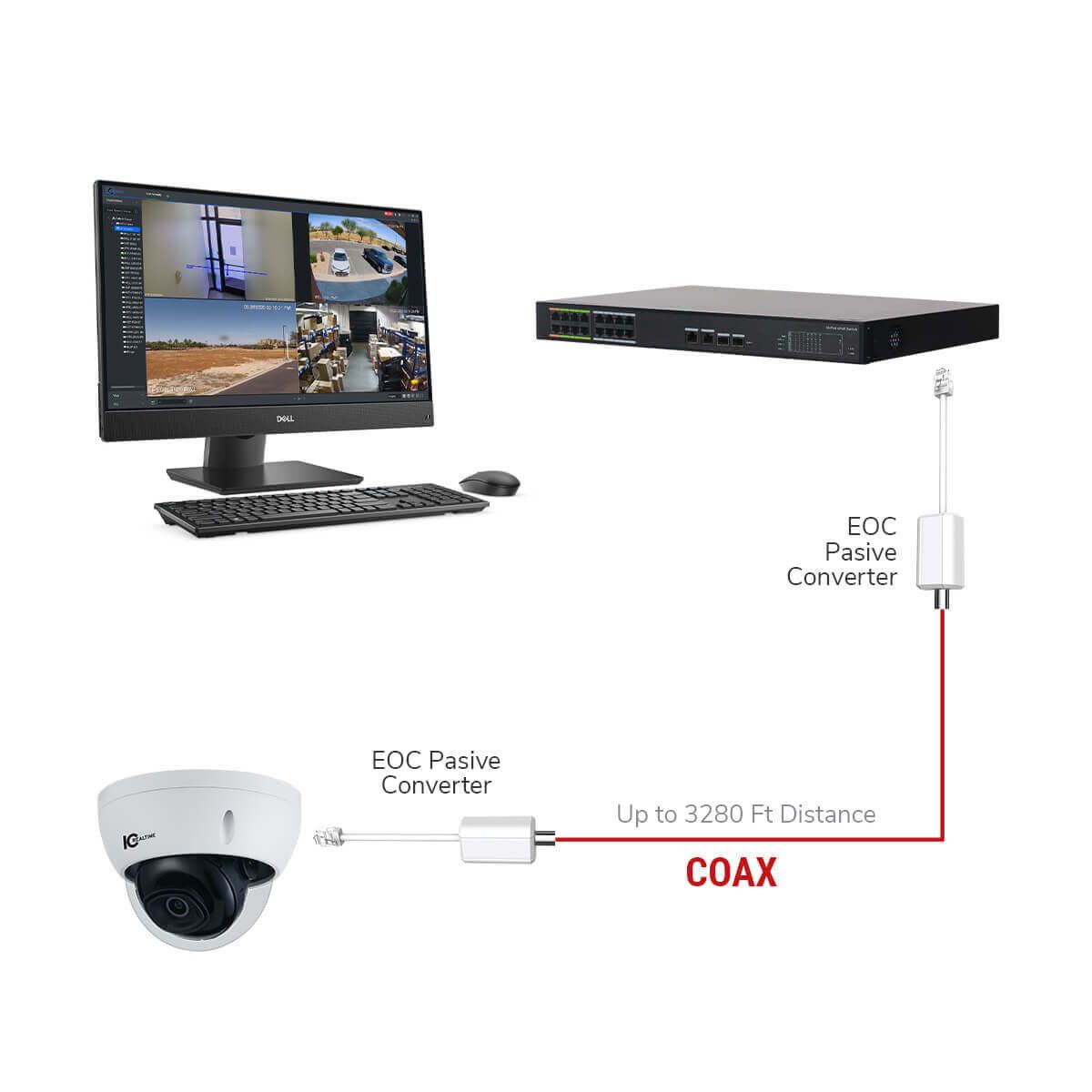

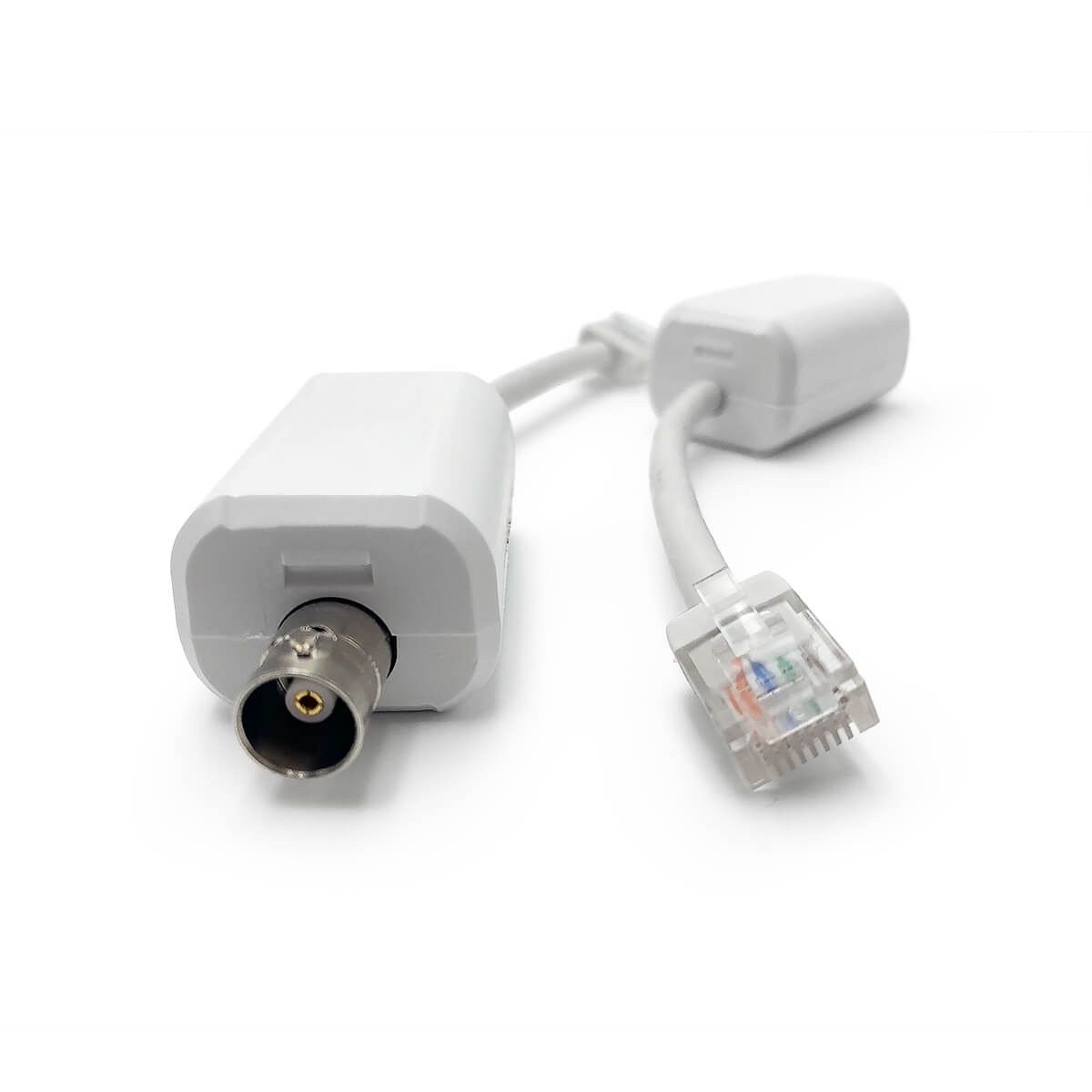

The IVB-EOC102 from ICRealtime is a RJ45 to BNC port converter which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port. The unit is equipped with 100Mbps and 10Mbps transmission modes.

Features

• Supports long range power supply: Enables efficient power transmission over long distances, reducing the need for additional power sources.
• Port configuration: Comes with 1*RJ45 10/100Mbps and 1*BNC port, offering versatile connectivity options for various devices.
• Impressive transmission capabilities: Supports RG59 coaxial cable with distances up to 400m at 100Mbps and 1000m at 10Mbps, ensuring reliable data transfer over extended ranges.
• MDI/MDIX self-adaption: Automatically detects cable type, simplifying installation and ensuring compatibility with a range of networking setups.
• Compliance with standards: Supports IEEE802.3 and IEEE802.3u standards, providing assurance of quality and compatibility with existing network equipment.

ICRealtime IVB-EOC102 Detailed Specifications
