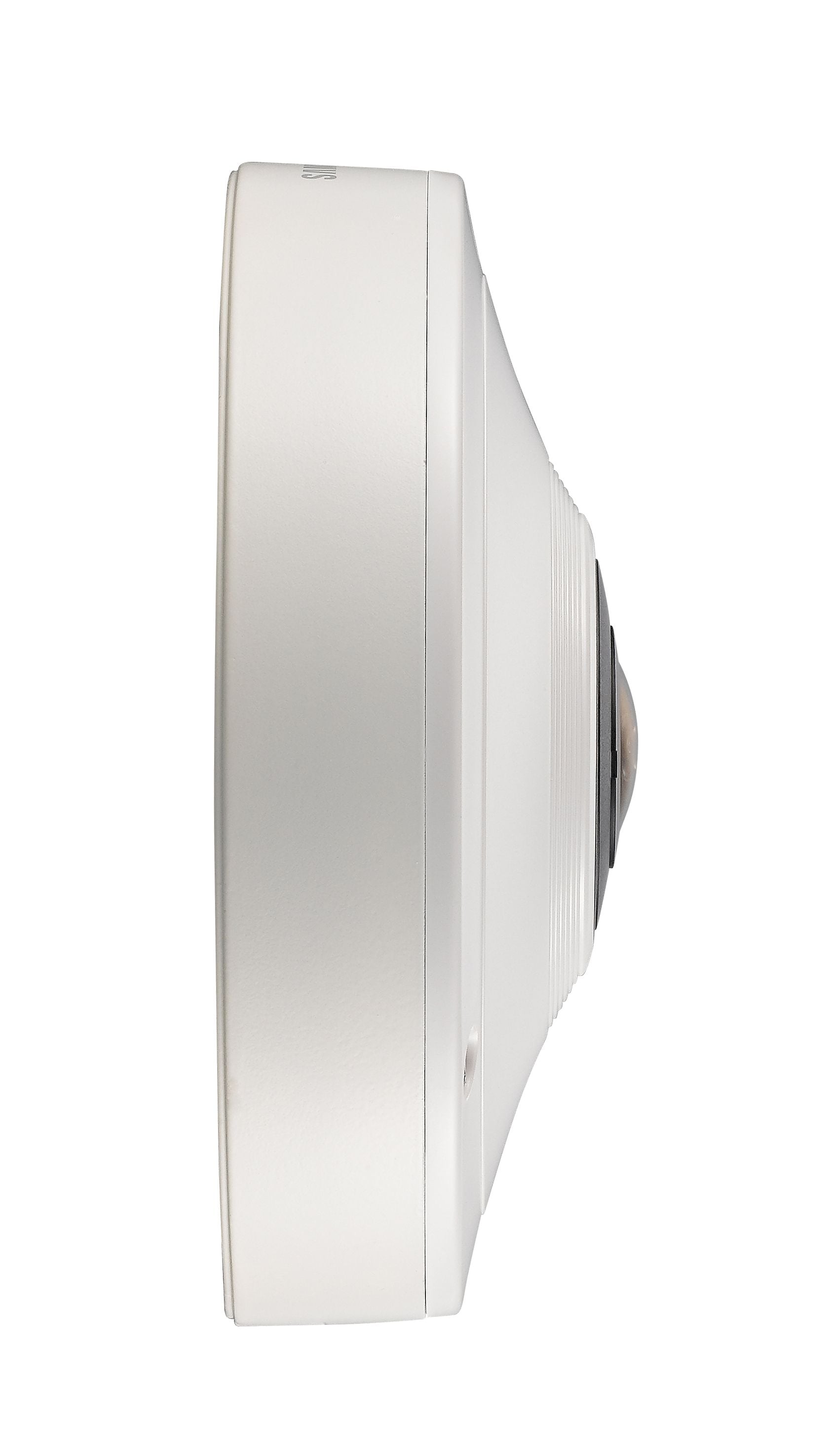

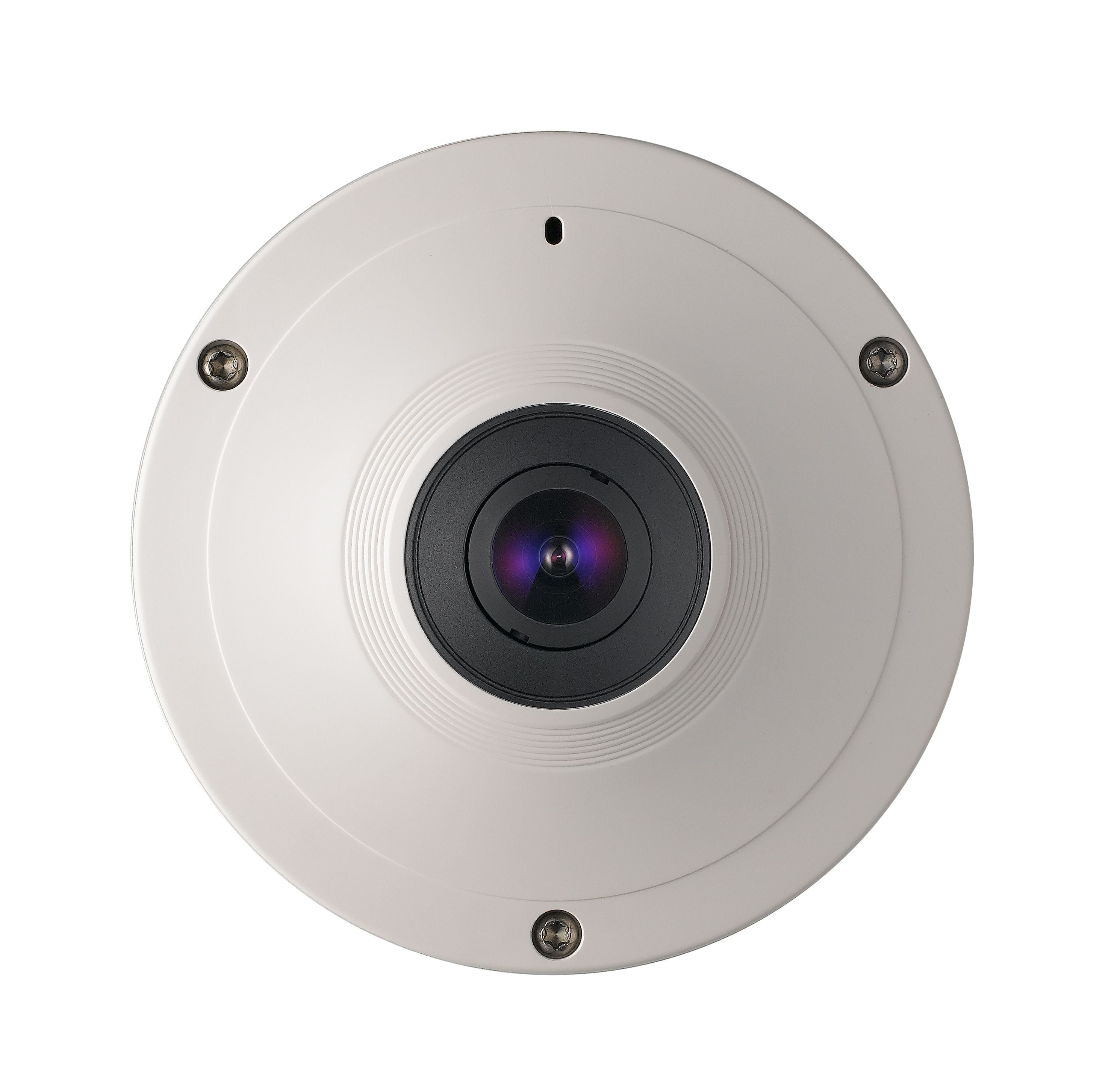

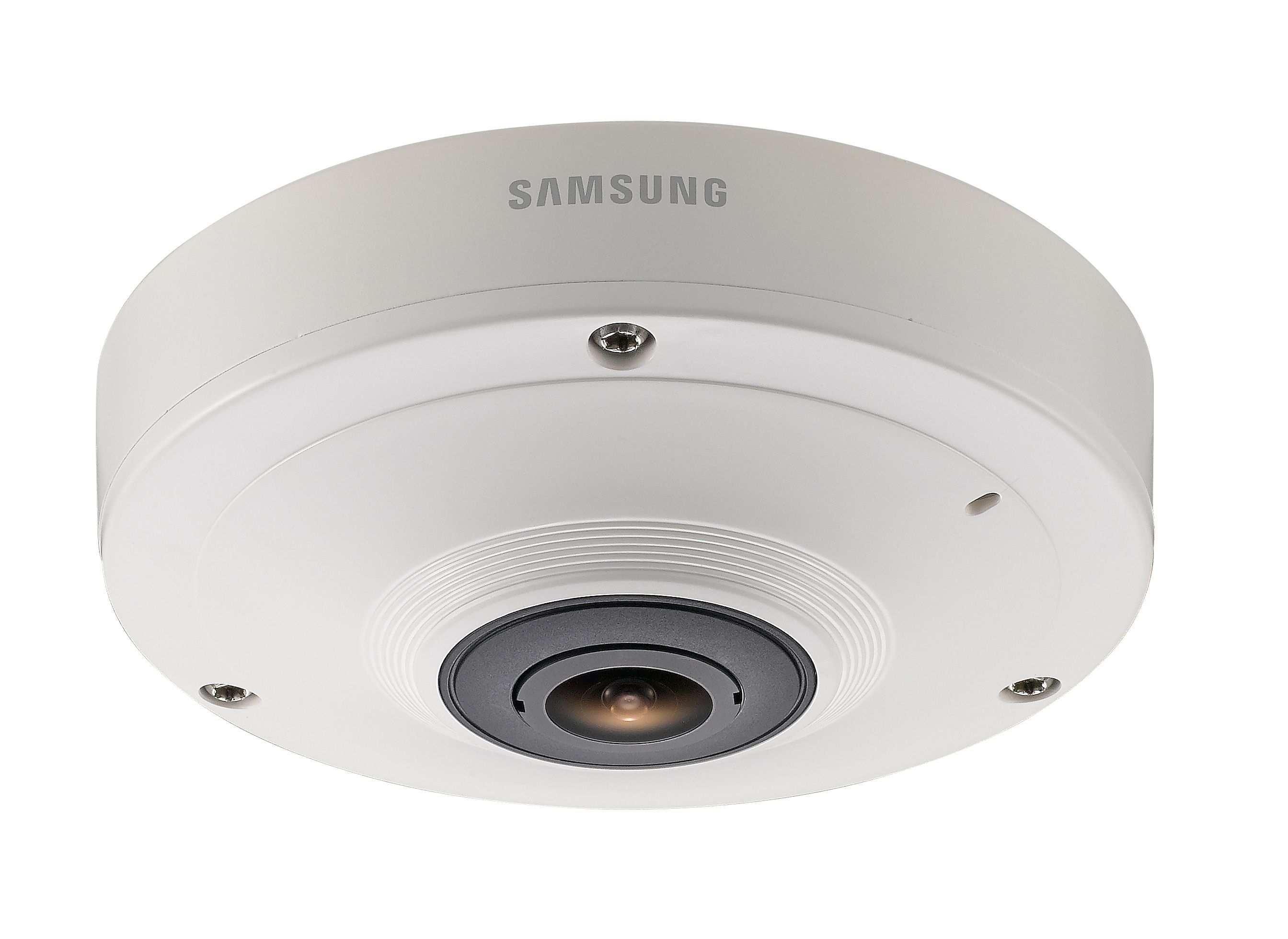

Hanwha Vision SNF-7010 360 Degree Fisheye Camera

Name: Hanwha Vision SNF-7010 360 Degree Fisheye Camera
Brand: Hanwha Vision
SKU: SNF-7010
Price: 355.55 USD
Availability: InStock

SKU

SNF-7010

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision SNF-7010 360 Degree Fisheye Camera SNF-7010 by Hanwha Vision

Model No

SNF-7010

$355.55

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

Digital PTZ, Bi-directional audio
SDXC support
IK10 and EN50155 certifications on outdoor version

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

360 Degree Fisheye Camera

The Hanwha Vision SNF-7010 360 Degree Fisheye Camera combines state-of-the-art technology with high-definition imaging to deliver exceptional surveillance capabilities. With its 3 megapixel resolution and versatile viewing options, this camera ensures complete coverage of any area. Its advanced motion detection feature adds an extra layer of security by promptly identifying changes in monitored spaces.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Motion Detection

Privacy Masking

WDR

Camera Features


360-degree fisheye, Single panorama, Double panorama, Quad, User selectable region, Single rectangle, 1 original,	Bi-directional audio
3 megapixels, 1080p 20fps	SDXC support
H.264 and MJPEG Compression	PoE (Power over Ethernet)
Digital PTZ

Specifications

SKU	SNF-7010
Features	Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range
Manufacturer	Hanwha Vision
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	3 Megapixel
Lens Type	Fixed
Lens Size	1.05mm
Mount Type	Ceiling, Wall
Compression Method	H.264, M-JPEG
Durability	Indoor
Voltage	PoE
Automatic Gain Control (AGC)	Off / Low / Middle / High
Dimensions (W x H)	Ø128.8 x 45.0mm (Ø5.07" x 1.77")
Electronic Shutter	Min / Max / Flicker off / 50Hz / 60Hz / (1s~ 1/12,000s)
Image Device	1/2.8" 3M PS CMOS
Image Pixels Total	3megapixel
Minimum Scene Illumination	1.3Lux
Operating Humidity	~ 90% RH
Operating Temperature	-10°C ~ +55°C (-34°F ~ +140°F
Power Consumption	Max. 6.5W
Privacy Zone	Off / On (32 zones with 4 points of polygonal)
Protocols	TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, IPv4, IPv6
Scanning Horizontal	Progressive
Scanning Vertical	CVBS : 1.0 Vp-p / 75? composite, 704 x 480(N), 704 x 576(P), for installation, DIP connector type
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Angle of View	H : 180° / V : 170° / D : 180°
Rotation Angle	0°~ 355°
Motion Detection Tracking	Off / On (4ea 4points polygonal zones)
Back Light Compensation	Off / BLC
Automatic White Balance	ATW / AWC / Manual / Indoor / Outdoor
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Motion Detection Tracking	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
ONVIF	Yes
