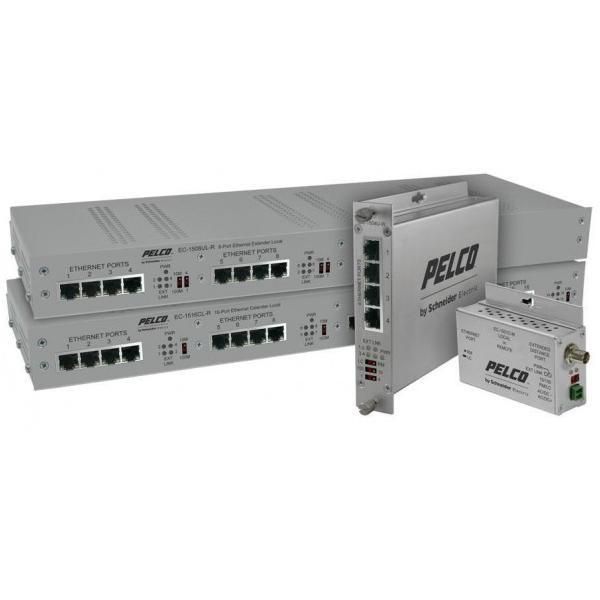

Pelco EC-3001ULPOE-M Ethernet Connect local Single Port UTP Extender

This Pelco EC-3001ULPOE-M Ethernet Connect local Single Port UTP Extender is designed to extend Ethernet connections without the need for midspans or PoE-enabled switches, providing a cost-effective solution for powered devices over long distances while ensuring compliance with the latest PoE standards.

Pelco EC-3001ULPOE-M Key Features

• Extends Ethernet Distance: Extends Ethernet up to 1,524 m (5,000 ft) at 10 Mbps or 549 m (1,800 ft) at 100 Mbps over coaxial cable, ensuring versatility in installation scenarios.
• Robust Temperature Range: Supports extended temperature operation from –40° to 75°C (–40° to 167°F), making it suitable for various environmental conditions.
• PoE+ Capability: Provides extended pass-through PoE that meets the IEEE802.3at standard, allowing for seamless power delivery to connected devices.
• Full Bandwidth Support: Offers full 10/100 Mbps bandwidth, facilitating high-speed data transmission.
• Comprehensive Frame Support: Supports multicast, unicast, and jumbo frames, enhancing network flexibility and performance.
• Symmetric Bandwidth: Delivers consistent upload and download speeds with virtually zero packet loss over usable distances.
• RFC-2544 Compliance: Type tested to RFC-2544 TCP/IP Network bandwidth transmission standards, assuring reliability and performance.
• User-Selectable Data Rate: Allows for maximum bandwidth and transmission distance utilization through user selection.
• Compliance with Standards: Complies with major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS for broad compatibility.
• Environmental Compliance: Independently tested and certified for compliance with NEMA TS-1/TS-2 environmental requirements, ensuring durability.
• LED Status Indicators: Equipped with LED indicators that confirm operating status for easy monitoring.
• Made in the USA: Proudly designed and manufactured in the USA, ensuring high-quality production standards.

Pelco EC-3001ULPOE-M Detailed Specifications
