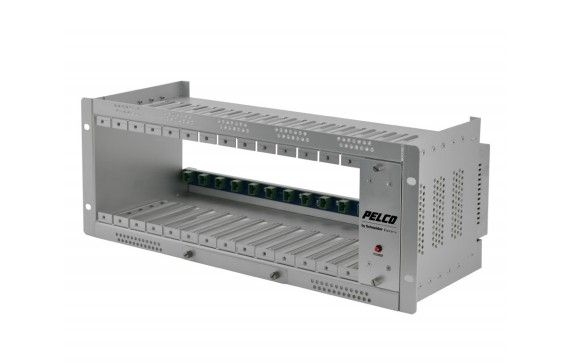

Pelco USRACK Fiber Rack Mounts Chasis for Fiber Optic Modules with Internal Power Supply

The USRACK chassis is designed to hold up to 14 single-width fiber optic modules. The internal power supply is 4 RU high. The chassis is designed to mount into an EIA-standard, 48.26 cm (19-inch) rack. Optional single-width blank modules (RACK1B) can be inserted into empty module slots.

The USRACK fiber card cage features automatic electronic current limiting at each module rather than limiting current at the power supply. With this design, if a fiber module fault occurs, only the faulty module will shut down. All other modules within the rack will continue to operate unimpaired.

The automatic current limiting feature of the USRACK is also self-resetting. This allows the unit to handle a temporary or intermittent fault or overload. Modules in the chassis are hot-swappable, allowing the rack to remain powered when removing or replacing modules.

Features

• 4 Rack Units (RU) High
• Mounts in a EIA-Standard 48.26 cm (19-Inch) Rack
• Holds up to 14 Single-Width Fiber Optic Modules
• Hot-Swappable Internal Power Supply
• Voltage Transient Protection on All Power and Signal Input/Output Lines
• Optional Blank Modules
• Compatible with All FTV/FRV Series Modules
