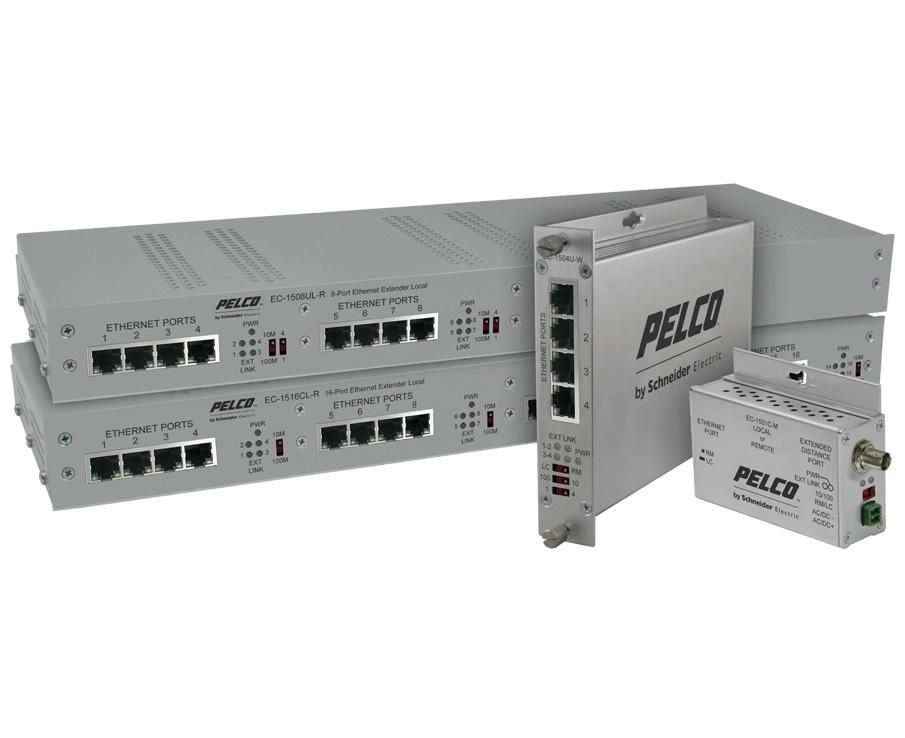

Pelco EC-1501C-M Ethernet Connect Local/Remote Single Port Extender
SKU
EC-1501C-M
Model No
EC-1501C-M
$245.79
Product Highlights
- Transmits Individual Ethernet Data Channels with Pass-Through Power over Ethernet (PoE) over Standard Cat5/Cat5e/Cat6 UTP Cable or Coaxial Cable
- Extends Ethernet up to 914 m (3,000 ft) at 10 Mbps or 610 m (2,000 feet) at 100 Mbps over Cat5/Cat5e/Cat6 UTP Cable
- Extends Ethernet up to 1,524 m (5,000 ft) at 10 Mbps or 549 m (1,800 ft) at 100 Mbps over Coaxial Cable
- Extended Temperature Operation from - 40° to 75° C ( - 40° to 167° F)
- Extended Pass-Through PoE Meets the IEEE802.3af Standard for Power over Ethernet
Speak to an expert
Introducing the Pelco EC-1501C-M Ethernet Connect Local/Remote Single Port Extender, a versatile solution designed for extending Ethernet connectivity without the need for complex programming. Ideal for both local and remote applications, this extender allows you to use coaxial cable to reach distances up to 1,524 meters while supporting Power over Ethernet (PoE). Experience unmatched reliability, consistent bandwidth, and optimal performance in various environmental conditions.
Pelco EC-1501C-M Ethernet Extender Features
- Extends Ethernet Distance: Up to 1,524 m (5,000 ft) at 10 Mbps or 549 m (1,800 ft) at 100 Mbps over coaxial cable, ensuring connectivity in hard-to-reach areas.
- Extended Temperature Range: Operates effectively from –40° to 75°C (–40° to 167°F), making it suitable for diverse climates.
- PoE Support: Extended pass-through PoE meets IEEE802.3af standard, allowing remote powering of devices without direct power sources.
- High-Speed Performance: Full 10/100 Mbps bandwidth guarantees fast and reliable data transmission.
- Data Transmission Flexibility: Supports multicast, unicast, and jumbo frames for versatile network management.
- Symmetric Bandwidth: Provides consistent upload and download speeds with virtually zero packet loss across the usable distance.
- Network Standards Compliance: Type tested to RFC-2544 standards for robust TCP/IP network performance.
- User-Controlled Data Rate: Allows users to select data rate for optimized bandwidth and distance utilization.
- Protocols Compliance: Fully compliant with major IEEE standards and RFC protocols including UDP, TCP/IP, and HTTP/HTTPS.
- Independent Laboratory Tested: Certified for environmental requirements of NEMA TS-1/TS-2 and Caltrans specifications.
- LED Status Indicators: Clear indicators confirm operational status, enhancing user experience.
- USA Made: Designed and manufactured in the USA, reflecting quality and reliability.
Pelco EC-1501C-M Detailed Specifications
| Ethernet Distance | Up to 1,524 m (5,000 ft) at 10 Mbps; 549 m (1,800 ft) at 100 Mbps |
| Operating Temperature | –40° to 75°C (–40° to 167°F) |
| Power over Ethernet | Pass-through PoE per IEEE802.3af |
| Bandwidth | 10/100 Mbps |
| Data Rate Options | User-selectable for optimal performance |
| Protocol Compliance | IEEE standards, RFCs for UDP, TCP/IP, HTTP/HTTPS |
| Environment Certification | NEMA TS-1/TS-2 and Caltrans compliant |
| Manufacturing Origin | Designed and manufactured in the USA |
SKU  | EC-1501C-M |
|---|---|
| Manufacturer | Pelco |
| NDAA | Compliant |
