KJB DX2000-6 Delta X 2000/6 Real-Time Spectrum Analyzer, 40 kHz - 6000 MHz

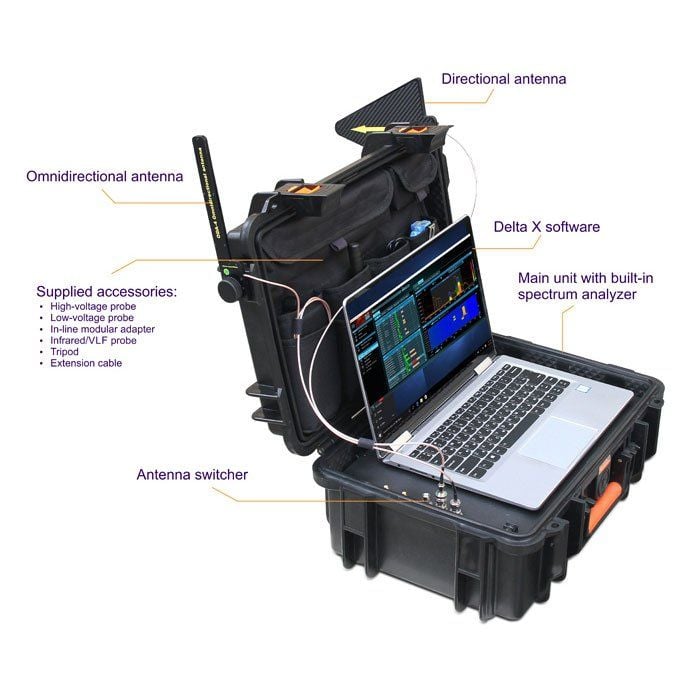

The DX2000-6 from KJB is a delta X 2000/6 system that detects signals in real time while providing highly reliable results. The system’s hardware incorporates a powerful spectrum analyzer which provides super-fast speed of measurements with extreme sensitivity. The antenna switcher and low frequency converter extend the system’s functionality.

KJB DX2000-6 Delta X 2000/6 Key Features

• Counter Surveillance at its best: the Delta X Sweeping System operates within a frequency range of 40 kHz-6000 MHz, offering comprehensive detection of RF listening devices.
• Versatile Detection: Quickly and reliably detects analog and digital RF listening devices, ensuring all monitoring scenarios are covered, whether they are sending audio or video.
• Extensive Signal Analysis: Finds hidden surveillance devices that employ digital standards like GSM, 3G, 4G/LTE, Bluetooth, Wi-Fi, and DECT.
• Wide-ranging Capability: Detects illegal information transmission through various mediums such as AC, telephone, Ethernet, alarm wires, and in the infrared range.
• Advanced Detection Modes: Offers instant detection mode, guarding mode, and car tracker detection mode for a tailored surveillance experience.
• Exceptional Sensitivity: Features 20-50 times higher sensitivity compared to conventional RF detectors, improving detection accuracy.
• Continuous Monitoring: Can monitor the RF environment 24 hours a day with data logging capabilities for thorough analysis and review.
• Comprehensive Signal Storage: Supports unlimited signal storage, allowing for detailed logs that can be reviewed during or after detection.
• Audio Demodulation: Capable of demodulating audio in FM, AM, USB, LSB, and CW with adaptable bandwidth ranging from 3 to 240 kHz.

KJB DX2000-6 Exclusive Features

• Real-Time Update Rate: Offers an impressive update rate of 2000-3000 MHz per second, ensuring effective real-time data processing.
• Wide Frequency Range: Operates within a frequency range of 40 kHz – 6000 MHz, suitable for a variety of detection needs.
• Short Signal Detection: Detects digital signals with short bursts by effectively accumulating data for improved precision.

KJB DX2000-6 Software Functions

• Rich Visual Representation: Provides a comprehensive visual representation including spectrogram/persistence, waterfall, and alarm graphs for better signal understanding.
• Known Signals Table: Allows the system to reject familiar signals like TV or FM while preserving high sensitivity to unknown threats.
• Bugging Device Locator: Operates with both visual and audio notifications for locating bugging devices, enhancing user experience.
• Reduced False Alarm Rate: The alarm threshold feature significantly decreases the rate of false alarms, promoting reliability.
• Hold Max Danger Feature: This feature highlights the strongest signals during movement for effective detection.
• Dynamic Adjustment Capability: The update mask procedure allows quick adjustments to the system's settings to quickly reject safe signals in the local RF environment.
• Sorting and Filtering: This capability in the Signals table aids in efficiently managing displayed data.
• Report Function: Enables operators to export all acquired information regarding signals for future reference.
• Multi-language Support: Easily localizable to any language, providing user-friendly interaction for diverse users.

KJB DX2000-6 Detailed Specifications
