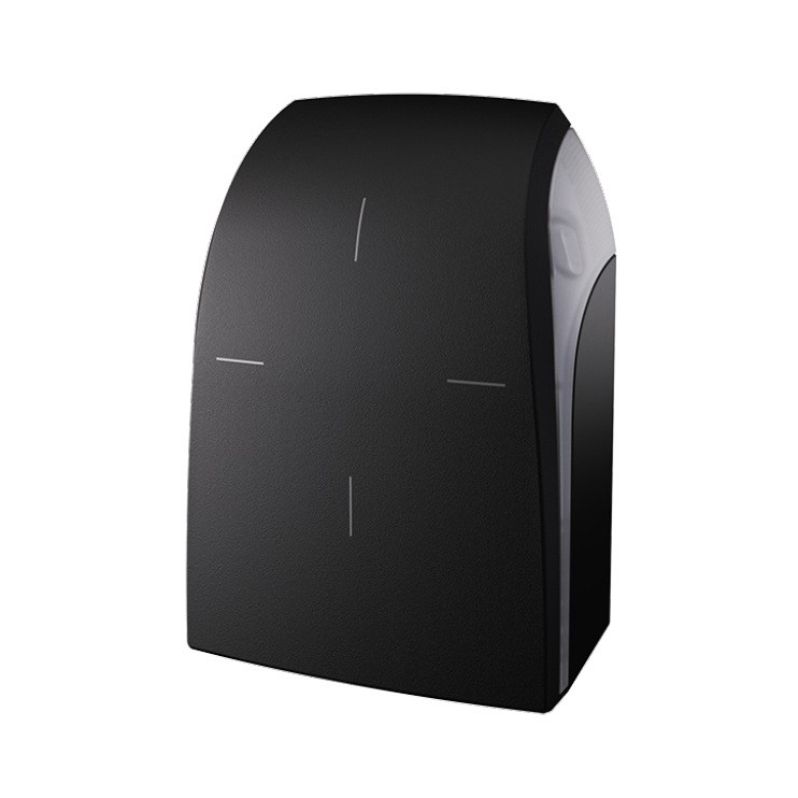

Bosch ARCW33APH5B201A Card Reader, OSDP, Standard

Bosch STid Reader - Key Features

The STid reader has three different form factors: it is pre-configured and programmed, ready to use and available in black color. It can be surface-mounted and an optional mounting box can be used. This reader is suitable for the US Gang Box, and it complies with the European standard as well. To provide a wide range of solutions, the reader is fully compatible with the Bosch Access management portfolio, including not only the Management Software Systems (Access Management System - AMS - and Building Integration System - BIS), the Access Modular Controller (AMC2), but also the entire MIFARE credential portfolio. The STid reader is very simple to use, and provides clear feedback to the user during operation, due to the LED and beeper. Because the reader is IP65 and IK10 rated, it is optimally suited for outdoor environments, and provides the highest level of resistance against vandalism.

Features

• 13.56 MHz compatibility: The reader is designed to work seamlessly with access controllers using an RS485 interface, enhancing flexibility in installation.
• IP65 rated: Ensures protection against dust and water, making it suitable for both indoor and outdoor use.
• MIFARE support: Compatible with MIFARE DESFire EV1 and EV3 (Bosch coded), MIFARE Classic (CSN), and MIFARE DESFire EV1, EV2, and EV3 (CSN), allowing for versatile credential options.
• OSDP V2 Secure Channel: Offers enhanced security features by supporting encrypted communication, ensuring data integrity.
• AMS software compatibility: Fully compatible with AMS software (5.2 and above) and OSDP AMC2 controllers, streamlining integration into existing systems.

Bosch STid Reader - Detailed Specifications
