Altronix T3SK75F8 Access and Power Integration Solution, Trove / Software House Kits (Fused)
SKU
T3SK75F8
Model No
T3SK75F8
$1,458.38
Product Highlights
- Input: 120VAC 60Hz/8.0A
- Output: 24VDC up to 9.2A max current
- Eight (8) Fail-Safe/Fail-Secure or Dry Form ″C″ Outputs
- Trove3 enclosure with TSH3 backplane
- Fuse Rating: 15A/32V
Speak to an expert

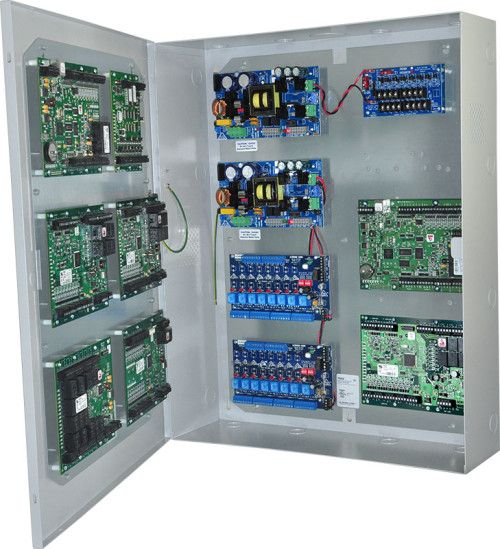

The Altronix T3SK75F8 Access and Power Integration Solution offers a seamless combination of power management and access control in a single enclosure. This pre-assembled kit includes a Trove3 enclosure with factory-installed power supply/chargers, supporting multiple Software House boards for up to eight doors. Ideal for enhancing security, this solution provides reliable performance and exceptional monitoring capabilities.
Features
Altronix T3SK75F8 - Input Specifications
- Input: 120VAC 60Hz/8.0A - Ensures compatibility with standard electrical systems for effortless installation.
Altronix T3SK75F8 - Output Specifications
- Output: 24VDC up to 9.2A max current - Delivers robust power for efficient door access control operations.
- Outputs: Eight (8) Fail-Safe/Fail-Secure or Dry Form “C” Outputs - Provides versatility for various access control configurations.
Altronix T3SK75F8 - Back-up Battery Support
- Battery Capacity: 12AH / 12VDC (up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure) - Ensures long-lasting operation during power outages.
- Battery Type: Sealed lead acid or gel type - Offers flexibility in battery selection for specific applications.
- Fuse Rating: 15A/32V - Protects the system from overcurrent to enhance safety.
- Failover: Instantaneous upon AC loss - Guarantees immediate back-up power availability.
Altronix T3SK75F8 - Supervision Features
- AC Failure: Form “C” contacts - Provides alerts for AC power loss for proactive system management.
- Battery Supervision: Form “C” contacts - Monitors battery status for reliable performance.
- Low DC Power Shutdown: Prevents deep battery discharge by shutting down output terminals when battery voltage drops - Increases battery lifespan and reliability.
Altronix T3SK75F8 - LED Indicators
- Input Indicator: Shows when 120VAC is present - Allows easy monitoring of power status.
- DC Output Indicator: Confirms when powered - Ensures the system is operational at a glance.
- Battery Indicator: Warns if discharged or not connected - Enhance maintenance awareness to prevent operational failures.
Altronix T3SK75F8 - Detailed Specifications
| Feature | Details |
| Input Voltage | 120VAC 60Hz/8.0A |
| Output Voltage | 24VDC up to 9.2A max |
| Outputs | Eight (8) Fail-Safe/Fail-Secure or Dry Form “C” Outputs |
| Battery Capacity | 12AH / 12VDC (up to 4); 40 AH / 65 AH (requires separate enclosure) |
| Battery Type | Sealed lead acid or gel type |
| Fuse Rating | 15A/32V |
| Failover Time | Instantaneous upon AC loss |
| AC Failure Supervision | Form “C” contacts |
| Low Power Shutdown | Activates below specific battery voltage levels |
| LED Indicators | Input, DC Output, Battery Status |
SKU  | T3SK75F8 |
|---|---|
| Manufacturer | Altronix |
| Output Type | DC |
| Input Voltage | 120VAC |
| Number of Outputs | 8 |
| Output Protection | Fuse |
| Fire Alarm Interface | No |
| Battery Charging | Yes |
| Power Options | 9.2 amp @ 24VDC |
