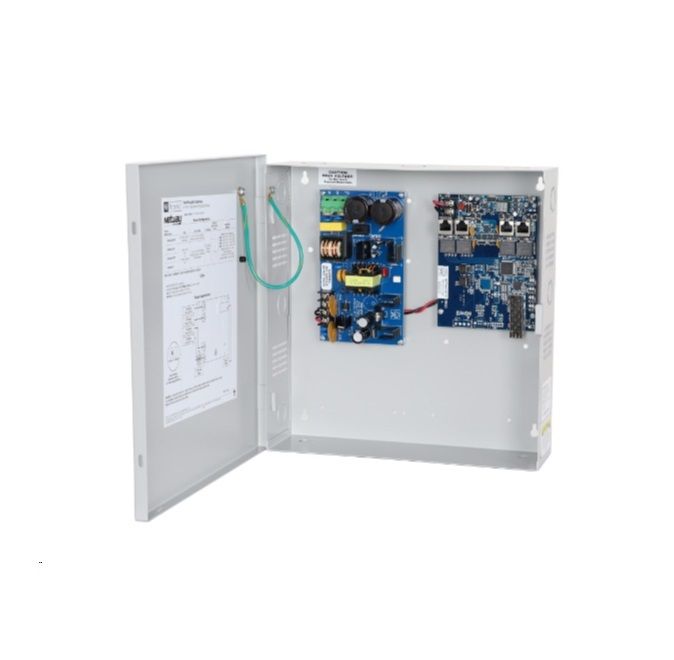

Altronix NETWAY4E1X 4 Port Hardened PoE Switch with Power Supply/Charger
SKU
NETWAY4E1X
Model No
NETWAY4E1X
$584.50
Product Highlights
- Four (4) 10/100/1000 Mbps
- PoE/PoE+ (up to 30W) ports
- IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
- 120W total power
- Integral surge protection
Speak to an expert
Altronix NETWAY4E1X 4 Port Hardened PoE Switch with Power Supply/Charger is designed for robust performance in demanding environments. With a total power output of 120W and the capability to support PoE+ devices up to 100 meters away, this switch ensures reliability and efficiency for powering cameras and edge devices. Its integrated surge protection and LED indicators enhance usability, making it a standout choice for professionals in the field.
Altronix NETWAY4E1X Key Features
- Power Output: Supports four PoE+ ports (30W each) providing ample power for multiple devices.
- Backup Battery Support: Compatible with sealed lead acid or gel type batteries ensuring uninterrupted operation during power loss.
- Compact Design: Rugged design suitable for harsh environments with an operating temperature range of -40ºC to 50ºC.
- Fiber Connectivity: Includes one Gigabit SFP port for high-speed data transfer.
- Comprehensive Protection: Integral surge protection safeguards connected devices from power surges.
- LED Indicators: Clear, real-time status indicators for efficient monitoring of power and network activity.
Altronix NETWAY4E1X Detailed Specifications
| Input Voltage | 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A |
| Fusing | 5A/250V |
| Maximum Power Output | 120W total |
| PoE Ports | Four (4) 10/100/1000 Mbps PoE/PoE+ |
| Standard Compliance | IEEE 802.3af (15W), IEEE 802.3at (30W) |
| Operating Temperature | -40ºC to 50ºC (-40ºF to 122ºF) |
| Storage Temperature | -30ºC to 85ºC (-22ºF to 185ºF) |
| Relative Humidity | 85% +/-5% |
| Operating Altitude | - 304.8 to 2,000m |
| BTU/Hr. | Approx. 61 BTU/Hr |
| LED Indicators | PoE On, IP Link Status, ALOS for SFP, Heartbeat LED |
| Backup Battery Failover | Instantaneous upon AC loss |
SKU  | NETWAY4E1X |
|---|---|
| Manufacturer | Altronix |
| Type | Indoor Wallmount |
| Input Voltage | 115VAC |
| Number of Outputs | 4 |
| Output Protection | Fuse |
| Certification | CE |
