Hanwha Vision XND-9082RV 4K Indoor Network IR Dome Camera, 2.8-8.4mm Lens
- 4K resolution
- 2.8~8.4mm(3x) motorized varifocal
- 0.05Lux@F1.2 (Color), 0Lux (B/W, IR LED on)
- 30fps@4K (H.265/H.264)
- IR viewable length 131ft (40m)
The XND-9082RV from Hanwha Vision is a 4k indoor network IR dome camera, 2.8-8.4mm lens. The Wisenet X series powered by Wisenet 7 network indoor vandal dome camera features a modular structure, 4K @ 30fps, motorized vari-focal lens 3x (2.8~8.4mm) (114°~40.2°). 131 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements.

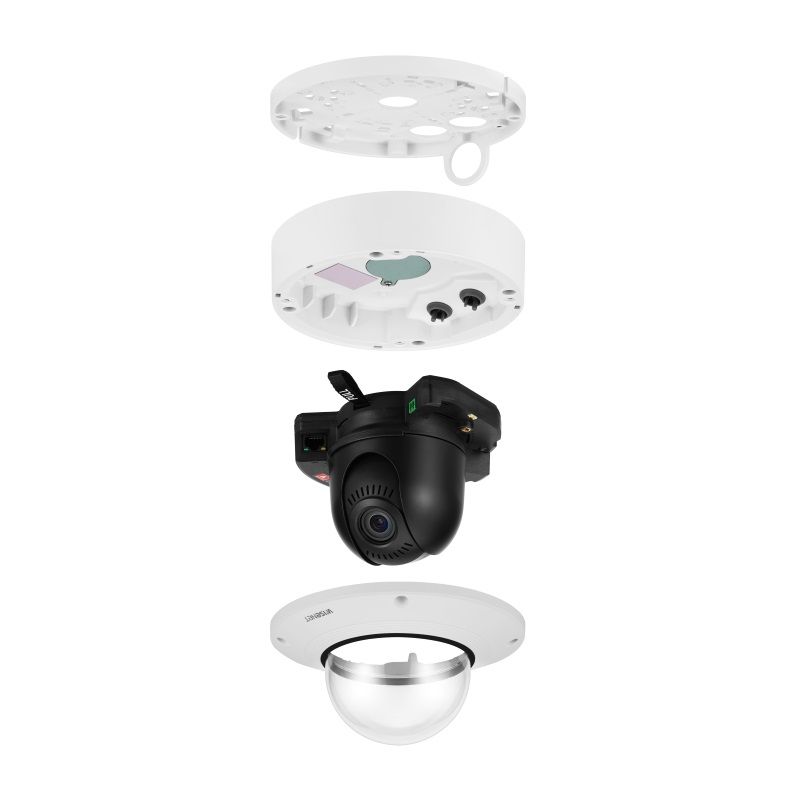

Additional features include extreneWDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card slots, hallway view, HLC, defocus detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case. Advanced cybersecurity built-in.
Features
- 4K resolution
- 2.8~8.4mm(3x) motorized varifocal
- 0.05Lux@F1.2 (Color), 0Lux (B/W, IR LED on)
- 30fps@4K (H.265/H.264)
- IR viewable length 131ft (40m)
- Day & Night (ICR), extreme WDR
- DIS with built-in Gyro sensor
- Video Analytics (Defocus detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection, Fog detection, Motion detection, Digital auto tracking, PTZ handover)
- Dual SD slots (Maximum total capacity 512GB)
- Modular structure, PoE support
- IP52, IK10
SKU  |
XND-9082RV |
|---|---|
| Features |
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer |
Hanwha Vision |
| NDAA | Compliant |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
101 Feet + |
| Resolution |
3840 X 2160 |
| Lens Type |
Varifocal |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Indoor, Vandal Resistant |
| Voltage |
12vDC, PoE |
| Dimensions (W x H) |
Ø160x125mm(6.30x4.92") |
| Electronic Shutter |
Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Image Device |
1/2.8" CMOS |
| Minimum Scene Illumination |
Color: 0.05Lux(F1.2, 1/30sec), B/W: 0Lux(IR LED On) |
| Operating Humidity |
Less than 95% RH (non condensing) |
| Operating Temperature |
-25°C ~ +60°C (-13°F ~ +140°F) |
| OSD Menu |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption |
PoE: Maximum 12.95W, typical 10.7W; 12VDC: Maximum 11.5W, typical 9.0W |
| Privacy Zone |
32ea, polygonal zones |
| Protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Video Output |
RJ-45 |
| Zoom Ratio |
3x |
| Angle of View |
H: 114°(Wide)~40.2°(Tele) / V: 62.0°(Wide)~22.5°(Tele) / D: 133.0°(Wide)~46.3°(Tele) |
| Rotation Angle | 0Ëš~355Ëš |
| Motion Detection Tracking |
8ea, 8point Polygonal zones |
| Automatic White Balance |
Manual / Indoor / Outdoor |
| IR Distance |
40m/131.23ft |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Flickerless |
Yes |
| Motion Detection Tracking |
Yes |
| On Screen Display Menu |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
