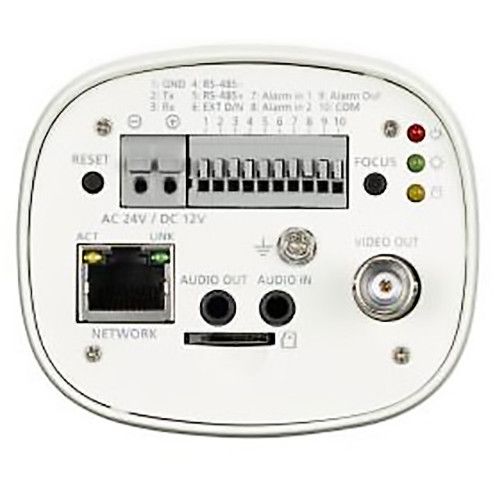

Hanwha Vision SNB-9000 UHD 12 Megapixel 4K Network Camera, No Lens
SKU
SNB-9000
Model No
SNB-9000
$573.35
Product Highlights
- Max. 12M (4000 x 3000) / 8M (3840 x 2160) resolution
- 20fps@4000 x 3000 / 30fps@3840 x 2160
- Simple focus, Day & Night (ICR)
- Intelligent video analytics
- micro SD/SDHC/SDXC memory slot
The SNB-9000 from Hanwha Vision is a 4K UHD 12MP Network Camera (No Lens).
Features
- Max. 12M (4000 x 3000) / 8M (3840 x 2160) resolution
- 20fps@4000 x 3000 / 30fps@3840 x 2160
- Simple focus, Day & Night (ICR)
- Intelligent video analytics
- micro SD/SDHC/SDXC memory slot
- Bi-directional audio support
SKU  |
SNB-9000 |
|---|---|
| Features |
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range, 4K Resolution |
| Manufacturer |
Samsung |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
Non Infrared |
| Resolution |
12 Megapixel |
| Lens Type |
Not Included |
| Mount Type |
Bracket Required |
| Compression Method |
H.264, M-JPEG |
| Durability |
Indoor |
| Voltage |
12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) |
Off / Low / Middle / High |
| Dimensions (W x H) |
78.3 x 67.3 x 130.4mm (3.08" x 2.65" x 5.13") |
| Electronic Shutter |
Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
| Image Device |
1/2.3" 12M CMOS |
| Image Pixels Total | 12megapixel (4,168 x 3,062) |
| Image Pixels-Effective | 4072(H) x 3046(V) |
| Minimum Scene Illumination |
Color : 0.28Lux (1/30sec, F1.2), 0.01Lux (1sec, F1.2), B/W : 0.03Lux (1/30sec, F1.2), 0.001Lux (1sec, F1.2) |
| Operating Humidity |
Less than 90% RH |
| Operating Temperature |
-10°C ~ +55°C (+14°F ~ +131°F) |
| OSD Menu |
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,Croatian, Hungarian, Greek, Norwegian, Finnish |
| Power Consumption |
Max. 12.5W (24V AC, 50 ~ 60Hz), Max. 12W (12V DC), Max. 12W (PoE, Class3) |
| Privacy Zone |
Off / On (32 zones of rectangular) |
| Protocols |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio |
50dB |
| Scanning System |
Progressive |
| Video Output |
CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation BNC type |
| Digital Noise Reduction |
SSNRIII (2D+3D noise filter) (Off / On) |
| Mirror |
Off / On |
| Motion Detection Tracking |
Off / On (4ea 4 points polygonal zones) |
| Back Light Compensation |
Off / BLC / HLC |
| Automatic White Balance |
ATW / AWC / Manual / Indoor / Outdoor / Mecury |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| On Screen Display Menu |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
