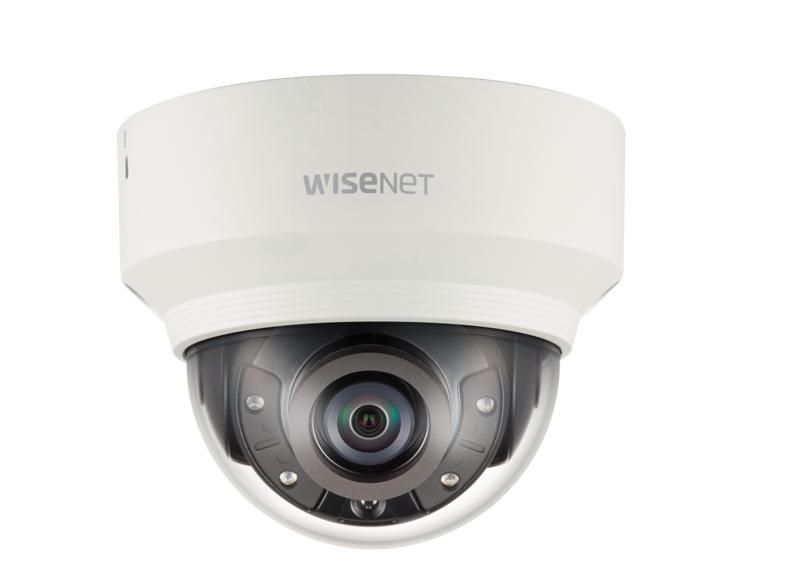

Hanwha Vision XND-6020R 2 Megapixel Network IP IR Dome Camera, 4mm Lens

Name: Hanwha Vision XND-6020R 2 Megapixel Network IP IR Dome Camera, 4mm Lens
Brand: Hanwha Vision
SKU: XND-6020R
Price: 386.63 USD
Availability: InStock

SKU

XND-6020R

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision XND-6020R 2 Megapixel Network IP IR Dome Camera, 4mm Lens XND-6020R by Hanwha Vision

Model No

XND-6020R

$386.63

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

Max. 2megapixel (1920 x 1080) resolution
Built-in 4mm fixed lens
Max. 60fps@all resolutions (H.265/H.264)
IR Viewable length : 30m
H.265, H.264, MJPEG codec supported, Multiple streaming

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

2 Megapixel Network IP IR Dome Camera, 4mm Lens

The XND-6020R from Hanwha Vision is a high-performance 2 megapixel network IP dome camera designed for superior surveillance. With features such as a built-in 4mm lens and advanced motion detection capabilities, this camera ensures clear imaging and reliable monitoring, making it an ideal choice for both residential and commercial security needs.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Mirror

Motion Detection

On Screen Display Menu

Onvif

Privacy Masking

Vandal Resistant

WDR

Camera Features


Built-in 4mm fixed lens	Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
Max. 60fps@all resolutions (H.265/H.264)	Handover, WiseStream II support
H.265, H.264, MJPEG codec supported, Multiple streaming	SD/SDHC/SDXC memory slot (Max. 512GB)
Day & Night (ICR) , WDR (150dB) , Defog

Specifications

SKU	XND-6020R
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range
Manufacturer	Hanwha Vision
NDAA	Compliant
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	61~100 Feet
Resolution	2 Megapixel
Lens Type	Fixed
Lens Size	4mm
Mount Type	Ceiling, Wall
Compression Method	H.265
Durability	Vandal Resistant
Voltage	PoE
Automatic Gain Control (AGC)	Off / Low / Middle / High
Dimensions (W x H)	Ø110xH90mm(Ø4.33" x 3.54")
Electronic Shutter	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Image Device	1/2.8" 2M CMOS
Image Pixels Total	1,945(H) x 1,109(V) 2.16M
Image Pixels-Effective	1,945(H) x 1,097(V) 2.13M
Minimum Scene Illumination	Color : 0.015 lux(F1.4, 1/30sec), B/W : 0Lux(IR LED On)
Operating Humidity	Less than 90% RH
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
OSD Menu	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Power Consumption	Max. 8W (12VDC), Max. 9W (PoE)
Privacy Zone	Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
S/N Ratio	50dB
Scanning System	Progressive Scan
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation, USB : micro USB type B, 1280 x 720 for installation
Digital Noise Reduction	SSNRV (2D+3D noise filter) (Off / On)
Mirror	Off / On, Hallway view : 90?/270?
Angle of View	H: 88.6˚, V:47.5˚, D: 104.8˚
Motion Detection Tracking	Off / On (8ea, 8point polygonal zones), Handover
Back Light Compensation	Off / BLC / HLC (Masking / Dimming), WDR
Automatic White Balance	ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
IR Distance	30m/98.42 ft
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Motion Detection Tracking	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
