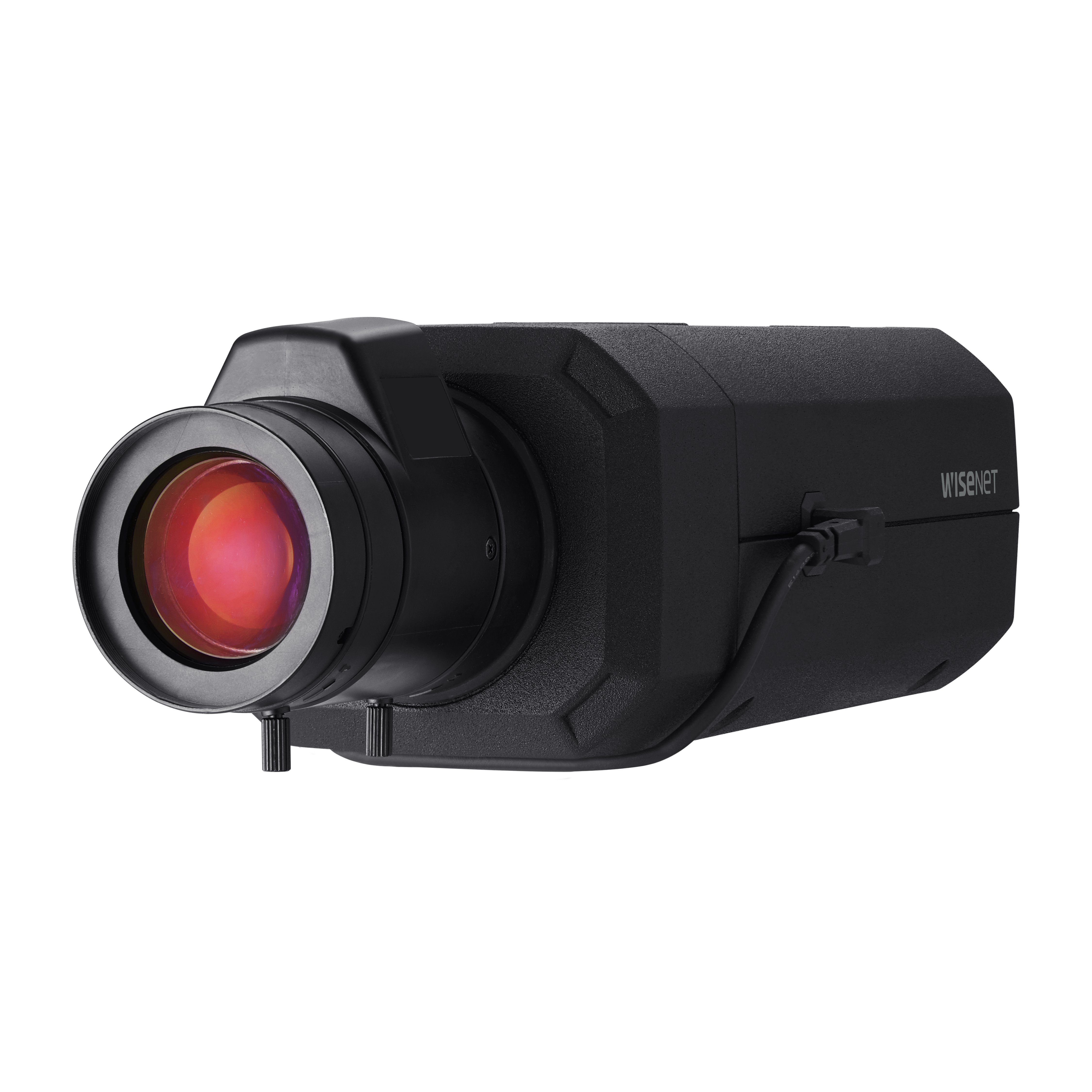

Hanwha Vision XNB-6003 2 Megapixel Indoor Box AI Camera

Name: Hanwha Vision XNB-6003 2 Megapixel Indoor Box AI Camera
Brand: Hanwha Vision
SKU: XNB-6003
Price: 617.50 USD
Availability: InStock

SKU

XNB-6003

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision XNB-6003 2 Megapixel Indoor Box AI Camera XNB-6003 by Hanwha Vision

Model No

XNB-6003

$617.50

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

2MP resolution
Color: 0.007 Lux (F1.2, 1/30sec, 30IRE), BW: 0.0007 Lux (F1.2, 1/30sec, 30IRE)
Maximum 120 fps (H.265/H.264)
Day & Night (ICR), extremeWDR (150dB)
WiseNR(Based on AI engine), WiseStream III(Based on AI engine)

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

2 Megapixel Indoor Box AI Camera

The XNB-6003 from Hanwha Vision is a cutting-edge 2 megapixel indoor box AI camera designed to provide high-resolution surveillance with advanced analytics capabilities. This camera features exceptional low-light performance, high frame rates, and intelligent detection systems, making it an ideal choice for comprehensive indoor security.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Flickerless

Mirror

Motion Detection

ONVIF

Privacy Masking

WDR

Camera Features


2MP resolution	Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
Color: 0.007 Lux (F1.2, 1/30sec, 30IRE), BW: 0.0007 Lux (F1.2, 1/30sec, 30IRE)	IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
Maximum 120 fps (H.265/H.264)	Analytics events: Defocus detection, Motion detection, Tampering, Fog detection
Day & Night (ICR), extremeWDR (150dB)	Audio detection, Sound classification, Shock detection, Appear/Disappear
WiseNR (Based on AI engine), WiseStream III (Based on AI engine)

Specifications

SKU	XNB-6003
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer	Hanwha Vision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	2 Megapixel
Lens Type	Not Included
Mount Type	Bracket Required
Compression Method	H.264, M-JPEG, H.265
Durability	Indoor
Voltage	12vDC, PoE
Automatic Gain Control (AGC)	Support
Dimensions (W x H)	81 (W)x67 (H)x165 (D)mm (3.19x2.64x6.48")
Electronic Shutter	Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine)
Image Device	1/2.8" progressive CMOS
Minimum Scene Illumination	Color: 0.007Lux (F1.2, 1/30sec, 30IRE) B/W : 0.0007Lux (F1.2, 1/30sec, 30IRE)
Operating Humidity	Less than 95%RH (non-condensing)
Operating Temperature	-10 °C ~ 55°C(-14°F ~ +131°F)
Power Consumption	PoE: Max 12.95W, typical 9.8W 12VDC: Max 19W, typical 9.5W
Privacy Zone	32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection Tracking	8ea, 8point Polygonal zones
Back Light Compensation	BLC, HLC, WDR, SSDR
Automatic White Balance	ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Flickerless	Yes
Motion Detection Tracking	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
