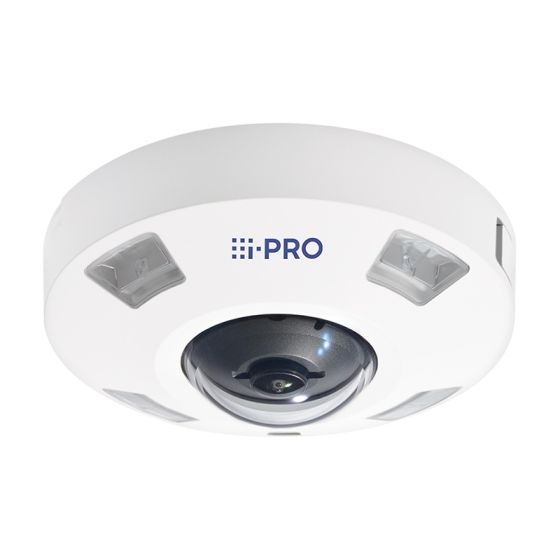

Panasonic WV-S4556LA 5 Megapixel Network Outdoor Security Camera with 0.84 mm Lens
SKU
WV-S4556LA
Model No
WV-S4556LA
$889.87
Product Highlights
- 5MP Outdoor 360-degree fisheye camera
- Up to 3 Edge AI analytic apps
- Built-in IR-LED(14m, 45ft)
- IP66, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors)
Speak to an expert
The WV-S4556LA from Panasonic is a cutting-edge 5 Megapixel outdoor security camera designed to provide comprehensive video surveillance and business intelligence through its advanced features and robust performance.
Panasonic WV-S4556LA Camera Features
- 5MP Outdoor 360-degree fisheye camera: Captures high-resolution images, ensuring clear and detailed footage for better surveillance.
- Up to 3 Edge AI analytic apps: Enables advanced analytics and insights, enhancing security monitoring capabilities.
- Built-in IR-LED (14m, 45ft): Facilitates exceptional low-light performance, allowing for clear images even in total darkness.
- IP66, IK10 certified: Ensures protection against dust, water, and impact, making it suitable for rugged outdoor environments.
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors): Provides enhanced security for data protection, ensuring reliable performance.
- NDAA Compliant: Meets the requirements for secure and trustworthy products, giving peace of mind for regulations compliance.
Detailed Specifications for Panasonic WV-S4556LA
| Camera Type | 5 Megapixel Network Outdoor Security Camera |
| Lens | 0.84 mm Fisheye |
| Video Resolution | 2560 x 1920 pixels |
| Field of View | 360 degrees |
| IR Range | Up to 14m (45ft) |
| Weather Resistance | IP66 Rated |
| Impact Resistance | IK10 Certified |
| Security Certification | FIPS 140-2 Level 3 |
| Compliance | NDAA Compliant |
SKU  | WV-S4556LA |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 0~60 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 0.84mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 48vDC, PoE |
| Dimensions (W x H) | When using the attachment plate : ø154 mm × 60.3 mm (H) {ø6-1/16 inches × 2-3/8 inches (H)} , Dome radius 35 mm {1-3/8 inches} When using the base bracket : ø164 mm × 96.3 mm (H) {ø6-15/32 inches × 3-25/32 inches (H)} , Dome radius 35 mm {1-3/8 inches} |
| Electronic Shutter | max. 16/30s to Max. 1/10000s |
| Image Device | Approx. 1/3 type 5MP CMOS image sensor |
| Minimum Scene Illumination | 0.11 lx (30IRE, F2.4, 1/30s, AGC:11)*, 0.15 lx (50IRE, F2.4, 1/30s, AGC:11), 0.01 lx (50IRE, F2.4, 16/30s, AGC:11) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -40 °C to +50 °C (-40 °F to 122 °F) / Off -40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption | DC12 V 1.03 A, Approx. 12.4 W, DC48 V 260 mA, Approx. 12.5 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Weatherproof | IP66 |
| Angle of View | Horizontal : 186°, Vertical : 186° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC, HLC |
| IR Distance | 14m/45ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
