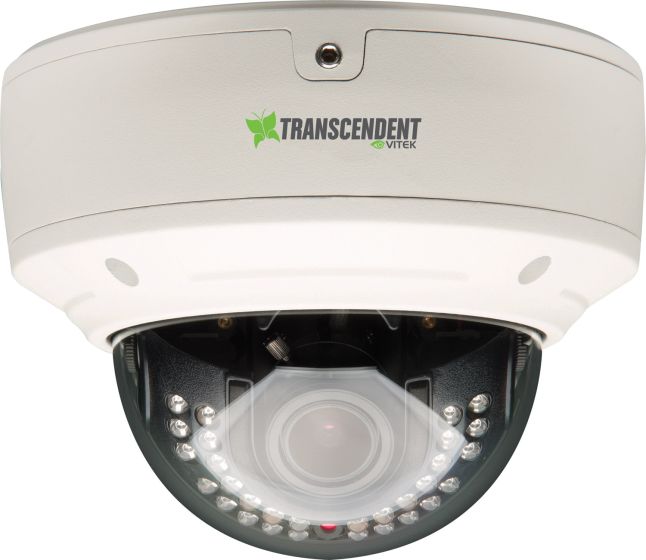

Vitek VTD-THD2RMS 1080p 4-IN-1 HDA IR Indoor/Outdoor Dome Camera, 2.8-12mm Lens
SKU
VTD-THD2RMS
Model No
VTD-THD2RMS
$117.00
Product Highlights
- 1/2.8″ 2.1 Megapixel Progressive Scan CMOS Sensor
- Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
- HD-TVI / AHD / CVI / CVBS (Selectable) Video Output
- 2.8-12mm Motorized Varifocal Lens
- 30 Dynamic Intensity LEDs with 100' IR Range

Speak to an expert
The Vitek VTD-THD2RMS is a state-of-the-art 1080p 4-IN-1 HDA IR indoor/outdoor dome camera that combines cutting-edge technology with exceptional performance. Featuring a versatile 2.8-12mm motorized varifocal lens and advanced Starlight technology, this camera provides enhanced low-light performance and superior image quality. Perfect for both residential and commercial surveillance, it offers easy installation and compatibility with existing coaxial infrastructure for long-distance video transmission.
Vitek VTD-THD2RMS Camera Features
- 1/2.8” 2.1 Megapixel Progressive Scan CMOS Sensor: Ensures high-resolution images for clear video footage.
- Advanced Starlight Technology: Offers dramatically higher sensitivity to light, producing color images in very dark and night scenes.
- HD-TVI / AHD / CVI / CVBS (Selectable) Video Output: Versatile output options ensure compatibility with various systems.
- 2.8-12mm Motorized Varifocal Lens: Allows flexible zoom capabilities for customized field of view.
- 30 Dynamic Intensity LEDs with 100’ IR Range: Ensures visibility in complete darkness for 24/7 monitoring.
- True Wide Dynamic Range (WDR): Balances bright and dark areas of the image for optimal clarity.
- True Mechanical Day/Night function by ICR: Automatically switches for improved performance in various lighting conditions.
- 2D-DNR Noise Reduction: Reduces noise in images for clearer video quality.
- IP66 Weather Resistance: Protects against dust and powerful water jets, suitable for outdoor use.
- IK10 Impact Resistance Rating: Enhances durability, making it resistant to vandalism and impact.
- Supports Up The COAX Control: Allows control via existing coaxial cable for ease of use.
- Over 1500’ HD Video Transmission: Ensures long-distance transmission depending on cable characteristics and integrity.
- Optional Wall Mount & Junction Box Mount Available: Provides installation flexibility for various locations.
- Available in Ivory or Charcoal Gray: Stylish options to match your installation environment.
- 12VDC Operation: Standard power requirement for ease of integration.
Detailed Specifications for Vitek VTD-THD2RMS
| Sensor | 1/2.8” 2.1 Megapixel Progressive Scan CMOS |
| Resolution | 1080p |
| Lens | 2.8-12mm Motorized Varifocal |
| IR Range | 100’ with 30 Dynamic Intensity LEDs |
| Video Output | HD-TVI / AHD / CVI / CVBS (Selectable) |
| Weather Resistance | IP66 |
| Impact Resistance | IK10 |
| Transmission Distance | Over 1500’ |
| Power Supply | 12VDC |
| Mounting Options | Optional Wall Mount (VT-TWM03) & Junction Box Mount (VT-TJB02) |
| Colors Available | Ivory or Charcoal Gray |
| SKU | VTD-THD2RMS |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
| Camera Signal | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/2.8” 2.1 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology |
| Image Pixels-Effective | 1920 x 1080 |
| IR Distance | 30.48m/100ft |
| Minimum Scene Illumination | Color: 0.001 [email protected], AGC ON / B/W: 0 lux (with IR ON) |
| Operating Humidity | 10%~90% Humidity |
| Operating Temperature | -4~122 |
| Dimensions (W x H) | 4.57” x 3.58” (116mm×91mm) Dia x H |
| Power Consumption | IR Off: 120mA / IR On: 480mA |
| S/N Ratio | ≥52dB (AGC Off) |
| Signal System | PAL/NTSC |
| Video Output | HD-TVI / AHD / CVI / CVBS (Selectable) |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D-DNR |
| Automatic White Balance | Auto (AWB) |
| IR LEDs | 30 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
