InVid PAR-ALLDRXIRA27135BD 2688 × 1944 HD-TVI, HD-CVI, HD-AHD, Analog IR Outdoor Dome Camera, 2.7-13.5mm Lens
SKU
PAR-ALLDRXIRA27135BD
Model No
PAR-ALLDRXIRA27135BD
$138.00
Product Highlights
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Motorized Auto-Focus 2.7-13.5mm Lens
- True Day/Night
- D-WDR
- 98' Smart IR Range
Speak to an expert
The PAR-ALLDRXIRA27135BD from InVid is a high-performance outdoor dome camera featuring a resolution of 2688 × 1944, compatible with HD-TVI, HD-CVI, HD-AHD, and Analog formats. With its motorized 2.7-13.5mm lens and impressive 98' IR range, this camera is perfect for capturing clear images in various light conditions while ensuring durability with its IP67 weather resistance and IK10 vandal resistance.
InVid PAR-ALLDRXIRA27135BD Camera Features
- All-in-One Technology: Supports TVI/AHD/CVI/Analog formats for versatile applications.
- Motorized Auto-Focus Lens: 2.7-13.5mm provides flexible focal length for detailed and scalable imaging.
- True Day/Night Functionality: Ensures high-quality imaging in both daylight and low-light conditions.
- D-WDR: Digital Wide Dynamic Range enhances detail in high-contrast scenes.
- Smart IR Range: 98' range with infrared capability allows visibility in complete darkness.
- UTC Functionality: Up The Cable allows for smart adjustments and settings through existing cables.
- IK10 Vandal Resistance: Designed to withstand tough environmental conditions and deter vandalism.
- IP67 Rating: Weather resistant to protect against dust and heavy water exposure.

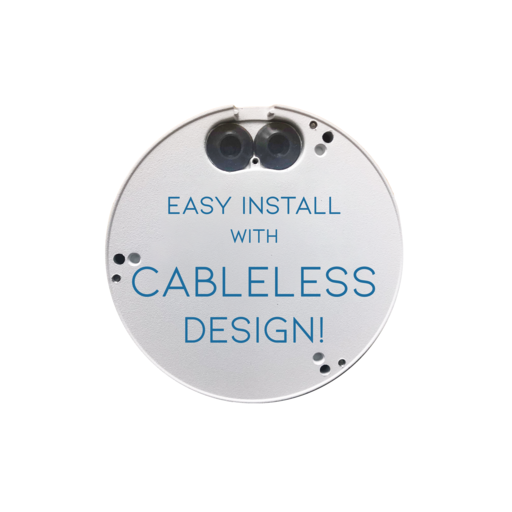

- Internal Built-in Balun and BNC: Simplifies installation without the need for additional camera leads.
- 12vDC Output: Convenient power supply with a maximum of 100mA.
- Dual Voltage Capability: Offers flexibility for different power supply configurations.
- InVid Tech DVR Compatibility: Access to free app and CMS & MAC client for remote management.
InVid PAR-ALLDRXIRA27135BD Detailed Specifications
| Resolution | 2688 × 1944 |
| Lens Type | 2.7-13.5mm Motorized A/F |
| IR Range | 98’ Smart IR |
| Weather Resistance | IP67 |
| Vandal Resistance | IK10 |
| Voltage | Dual Voltage (12vDC Output, 100mA Max) |
| Technology Compatibility | HD-TVI, HD-CVI, HD-AHD, Analog |
| Features | True Day/Night, D-WDR, UTC Function |
| Installation | Internal Built-in Balun & BNC |
| Remote Access | Free App, CMS & MAC Client |
SKU  | PAR-ALLDRXIRA27135BD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Sensor Option | 1/2.7" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC, Dual Voltage |
| Electronic Shutter | NTSC:1/60-1/60,000S PAL:1/50-1/50,000S |
| Image Device | 1/2.7” 5M Progressive Scan CMOS |
| IR Distance | 29.87m/98ft |
| Minimum Scene Illumination | 0Lux (when 4pcs high power LED on) |
| Operating Temperature | -22°F ~ 104°F (-30°+40℃) |
| Dimensions (W x H) | Φ5.96”×4.30” (151.4×109.3mm) |
| Power Consumption | DC12V: 550mA(MAX) / AC24V: 230mA(MAX) |
| S/N Ratio | ≥50dB |
| Scanning System | Progressive |
| Signal System | NTSC, PAL |
| Video Output | TVI/AHD: 5MP @20fps, 4MP @ 30fps CVI: 4MP @30fps CVBS |
| Weatherproof | IP67 |
| Digital Noise Reduction | OFF/ON |
| Automatic White Balance | ATW |
| Auto Gain Control | ON |
| IR LEDs | 4 |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
