Vitek VT-TPTZ4AD-4M Transcendent 4 Megapixel “Mini” 4X IP Auto-Tracking PTZ Camera w/Face Detection & Active Deterrence

SKU
VT-TPTZ4AD-4M
Model No
VT-TPTZ4AD-4M
was $476.00 Special Price $422.22
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • IP66 Ingress Protection + IK10 [Including Glass] Impact Rating
  • 12VDC Power or PoE+ (802.3.at, class 3)
  • Built-in Temp Sensor [Triggers Auto Shut-Down], Heater [auto @ cold start]
  • 1 RJ45 10M/100M Adaptive Ethernet (Supports PoE+ 802.3.at)
  • Numerous Mounting Options and Adapters Available

The Vitek VT-TPTZ4AD-4M Transcendent 4 Megapixel Mini High-Speed PTZ Camera offers advanced surveillance capabilities with its powerful features such as Auto-Tracking, Face Detection, and Active Deterrence. Designed for various environments, this compact PTZ camera ensures high-resolution imaging even in low-light conditions while providing adaptability with its programmable functions and robust design.

Vitek VT-TPTZ4AD-4M Camera Features

  • 1/2.7” Progressive Scan CMOS STARLIGHT Sensor: Delivers high-quality images with enhanced visibility in low light thanks to Backside Illuminated and Near Infrared Technology.
  • Max Resolution: Up to 4 MegaPixel (2560×1440) @ 30fps ensures clear and sharp video quality for detailed surveillance.
  • 4× Optical Zoom: Hi-Speed Pan/Tilt/Zoom functionality with a focal length of 2.8-12mm enables flexible coverage of large areas.
  • Smart IR Technology: Provides infrared illumination up to 165’ (50m), enhancing visibility in complete darkness.
  • Advanced Analytics: Offers features like Intrusion Detection and Face Detection, powered by A.I., improving threat identification.
  • Active Deterrence: Integrates ultra-bright white light and configured audio warnings to proactively engage potential threats.
  • True 120dB WDR: Ensures clear imaging in high-contrast lighting situations, enabling better scene visibility.
  • Robust Protection Rating: IP66 Ingress Protection and IK10 impact rating ensure durability against environmental elements and vandalism.
  • Compatibility: Supports multiple power options including 12VDC and PoE+ (802.3.at), facilitating easy installation in various setups.
  • Built-in MicroSD Card Slot: Allows local recording capabilities up to 256GB, ensuring data storage and accessibility.

Vitek VT-TPTZ4AD-4M Detailed Specifications

FeatureDetail
Sensor Type1/2.7” Progressive Scan CMOS STARLIGHT Sensor
Max Resolution4 MegaPixel (2560×1440) @ 30fps
Optical Zoom4× Optical Zoom Lens (2.8-12mm Focal Length)
IR RangeSmart IR with up to 165’ (50m)
Audio Capabilities1 Ch. Audio In + Out, Built-in Mic + Speaker
Analytics FeaturesIntrusion Detection, Line Crossing, Face Detection, etc.
Protection RatingIP66 Ingress Protection + IK10 Impact Rating
Power Options12VDC Power or PoE+ (802.3.at, class 3)
Local StorageBuilt-in MicroSD Card Slot, supporting up to 256GB
ConstructionCompact Aluminum Alloy + Plastic housing
SKU  VT-TPTZ4AD-4M
Features  Audio, Auto Gain Control, Auto Tracking, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vitek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    4 Megapixel
Lens Type    Motorized Zoom
Lens Size    4X
Mount Type  Pendant
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE

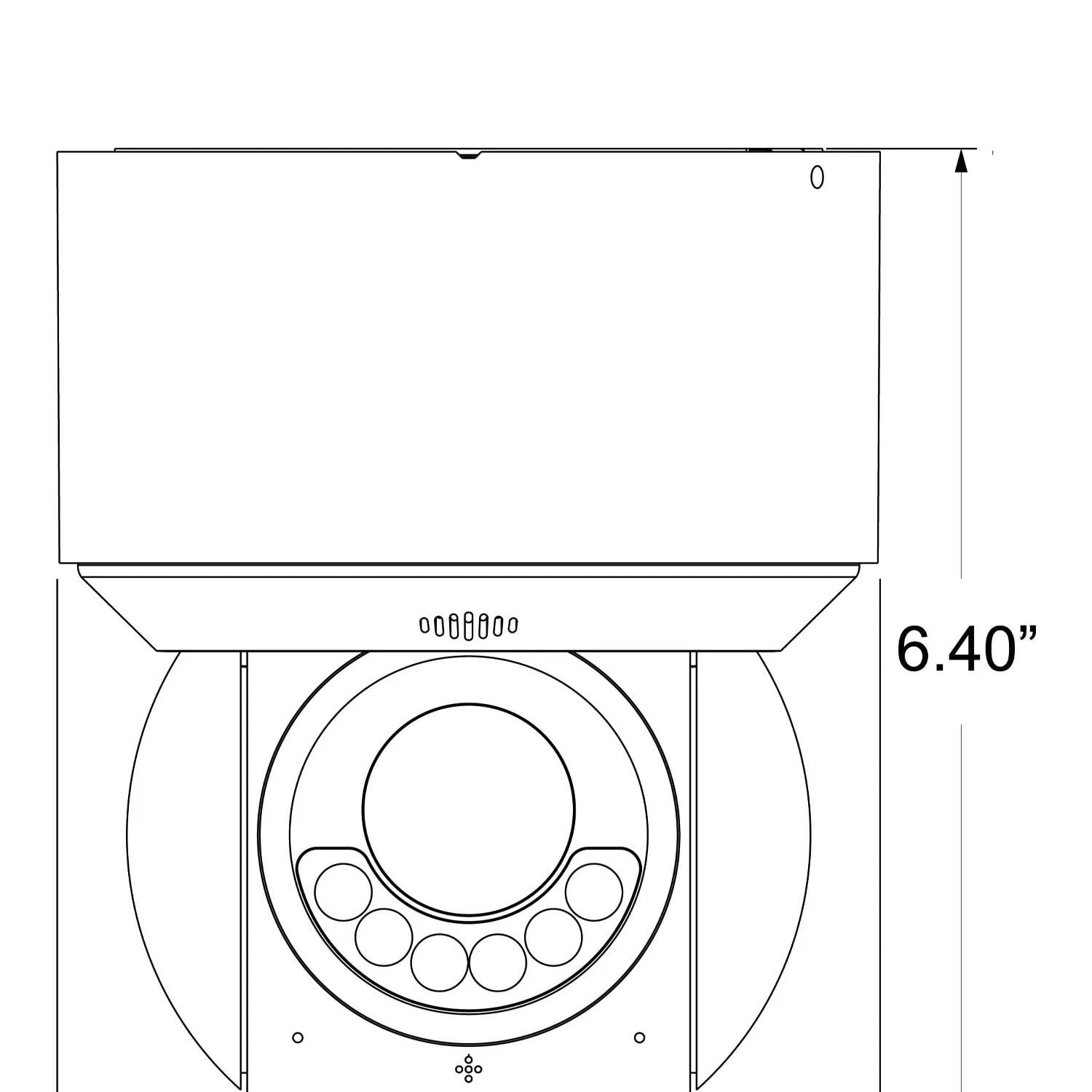

Dimensions (W x H)  Dia x Height 5.12” × 6.40” (130mm × 162.5mm)
Electronic Shutter    60Hz: 1/30s~1/30,000s, 50Hz: 1/25s~1/25,000s
Image Device    1/2.7” Progressive Scan CMOS
Minimum Scene Illumination  Color: 0.01 Lux @ (F1.6 AGC ON), B/W: 0.002 Lux @(F1.6 AGC ON), 0 Lux with IR
Operating Humidity    ≤90%RH
Operating Temperature    -40°F ~ 158°F (-40°C ~ 70°C) IR off, -40°F ~ 140°F IR on, Cold start -13°F (1 hr waiting period),
Protocols  HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
S/N Ratio   ≥52dB
Weatherproof    IP66
Digital Noise Reduction    3D-DNR
IR Distance  50m/165ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
