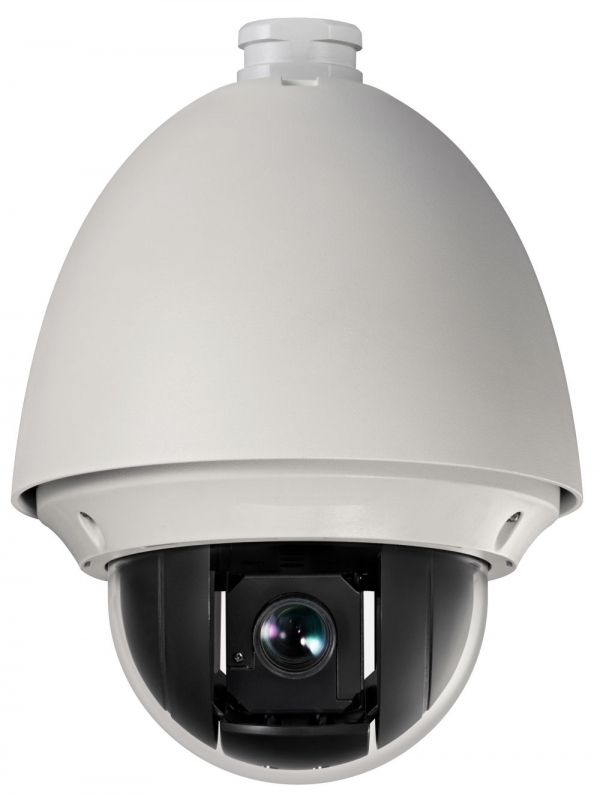

Security Tronix IP-NP112-OD 2 Megapixel Mini PTZ Dome Network Camera
SKU
IP-NP112-OD
Model No
IP-NP112-OD
$454.00
Product Highlights
- High Performance CMOS, up to 1920x1080@30fps Resolution
- ±0.1° Preset Accuracy
- ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical Security Interoperability Alliance), to ensure Greater Interoperability between different Platforms and Compatibility
- 3D Intelligent Positioning Function
- Power-off Memory Function: Restore PTZ & Lens Status after Reboot
Speak to an expert
The Security Tronix IP-NP112-OD is a state-of-the-art 2 Megapixel Mini PTZ Dome Network Camera designed to provide high-quality surveillance with advanced features. Offering exceptional video resolution, precise positioning, and advanced interoperability, this camera is perfect for both residential and commercial security applications, ensuring reliable performance in outdoor settings.
Security Tronix IP-NP112-OD Camera Features
- High Performance CMOS: Delivers stunning video resolution of up to 1920x1080@30fps for crystal-clear images.
- ±0.1° Preset Accuracy: Ensures pinpoint precision in camera positioning for accurate monitoring.
- ONVIF Compatibility: Supports open standards like CGI and PSIA for seamless interoperability with various platforms.
- 3D Intelligent Positioning Function: Enables advanced motion tracking and automated surveillance capabilities.
- Power-off Memory Function: Automatically restores PTZ and lens settings after power loss, ensuring continuous operation.
- IP66 Standard: Rugged design for outdoor use, protecting against dust and rain for reliable performance.
- Impact Protection: Tested to IK08 standards for resistance to mechanical impact, safeguarding the unit from vandalism.
- Power over Ethernet (PoE) Support: Simplifies installation with PoE+ (802.3at) for outdoor and PoE (802.3af) for indoor models.
- Ezviz Cloud P2P Support: Facilitates easy remote access and management via cloud technology.
Detailed Specifications of Security Tronix IP-NP112-OD
| Camera Type | Mini PTZ Dome Network Camera |
| Resolution | 2 Megapixels (1920x1080@30fps) |
| Zoom | Optical 20x (Focus: 4.7-94mm), Digital 16X |
| IP Rating | IP66 (Outdoor Use) |
| Power Supply | 24VAC (included) |
| Mounting Bracket | Not included |
| Interoperability | ONVIF, CGI, PSIA |
| Protection Class | Impact rated up to IK08 |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
SKU  | IP-NP112-OD |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Φ179.4×239.5mm (Φ7.06”×9.43”)(Outdoor) Φ165×179.5mm(Φ6.50”×7.07”) (Indoor) |
| Electronic Shutter | 1/1-1/10,000s |
| Image Device | 1/2.8" Progressive Scan CMOS |
| Image Pixels-Effective | 1920(H) ×1080(V) |
| Minimum Scene Illumination | Color : 0.05 lux (F1.6, 1/30 sec, 50 IRE, AGC On) B/W : 0.01 lux (F1.6, 1/30 sec, 50 IRE, AGC On) |
| Operating Humidity | 90% or less |
| Operating Temperature | -30 °C-65°C(-22°F-149°F)(outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome ) |
| Power Consumption | Max. 18W |
| Privacy Zone | 2 privacy masks programmable |
| Protocols | IPv4/ IPv6 , TCP/IP , HTTP , DHCP , DNS , DDNS , RTP , RTSP , PPPoE , SMTP , NTP , UPnPSNMP , FTP , 802.1X , QoS , HTTPS |
| Weatherproof | IP 66 |
| Angle of View | 58.3-3.2 degree (Wide-Tele) |
| Automatic White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
