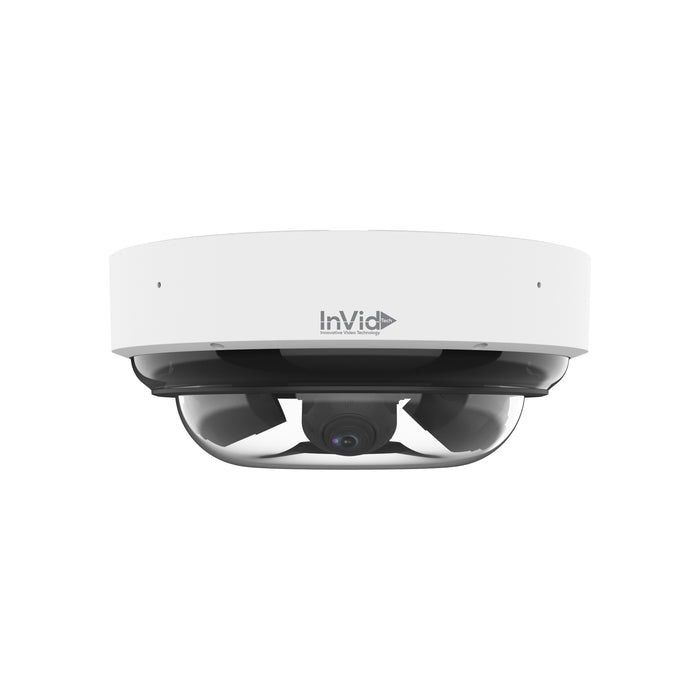

InVid VIS-P20MULTI27135NH-AI 20 Megapixel IP Plug & Play, Outdoor Panoramic Camera with 2.7-13.5mm Lens
SKU
VIS-P20MULTI27135NH-AI
Model No
VIS-P20MULTI27135NH-AI
$2,100.00
Product Highlights
Speak to an expert
The VIS-P20MULTI27135NH-AI from Invid is a state-of-the-art 20-megapixel IP plug & play outdoor panoramic camera designed for exceptional surveillance performance. Featuring advanced AI capabilities, a versatile 2.7-13.5mm manual pan/tilt motorized auto-focus lens, and robust weatherproofing, this camera ensures detailed monitoring for diverse outdoor environments.
InVid VIS-P20MULTI27135NH-AI Camera Features
- True AI: Human & vehicle classification for line crossing & intrusion detection enhances security intelligence.
- 20 Megapixel Resolution: Four times the detail of standard 5 Megapixel cameras ensures crystal-clear imagery.
- Motorized Lens: Manual pan/tilt motorized auto-focus lens (2.7-13.5mm) offers flexible viewing angles.
- Starlight Illumination: Enables high-quality night vision for comprehensive surveillance in low-light conditions.
- 30 FPS Recording: Delivers smooth live streaming and recording, crucial for capturing fast-moving activities.
- Multiple Compression Formats: Supports Ultra 265, H.265, H.264, and MJPEG to maximize storage efficiency without sacrificing quality.
- True WDR: 130dB wide dynamic range ensures clarity in high-contrast lighting scenarios.
- Micro SD Slot: Supports up to 1TB for convenient local storage of video footage.
- Audio Input: Equipped with (2) built-in microphones for capturing sound along with visuals.
- Audio Output: Allows for audio playback and communication through the camera.
- IP67 Weatherproof: Provides reliable performance even in harsh outdoor conditions.
- Power Options: Compatible with 24VAC/24VDC/PoE++ for flexible power supply.
- ONVIF Compliant: Ensures compatibility with various third-party software and devices.
- Mobile Apps: Free iOS & Android apps offer easy access to camera feeds on smartphones and tablets.
- Central Management Software: Complimentary CMS for PC/MAC simplifies video management.
InVid VIS-P20MULTI27135NH-AI Detailed Specifications
| Resolution | 20 Megapixels (4 x 5 Megapixel Lens) |
| Lens | 2.7-13.5mm Manual Pan/Tilt Motorized Auto Focus |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | 30 FPS Recording and Live |
| Wide Dynamic Range | True WDR 130dB |
| IR Range | Up to 164 feet |
| Audio Input | 2 Built-in Microphones |
| Audio Output | Yes |
| Storage Support | Micro SD Slot: Up to 1TB |
| Weatherproofing | IP67 Rated |
| Power Supply | 24VAC/24VDC/PoE++ |
| Mobile App Support | Free iOS & Android Apps |
| Central Management Software | Free CMS for PC/MAC |
SKU  | VIS-P20MULTI27135NH-AI |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 20 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | PoE+, 24vDC, 24vAC |
| Dimensions (W x H) | Φ 12.52” x 5.38” (Φ 318 x 136.6 mm)(Φ x H) |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Image Device | 1/2.7" CMOS |
| Minimum Scene Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
| Operating Humidity | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
| Operating Temperature | 5%~95% RH |
| Privacy Zone | Up to 8 * 4Channel |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH |
| S/N Ratio | >56dB |
| Weatherproof | IP67 |
| Automatic White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| IR Distance | 49m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
