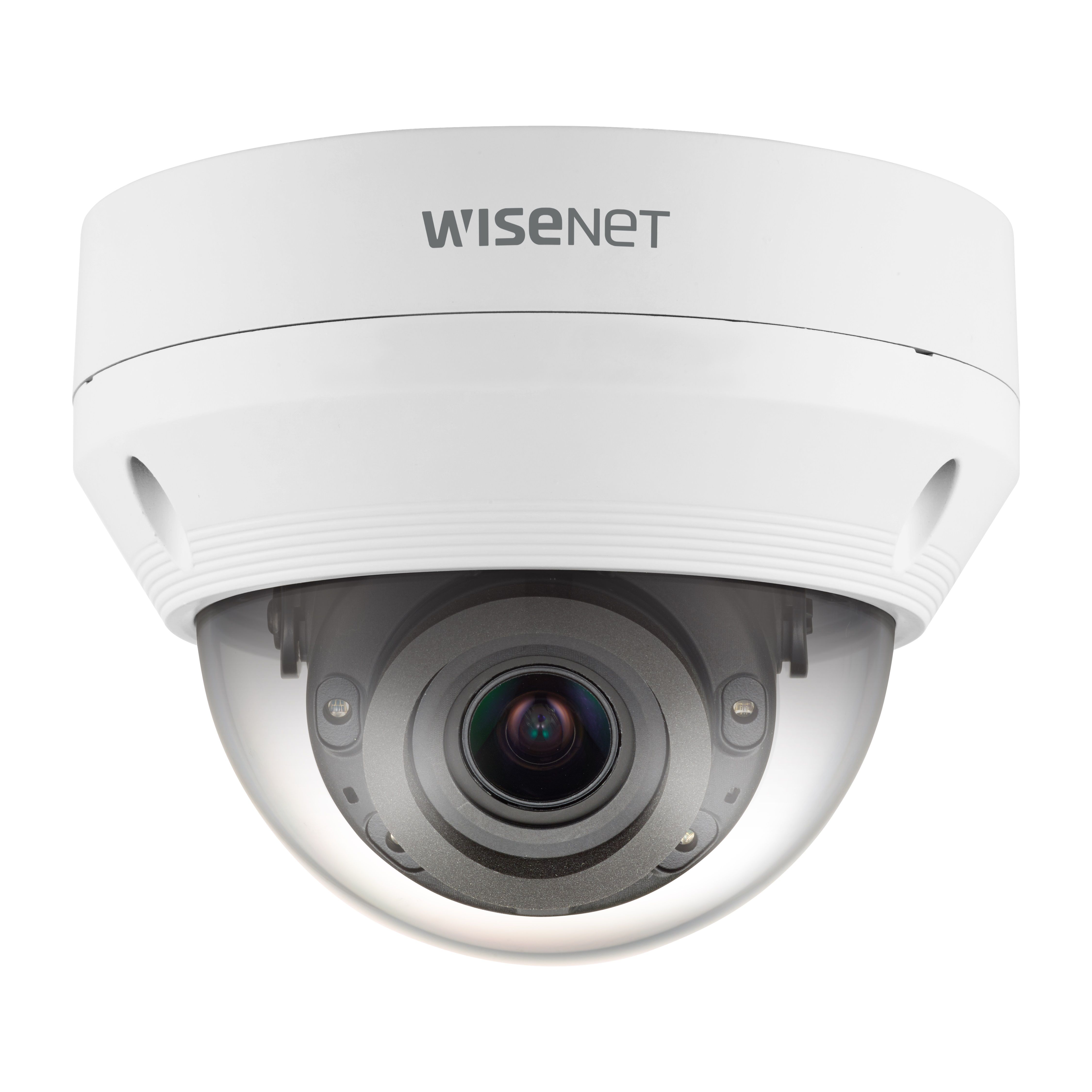

Samsung QNV-7082R 4MP Network IR Vandal Dome Camera, 3.2-10mm Lens
SKU
QNV-7082R
Model No
QNV-7082R
$357.28
Product Highlights
- Max. 4MP resolution, Up to 30fps
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3.2 ~ 10mm (3.1x) motorized varifocal
- IR viewable length: 30m (98.42ft)
- Day & Night (ICR), WDR (120dB)
The QNV-7082R from Samsung is a 4MP network IR vandal dome camera, 3.2-10mm lens.
Features
- Max. 4MP resolution, Up to 30fps
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3.2 ~ 10mm (3.1x) motorized varifocal
- IR viewable length: 30m (98.42ft)
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Motion detection, Tampering, Defocus detection
- Hallway view (90°/270°), LDC support
- Micro SD/SDHC/SDXC memory 1 slot (Max. 128GB)
- IP66, IK10
SKU  |
QNV-7082R |
|---|---|
| Features |
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Hanwha Vision |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
61~100 Feet |
| Resolution |
4 Megapixel |
| Lens Type |
Varifocal |
| Lens Size |
3.2-10mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Vandal Resistant, Weather Resistant |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Low / Middle / High |
| Dimensions (W x H) |
Ø137.0 x 106.1mm (Ø5.39 x 4.18") |
| Electronic Shutter |
Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Image Device |
1/3" CMOS |
| Minimum Scene Illumination |
Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On) |
| Operating Humidity |
Less than 95% RH |
| Operating Temperature |
-40°C~+55°C (-40°F~+131°F) |
| Power Consumption |
PoE: Max 11.4W, typical 8.5W, 12VDC: Max 9.6W, typical 7.2W |
| Privacy Zone |
6ea, rectangular zones |
| Protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Weatherproof |
IP66 |
| Zoom Ratio |
3.1x |
| Digital Noise Reduction |
SSNR |
| Angle of View |
H: 98.6(Wide) ~ 30.8(Tele), V: 52.3(Wide) ~ 17.3(Tele), D: 115.7(Wide) ~ 35.3(Tele) |
| Rotation Angle | 0°~355° |
| Motion Detection Tracking |
4ea, polygonal zones |
| Back Light Compensation |
BLC, WDR, SSDR |
| Automatic White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
| IR Distance |
30m/98.42ft |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
