RVS Systems RVS-770-18 130° 620 TVL Forward Facing Camera, 16' Cable

SKU
RVS-770-18
Model No
RVS-770-18
$117.13
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*

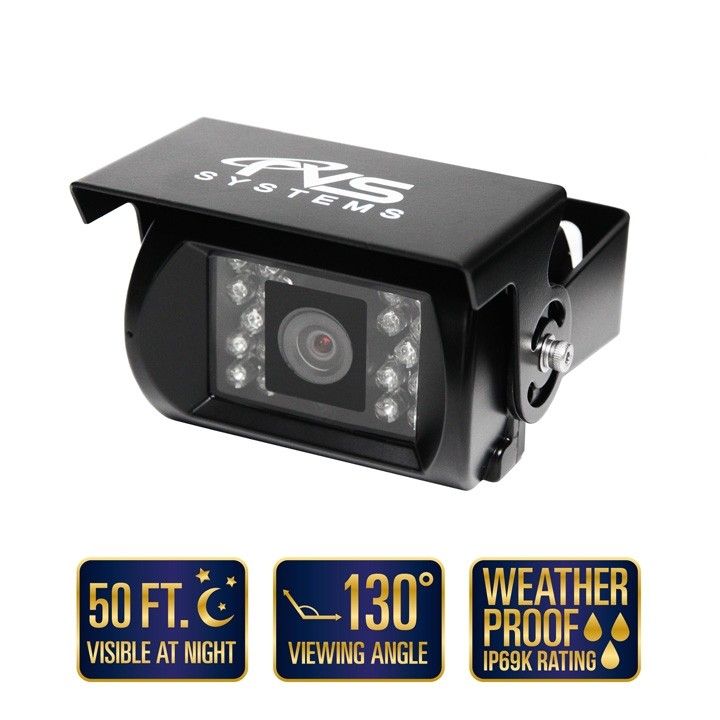

Product Highlights
  • 1/3" Sharp® Color CCD Camera
  • 130° Ultra Wide Viewing Angle
  • 18 Infra-Red Lights - 50ft of Night Vision
  • Completely Waterproof - IP69K Rating
  • Built-In High Gain Mic

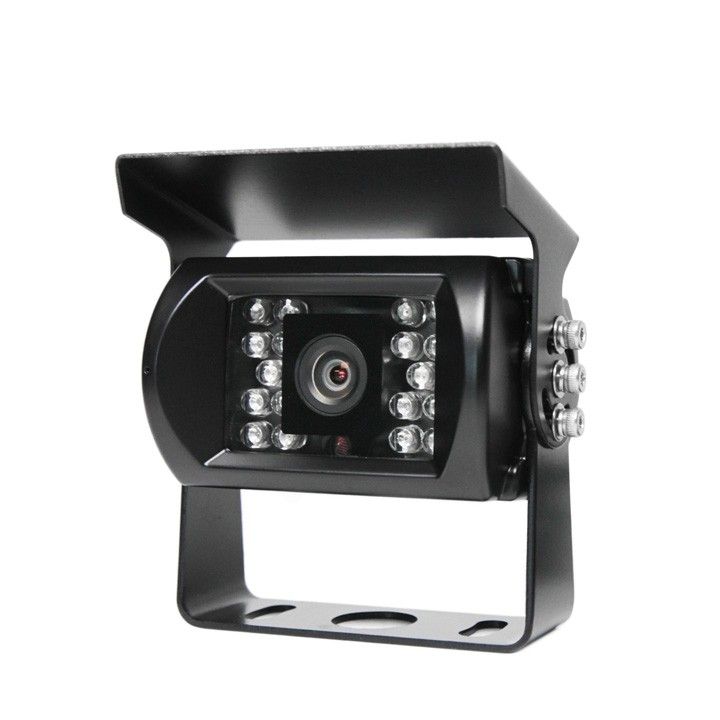

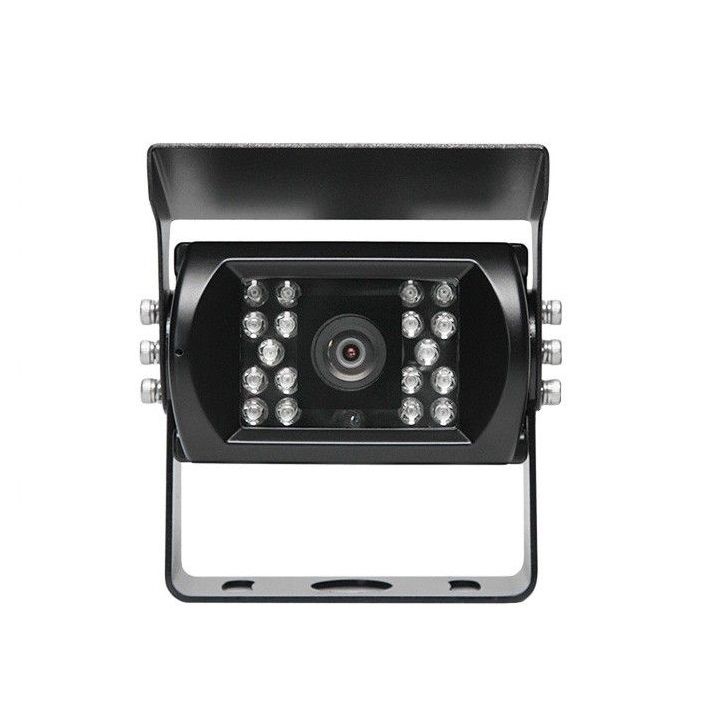

The RVS-770-18 from RVS Systems is a commercial grade backup camera which is the clearest and greatest camera available on the market today. It boasts a 410,000 pixel 2.5 mm lens with 18 infra-red illuminators which enable you to see in total darkness and a built-in microphone which enables you to hear what is behind you. The backup camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant with a 20G vibration and 100G impact rating (highest in the industry). The camera comes with 16' Camera Cable with a double-sided Female Air-Craft Grade Connection.

Features

  • 1/3" Sharp® Color CCD Camera: Delivers superior image quality for enhanced safety while reversing.
  • 130° Ultra Wide Viewing Angle: Provides a broader field of view, reducing blind spots and improving visibility.
  • 18 Infra-Red Lights - 50ft of Night Vision: Enables clear visibility in low light conditions, making it ideal for nighttime use.
  • Completely Waterproof - IP69K Rating: Ensures durability in harsh weather conditions for long-lasting performance.
  • Built-In High Gain Mic: Allows users to hear sounds behind the vehicle, enhancing safety while maneuvering.

RVS Systems RVS-770-18 Detailed Specifications

Camera Type1/3" Sharp® Color CCD
Field of View130° Ultra Wide
Night Vision Capability18 Infra-Red Lights, up to 50ft
Waterproof RatingIP69K
Vibration Rating20G
Impact Resistance100G
MicrophoneBuilt-In High Gain Mic

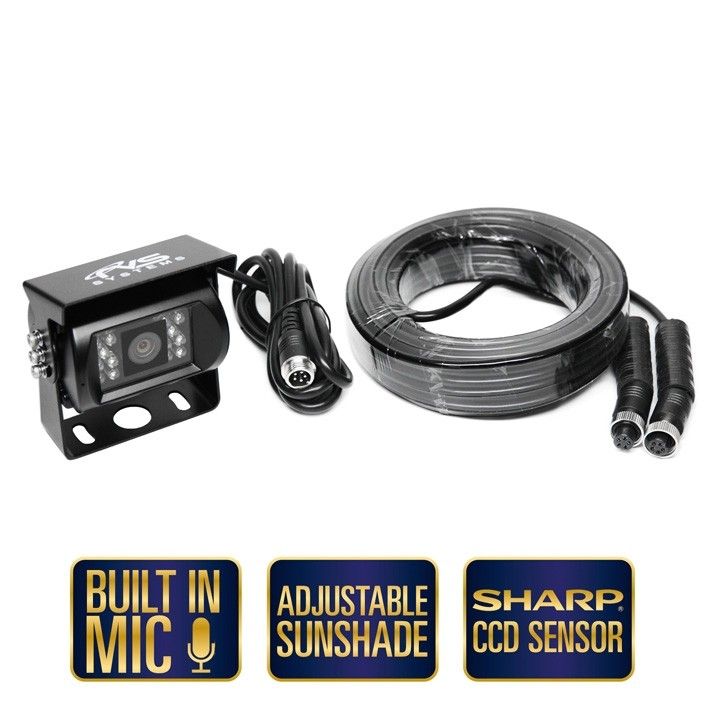

Included Cable Length16' Camera Cable
Connection TypeDouble-sided Female Air-Craft Grade Connection
SKU  RVS-770-18
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C - 70°C

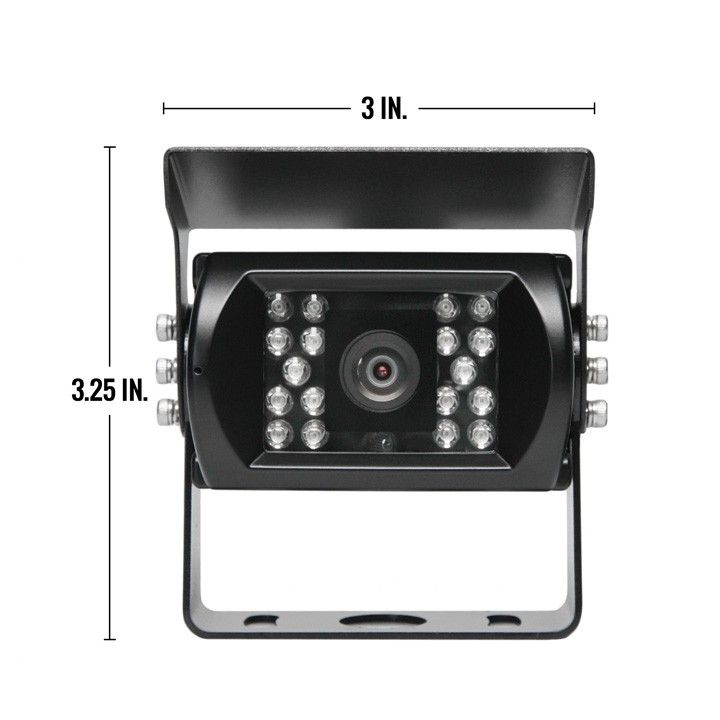

Dimensions (W x H)  3.25" (H) x 3" (L) x 1" (D)
S/N Ratio  More than 48dB
Signal System    PAL / NTSC
Video Output    1Vp.p 75 ohm
Weatherproof    IP69
Synchronization  Internal Synchronization
Angle of View    130°
IR LEDs  18
Auto Gain Control    Yes
