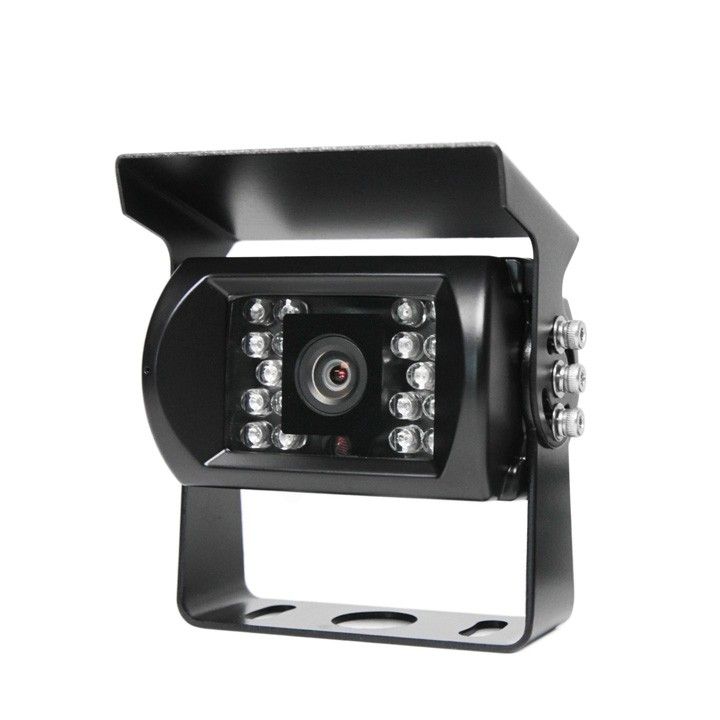

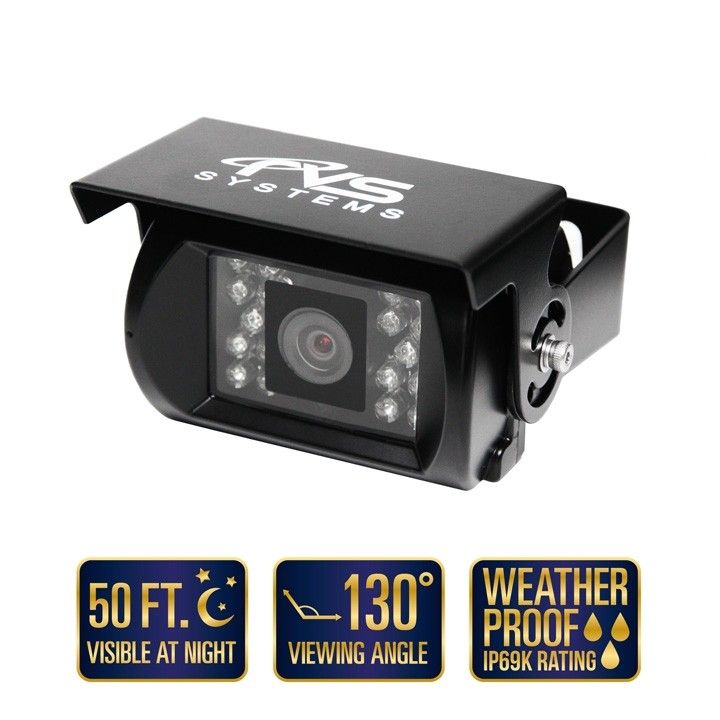

RVS Systems RVS-770-01 130° 620 TVL Backup Camera, 66' Cable

SKU
RVS-770-01
Model No
RVS-770-01
$139.91
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" Sharp® Color CCD Camera
  • 130° Ultra Wide Viewing Angle
  • 18 Infra-Red Lights - 50ft of Night Vision
  • Completely Waterproof - IP69K Rating
  • Built-In High Gain Mic

The RVS-770-01 from RVS Systems is a commercial grade backup camera that provides exceptional clarity and reliability. It features a 410,000 pixel 2.5 mm lens paired with 18 infra-red illuminators for visibility in total darkness. This robust camera is built to withstand harsh conditions with its IP69K weatherproof rating and impressive shock resistance, making it one of the top choices on the market. Equipped with a 66' camera cable and a built-in microphone, this device ensures you have both visual and audio feedback while reversing.

RVS Systems RVS-770-01 Camera Features

  • 1/3" Sharp® Color CCD Camera: Provides vivid and clear images, ensuring high-quality visuals for safe reversing.
  • 130° Ultra Wide Viewing Angle: Expands the field of view, reducing blind spots and enhancing safety while maneuvering.
  • 18 Infra-Red Lights - 50ft of Night Vision: Ensures visibility in complete darkness, making night driving safer.
  • Completely Waterproof - IP69K Rating: Designed to withstand extreme weather conditions, ensuring durability and longevity.
  • Built-In High Gain Mic: Offers audio feedback of the environment behind the vehicle for added awareness while reversing.

Detailed Specifications for RVS Systems RVS-770-01

Camera Type1/3" Sharp® Color CCD
Field of View130° Ultra Wide Angle
Night Vision Capability18 Infra-Red Lights with 50ft Range
Weatherproof RatingIP69K
Audio FeatureBuilt-In High Gain Microphone
Cable Length66 feet with double-sided Female Air-Craft Grade Connection
Shock Resistance20G Vibration and 100G Impact Rating
SKU  RVS-770-01
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C - 70°C

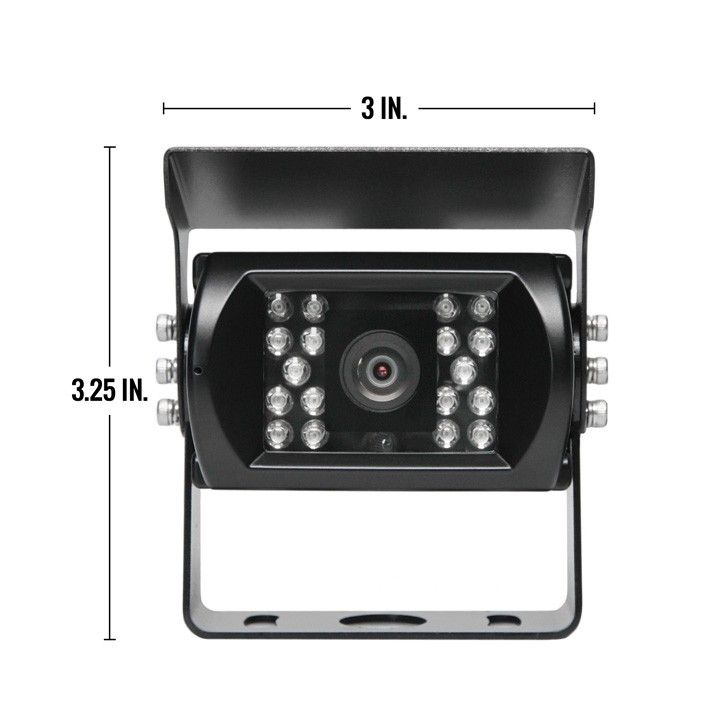

Dimensions (W x H)  3.25" (H) x 3" (L) x 1" (D)
S/N Ratio  More than 48dB
Signal System    PAL / NTSC
Video Output    1Vp.p 75 ohm
Weatherproof    IP69
Synchronization  Internal Synchronization
Angle of View    130°
IR LEDs  18
Auto Gain Control    Yes
