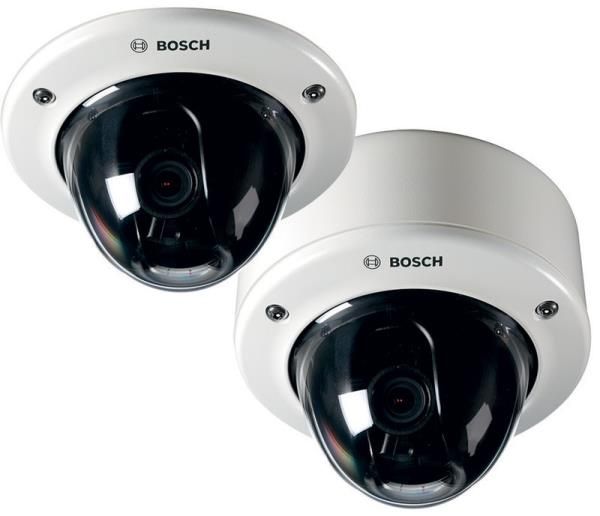

Bosch NIN-63023-A3S 1080p FLEXIDOME IP Dome Camera, 3-9mm Lens, Surface Mount Box
SKU
NIN-63023-A3S
Model No
NIN-63023-A3S
$1,028.00
Product Highlights
- Excellent low-light performance
- Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
- Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
- Extended Dynamic Range mode to see details in bright and dark areas simultaneously
- Easy to install with auto zoom/focus SR lens, wizard and pre-configured modes
Speak to an expert
The NIN-63023-A3S from Bosch is a 1080p FLEXIDOME IP starlight 6000 VR dome camera, featuring a 3-9mm lens and surface mount box. This high-performance IP dome camera is designed for intelligent HD surveillance, excelling in low-light conditions while offering hybrid IP/analog operation capabilities.
Bosch NIN-63023-A3S Camera Features
- Excellent low-light performance: Achieve clear video footage even in minimal lighting, ensuring effective monitoring at all times.
- Built-in Essential Video Analytics: Trigger relevant alerts and quickly retrieve vital data, enhancing security response times.
- Intelligent Dynamic Noise Reduction: Reduce bandwidth and storage needs by up to 50%, saving costs on data management.
- Extended Dynamic Range mode: Allows visibility of details in both brightly lit and dark areas simultaneously, improving overall image clarity.
- Easy installation: Features an auto zoom/focus SR lens, along with a wizard and pre-configured modes for quick setup.
Detailed Specifications for Bosch NIN-63023-A3S
| Camera Type | IP Dome Camera |
| Resolution | 1080p |
| Lens | 3-9mm |
| Video Analytics | Essential Video Analytics |
| Low-Light Capability | Starlight Technology |
| Dynamic Range | Extended Dynamic Range |
| Noise Reduction | Intelligent Dynamic Noise Reduction |
| Installation | Surface Mount with Auto Zoom/Focus SR Lens |
SKU  | NIN-63023-A3S |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 158 x 124 mm (6.22 x 4.89 in) |
| Electronic Shutter | Fixed shutter (1/25[30] to 1/15000) selectable |
| Image Device | 1/2.8-inch CMOS |
| Image Pixels-Effective | 1920 (H) x 1080 (V); 2MP (approx.) |
| Minimum Scene Illumination | Color: 0.0075 lx, Mono: 0.0011 lx |
| Operating Humidity | 5% to 93% relative humidity |
| Operating Temperature | -30 ºC to +55 ºC (-22 ºF to +131 ºF) |
| Power Consumption | 7.2 W max. |
| Privacy Zone | Eight independent areas, fully programmable |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP) |
| S/N Ratio | >50 dB |
| Signal System | NTSC, PAL |
| Video Output | CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm (surge protected) |
| Weatherproof | IP66 |
| Mirror | On / Off |
| Angle of View | Wide: 117º x 59º (H x V) Tele: 37º x 21º (H x V ) |
| Rotation Angle | 90° |
| Back Light Compensation | On/off |
| Automatic White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
