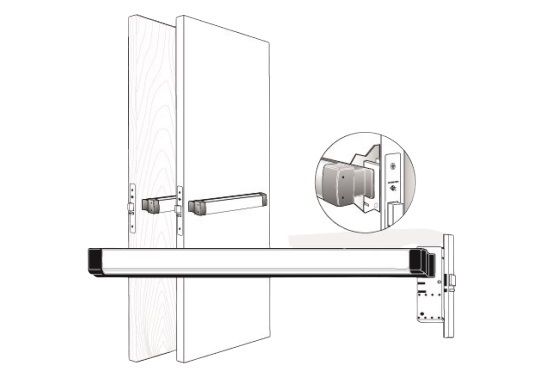

Adams Rite 8310C7142 Life-Safety Mortise Exit Device, 42", Clear Anodized

The 8310C7142 from Adams Rite is a life-safety mortise exit device, 42 inches in Clear Anodized. The 8300 Series Mortise Exit Device is designed for hollow metal and wood applications that require a life-safety exit device with mortise locking solution.

Features

• Clear Anodized Pushbar finish: Provides a sleek and modern appearance, enhancing the aesthetic of your installation.
• Pushbar length: 42 inches: Ideal for easy access and compliance with safety regulations.
• Cylinder Dogging: Keeps the door in the open position, providing convenience in high-traffic areas.
• Life safety: Ensures quick egress in emergencies, prioritizing user safety.
• Stile width: Minimum 5" stile: Designed to fit various door configurations for versatile installation.
• Pushbar made of extruded aluminum, clad or anodized material: Ensures durability and resistance to wear and tear while maintaining a lightweight structure.
• Door thickness: Suits 1-3/4" standard: Can be modified for thicker doors, providing flexibility in applications.
• Projection: 2-5/8" when fully projected, 1-5/8" when dogged: Allows for thoughtful design in case of reduced door space.
• Handed operation - Right hand reverse door: Specifically engineered for optimal operation based on door configuration.
• Heavy duty deadlatching mechanism: Enhances security and prevents unauthorized entry.
• Strong and durable construction: Designed to withstand heavy use while ensuring a high level of security.
• Easy to install: Features a clean and unobtrusive design that simplifies installation processes.
• Grade 1 strength: Meets or exceeds high industry standards for durability and performance.
• Bevel shaped faceplate: Aesthetic design that also assists in smooth operation.
• Standard self-tapping screws fastener: Enables straightforward installation without the need for additional hardware.
• Standard dogging with hex key: Facilitates easy access for maintenance and operation.
• No monitoring switch feature: Simplifies the design while focusing on core functionality.

Adams Rite 8310C7142 Life-Safety Mortise Exit Device Detailed Specifications
