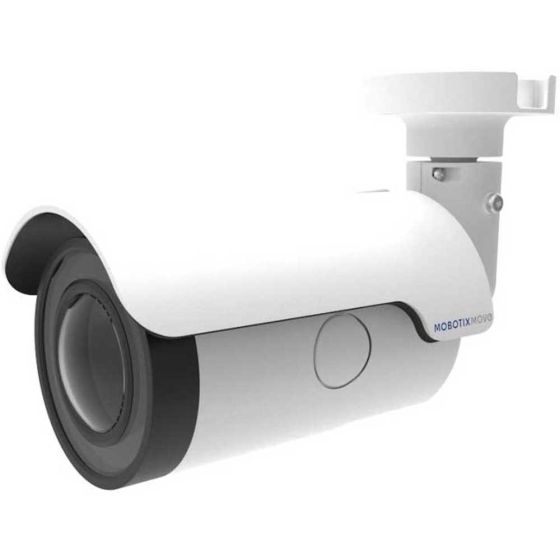

Mobotix Mx-VB2A-5-IR-VA 5 Megapixel Network IR Vandal Bullet Analytics Camera

SKU
Mx-VB2A-5-IR-VA
Model No
Mx-VB2A-5-IR-VA
$909.23
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • EverClear coating of front glass
  • Motorized Remote Zoom & Focus
  • Motorized Vari-Focal Lens 2.7 to 12 mm, F1.6 to F2.9 with One-Push Auto Focus
  • Wide Dynamic Range (WDR) max. 130 dB
  • Mobotix MxMessageSystem communication system

Performant 5MP resolution camera with integrated Video Analytics features for the daily security and surveillance needs. The camera performs fast and reliable auto focus and adapts to different indoor and outdoor scenes.

Features

  • EverClear coating of front glass: Reduces reflections and enhances clarity for improved image quality.
  • Motorized Remote Zoom & Focus: Allows for easy adjustment from a distance for optimal framing of shots.
  • Motorized Vari-Focal Lens 2.7 to 12 mm, F1.6 to F2.9 with One-Push Auto Focus: Provides versatile focal lengths and quick setup, ensuring sharp focus across different scenarios.
  • Wide Dynamic Range (WDR) max. 130 dB: Captures clear images in high contrast lighting conditions, making it ideal for variable lighting environments.
  • Mobotix MxMessageSystem communication system: Facilitates interaction and alerts between users and the camera system for enhanced security responses.
  • Integrated Video Analytics: Automates surveillance tasks and processes, reducing the need for manual monitoring and enhancing security efficiency.
  • Integrated IR LEDs up to 40 m Distance: Enables night vision capabilities for continuous surveillance in complete darkness.
  • ONVIF Profile S/G/T/M support: Ensures compatibility with various third-party software and systems for expanded surveillance options.
  • Triple Power Support (PoE/12 VDC/24 VAC): Offers flexible installation options, making it easier to integrate into existing systems.
  • Extended Temperature Range: –55 to 60°C/–41 to 140°F with activated heater: Ideal for harsh environments, allowing the camera to function reliably in extreme weather conditions.
  • IP66 and IK10: Provides robust protection against dust and impact, ensuring longevity and durability in outdoor settings.

Mobotix Mx-VB2A-5-IR-VA Detailed Specifications

FeatureDetails
Resolution5 Megapixels
Lens TypeMotorized Vari-Focal 2.7 to 12 mm
WDRMax 130 dB
Power SupplyPoE/12 VDC/24 VAC
Temperature Range–55 to 60°C/–41 to 140°F
Protection ClassIP66 / IK10
IR RangeUp to 40 m
AnalyticsIntegrated Video Analytics
CommunicationMobotix MxMessageSystem
ONVIF SupportProfile S/G/T/M
SKU  Mx-VB2A-5-IR-VA
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Mobotix
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    5 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  ø 105x233.8 mm
Electronic Shutter    Manual Mode: WDR: up to 1/67500 s, Linear: up to 1/67500 s, Automatic Mode: Up to 1/10000 s
Image Device    5MP, 1/2.7" Progressive CMOS
Image Pixels-EffectiveH x V = 2720x1976 (5MP)
Minimum Scene Illumination  Color: 0.08 lux, B/W: 0.008 lux
Operating Humidity    10 to 90 % non-condensing
Operating Temperature    –55 to 60 °C/–41 to 140 °F with activated heater
Protocols  iARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2
Weatherproof    IP66
Digital Noise Reduction    2DNR, 3DNR
Angle of View    Horizontal: 102.1° (Wide), 31.5° (Tele), Vertical: 70.3° (Wide), 22.7° (Tele)
IR Distance  40m/131ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
