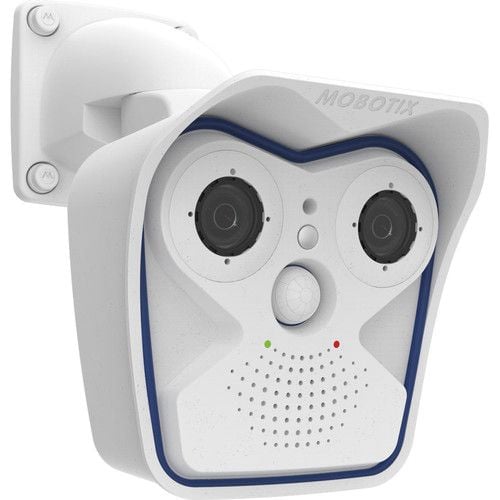

Mobotix Mx-M16B AllroundDual 6 Megapixel Day/Night Outdoor Network Camera Body
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Integrated microphone and speaker
- Integrated shock detector und PIR sensor
- Wall or ceiling mounting (mount included with purchase)
The Mx-M16B from Mobotix is a dual lens security camera with the weather-resistant M16B AllroundDual 6 megapixel outdoor network camera. This outdoor camera body can be combined with one or two day/night sensor modules of your choice (available separately). The sensor modules integrate fixed and varifocal lenses of various focal lengths to fit a variety of applications. The M16B AllroundDual enables you to capture up to 6144 x 2048 resolution video at 6 fps when two sensors are installed, and up to 3072 x 2048 resolution video at up to 12 fps when only one sensor is employed.
The M16B AllroundDual has a built-in microphone and speaker for two-way audio communication, as well as an internal 4GB microSD card for onboard storage of footage. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The camera body is IP66-rated for outdoor use and can be managed remotely via the MxManagementCenter VMS for Windows & Mac systems or via the Mobotix app for iOS devices. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
Features
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Integrated microphone and speaker
- Integrated shock detector und PIR sensor
- Wall or ceiling mounting (mount included with purchase)
- Can be easily installed on a pole with pole mount (accessory)
SKU  |
Mx-M16B |
|---|---|
| Features |
Audio, Auto Gain Control, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer |
Mobotix |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
Non Infrared |
| Resolution |
6 Megapixel |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, MxPEG |
| Durability |
Vandal Resistant, Weather Resistant |
| Voltage |
PoE |
| Dimensions (W x H) |
210 x 158 x 207 mm |
| Image Device |
1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination |
0.1/0.005 (Color), 0.02/0.001 (B/W) |
| Operating Temperature |
-40 to 60°C/-40 to 140°F (cold boot from -30°C/-22°F) |
| Power Consumption |
7.5 watts |
| Protocols |
IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof |
IP66 |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| ONVIF |
Yes |
| Digital Zoom | Yes |
