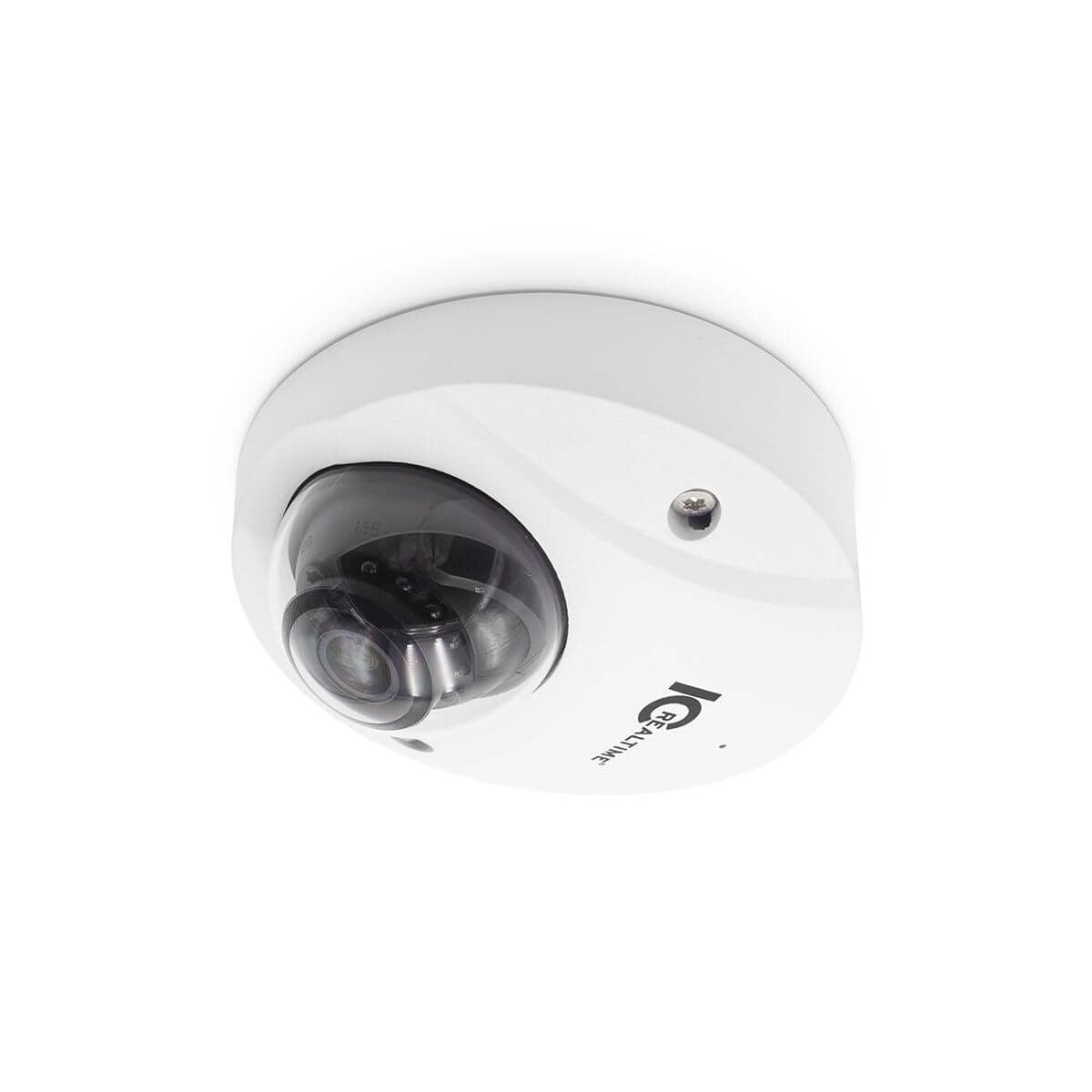

ICRealtime IPMX-W40F-IRW2 4 Megapixel Starlight Mini Wedge Network Camera, 2.8mm Lens
- 1/3” 4 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 30fps @4MP (2688 × 1520)
- WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
- 2.8mm fixed lens, Built-in Mic
The IPMX-W40F-IRW2 from ICRealtime is the newest wedge dome in the Max line of cameras updated with the newest AI features. This small form factor camera adopts a 4MP, 1/3” Megapixel progressive scan CMOS sensor enabling 4 Megapixel video at up to 30FPS. This sensor is paired with a 2.8mm fixed lens, and Starlight supported with IR LEDs capable of illumination up to 164’. The image sensor itself has a strong 120 dB dynamic range, making this dome camera a ‘True WDR’ camera. The camera also supports audio with a built-in mic. The real magic of this camera lies in its new AI (Advanced Intelligence) suite of features, which includes: Intelligent Motion Detect and Perimeter Protection. These features combined with our AI line of recorders provide extra reduction in false positives and efficiency using the search function.
Features
- 1/3” 4 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 30fps @4MP (2688 × 1520)
- Intelligent Motion Detect and Perimeter Protection
- WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
- 2.8mm fixed lens, Built-in Mic
- Starlight support, Max IR LED Length 164 feet
- 256GB Micro SD memory, IP67, IK10, PoE
SKU  |
IPMX-W40F-IRW2 |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
ICRealtime |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
101 Feet + |
| Resolution |
4 Megapixel |
| Lens Type |
Fixed |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Indoor, Vandal Resistant, Weather Resistant |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Auto / Manual |

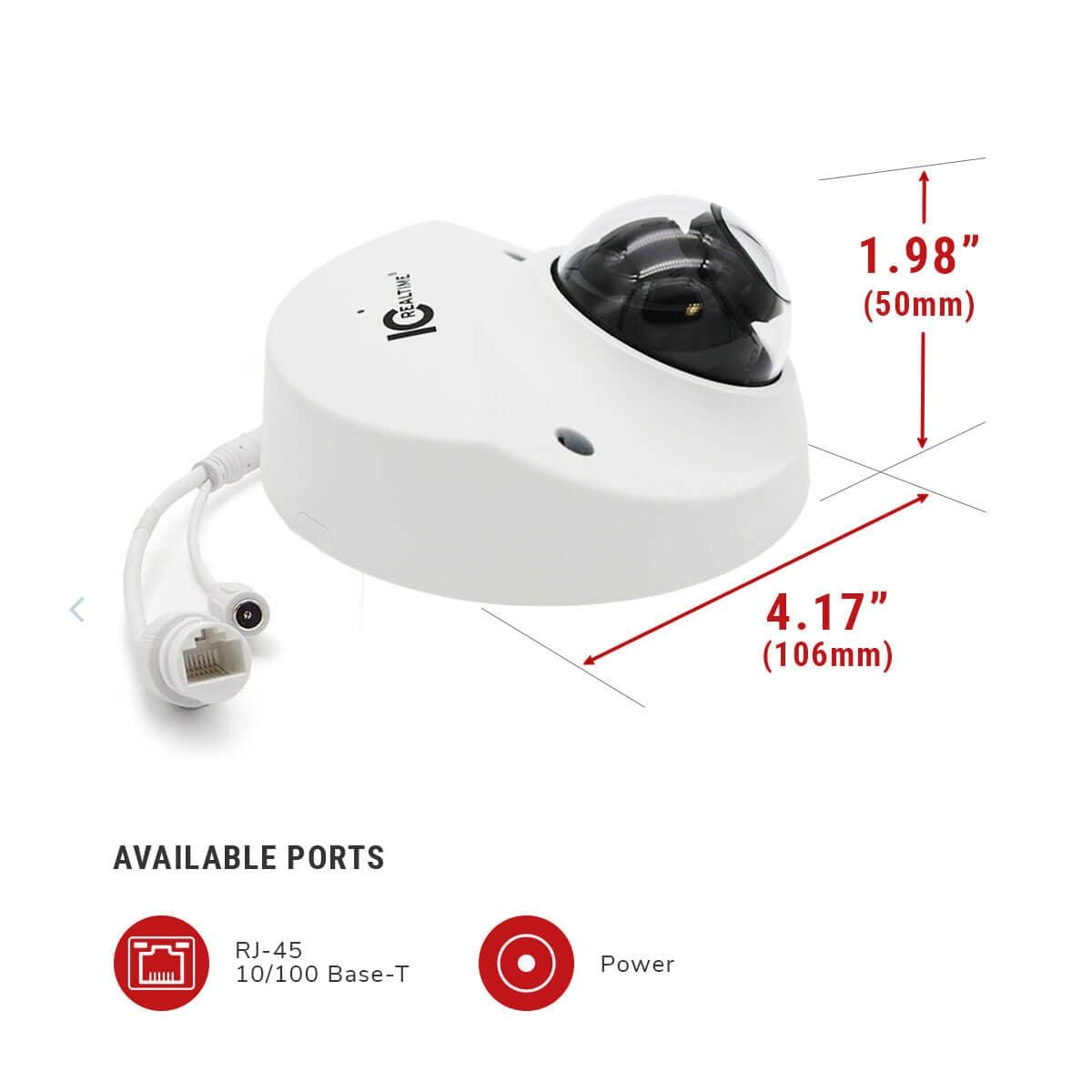

| Dimensions (W x H) |
55 mm × 108.9 mm (2.2" × 4.3”) |
| Electronic Shutter |
Auto/Manual 1/3 s–1/100000 s |
| Image Device |
1/3”4 Megapixel progressive CMOS |
| Image Pixels-Effective | 2688 (H) × 1520 (V) |
| IR LEDs |
8 |
| Minimum Scene Illumination |
0.005 Lux@F1.6 |
| Operating Humidity |
Less than 95% |
| Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Power Consumption |
<5.7W |
| Privacy Zone |
Off / On (4 Area, Rectangle) |
| Protocols |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, N TP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| S/N Ratio |
> 56 dB |
| Scanning System |
Progressive |
| Weatherproof |
IP67 |
| Digital Noise Reduction |
3D DNR |
| Mirror |
Off / On |
| Angle of View |
Horizontal: 103°; vertical: 55° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking |
Off / On (4 Zone, Rectangle) |
| Back Light Compensation |
BLC / HLC / WDR (120dB) |
| Automatic White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance |
50m/164ft |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
