ICRealtime IPMX-D40F-IRW2 4 Megapixel Starlight AI Dome Network Camera, 2.8mm Lens

SKU
IPMX-D40F-IRW2
Model No
IPMX-D40F-IRW2
$552.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4MP 1/3” CMOS image sensor, low illuminance, high image definition
  • H.265 & H.264 triple-stream encoding
  • 30fps@4MP (2688 × 1520)
  • WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • 2.8mm fixed lens

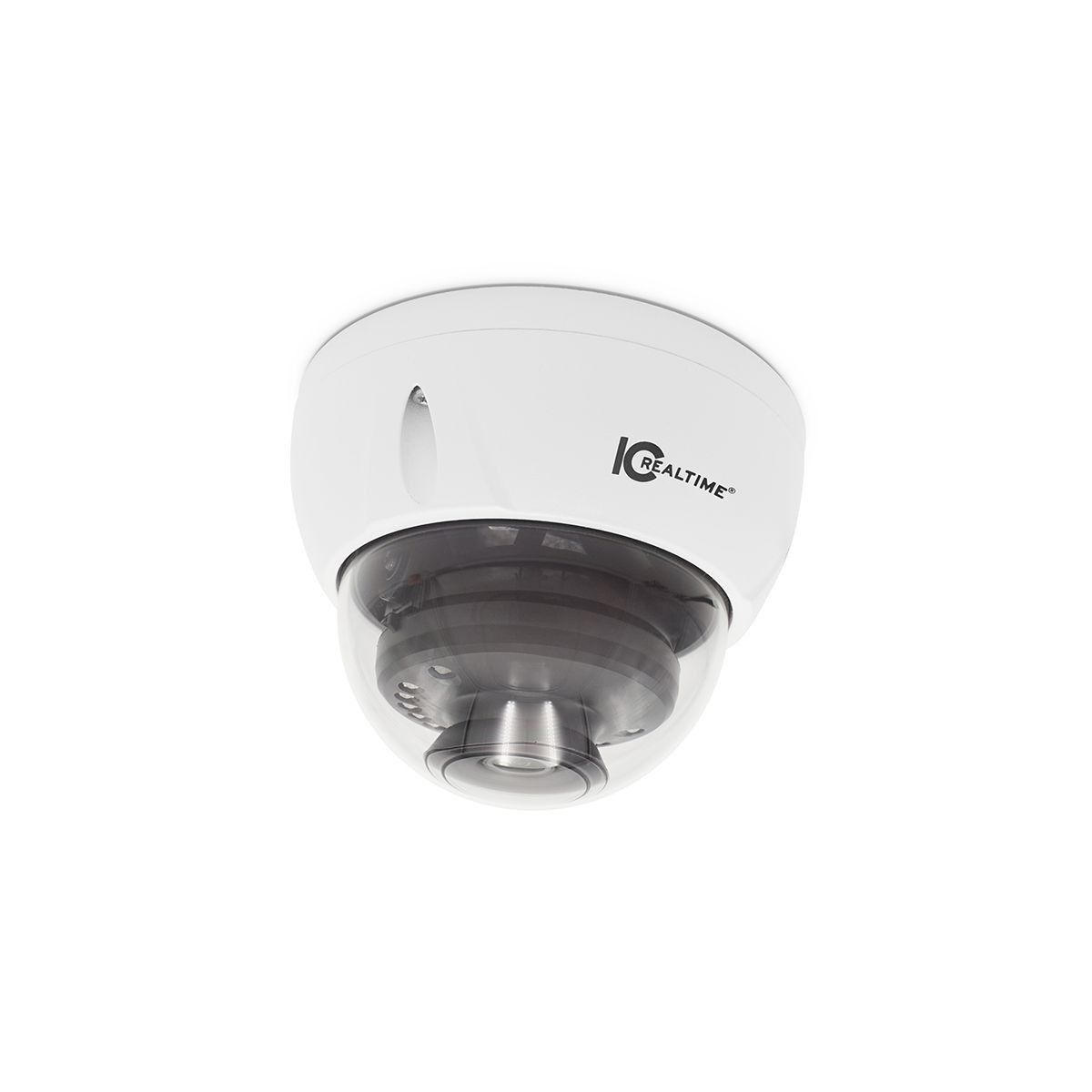

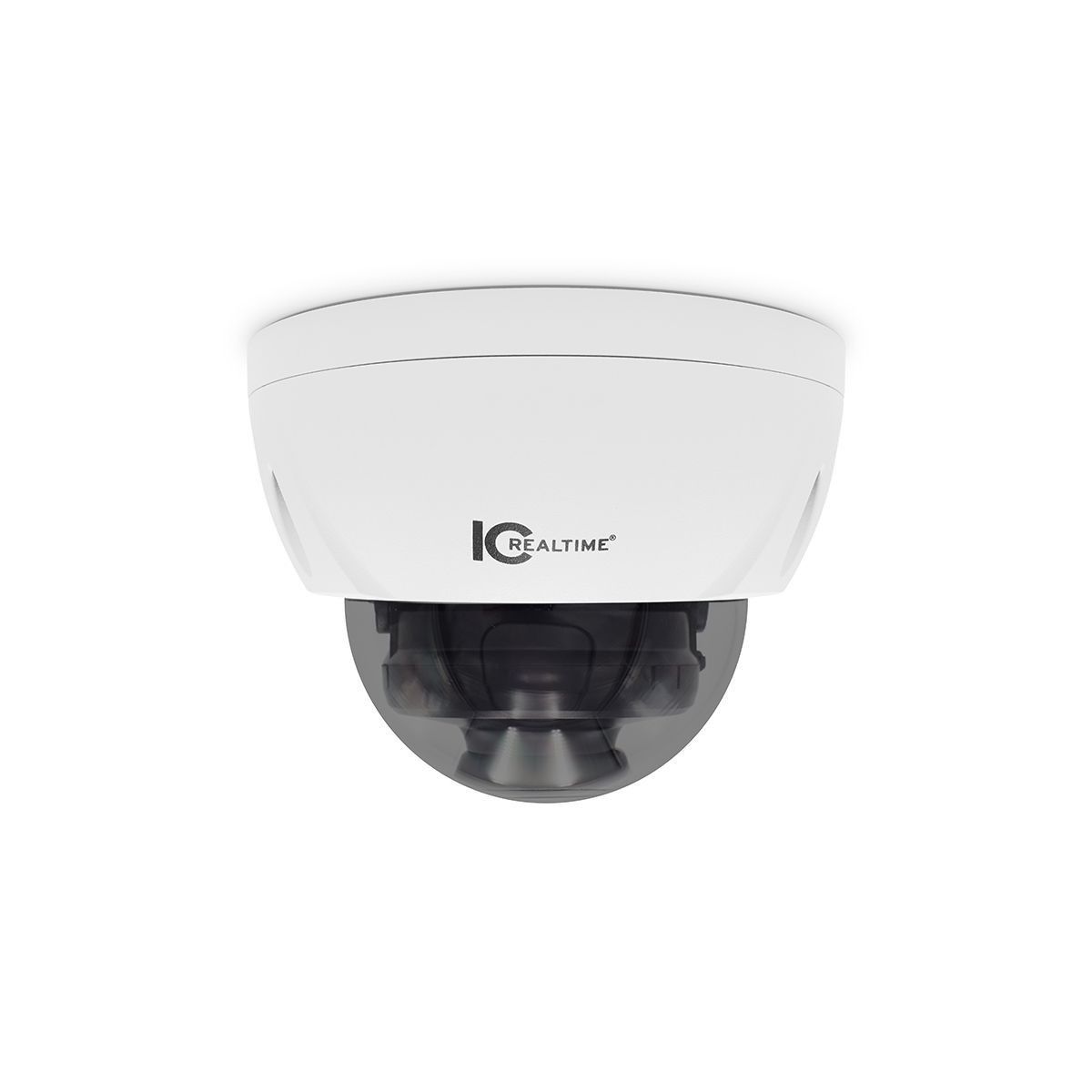

The IPMX-D40F-IRW2 from ICRealtime is a cutting-edge dome camera that boasts a high-resolution 4 Megapixel imaging system, ideal for high-definition video surveillance. Equipped with state-of-the-art features such as Starlight technology for low-light performance, intelligent motion detection, and robust build quality for outdoor use, it ensures top-notch security and reliability in various environments.

ICRealtime IPMX-D40F-IRW2 Camera Features

  • 4MP 1/3″ CMOS image sensor: Delivers low illuminance and high image definition for crystal-clear visuals.
  • H.265 & H.264 triple-stream encoding: Optimizes bandwidth usage while maintaining video quality.
  • 30fps@4MP (2688-1520): Provides smooth video playback without lag, ensuring critical moments are captured without distortion.
  • iMD (Intelligent Motion Detect): Enhances security with accurate detection of human or vehicle objects, minimizing false alarms.
  • WDR (120dB): True Wide Dynamic Range technology captures detail in both bright and dark areas, making it effective in challenging lighting conditions.
  • 2.8mm fixed lens: Offers a wide field of view, perfect for monitoring large areas effectively.
  • 1 Alarm in/out, 1 Audio in/out: Facilitates additional equipment integration for comprehensive surveillance solutions.
  • Starlight support: Ensures high-quality images even in low-light conditions, with Max IR LEDs Length of 164 ft enhancing nighttime visibility.
  • Micro SD memory, IP67, IK10: Provides reliable data storage and durability against environmental conditions, making it suitable for outdoor installations.

Detailed Specifications for ICRealtime IPMX-D40F-IRW2

Image Sensor1/3″ CMOS, 4 Megapixel (2688-1520)
Frame Rate30fps @ 4MP
EncodingH.265 & H.264 triple-stream
Lens2.8mm fixed lens
WDR120dB True WDR
Low Light CapabilityStarlight support with IR LEDs up to 164 ft
Intelligent FeaturesiMD, Perimeter Protection, Tripwire & Intrusion support
Durability RatingIK10 & IP67
Audio/Alarm I/O1/1 Alarm in/out, 1/1 audio in/out
StorageMicro SD memory support
SKU  IPMX-D40F-IRW2
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  ICRealtime
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    4 Megapixel
Lens Type    Fixed
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto / Manual
Dimensions (W x H)  109.9mm×81mm (4.33”×3.19”)
Electronic Shutter    Auto/Manual 1/3 s–1/100000 s
Image Device    1/3” 4 Megapixel progressive scan CMOS
Image Pixels-Effective2688 (H) x 1520 (V)
IR LEDs  3
Minimum Scene Illumination  0.005 [email protected]
Operating Humidity    Less than≤95%
Operating Temperature    -40°C to +60°C (-40°F to +140°F)
Power Consumption  <7.3W
Privacy Zone    Off / On (4 Area, Rectangle)
Protocols  IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, N TP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
S/N Ratio  More than 50dB
Scanning System    Progressive
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Mirror    Off / On
Angle of View    Horizontal: 103°; vertical: 55°; diagonal: 122°
Rotation Angle0°–355°
Motion Detection Tracking    Off / On (4 Zone, Rectangle)
Back Light Compensation  BLC / HLC / WDR (120dB)
Automatic White Balance    Auto/ natural/ street lamp/ outdoor/ manual/ regional custom
IR Distance  50m/164ft
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
