ICRealtime IPMX-W20F-IRW2 2 Megapixel Starlight Mini Wedge Network Camera, 2.8mm Lens
SKU
IPMX-W20F-IRW2
Model No
IPMX-W20F-IRW2
$420.24
Product Highlights
- 1/2.8” 2 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 30fps@2M (1920 × 1080)
- WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
- 2.8mm fixed lens, Built-in Mic
Speak to an expert
The ICRealtime IPMX-W20F-IRW2 is a high-performance 2 Megapixel Starlight Mini Wedge Network Camera designed for versatile surveillance applications. Featuring advanced AI capabilities, this camera excels in low-light environments while providing exceptional video quality. With integrated intelligent motion detection and perimeter protection, you can enhance security while minimizing false alarms. Its compact design and built-in microphone further make it a perfect choice for discreet monitoring.
ICRealtime IPMX-W20F-IRW2 Camera Features
- Image Sensor: 1/2.8″ 2 Megapixel progressive scan CMOS for clear, high-resolution video.
- Video Compression: H.265 & H.264 triple-stream encoding for efficient bandwidth usage and storage.
- Frame Rate: 30fps@2M (1920-1080) ensures smooth video playback and recording.
- Smart Detection: Intelligent Motion Detect and Perimeter Protection for enhanced security and minimal false alerts.
- Wide Dynamic Range: 120dB WDR functionality captures detail in both bright and dark areas.
- Lens Type: 2.8mm fixed lens providing a wide field of view suitable for various environments.
- Audio Features: Built-in microphone for audio surveillance capabilities.
- Low-Light Performance: Starlight support and Max IR LED Length of 164 feet for clear images in darkness.
- Storage Capability: Supports 256GB Micro SD memory for local video storage.
- Durability: IP67 and IK10 ratings ensure protection against water, dust, and vandalism.
- Power Supply: PoE (Power over Ethernet) for easy installation and reduced cable clutter.
ICRealtime IPMX-W20F-IRW2 Detailed Specifications
| Image Sensor | 1/2.8″ 2 Megapixel progressive scan CMOS |
| Video Encoding | H.265 & H.264 triple-stream |
| Resolution | 1920-1080 |
| Frame Rate | 30fps |
| Smart Features | Intelligent Motion Detect, Perimeter Protection |
| WDR | 120dB |
| Lens | 2.8mm fixed lens |
| Audio | Built-in microphone |
| IR Distance | Up to 164 feet |
| Storage Support | 256GB Micro SD |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Power | PoE |
SKU  | IPMX-W20F-IRW2 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ICRealtime |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |

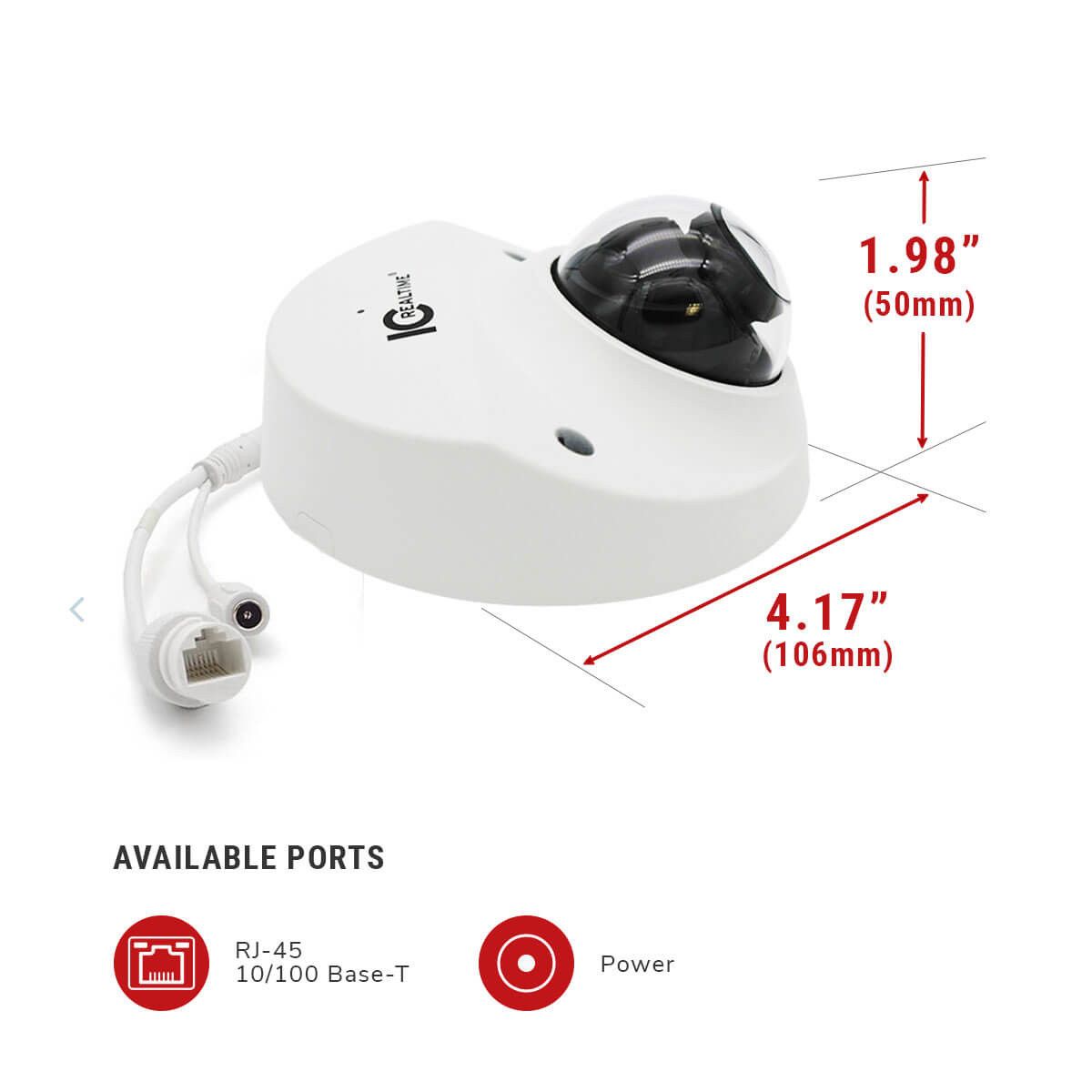

| Dimensions (W x H) | 55 mm × 108.9 mm (2.2" × 4.3”) |
| Electronic Shutter | Auto/Manual 1/3 s–1/100000 s |
| Image Device | 1/2.8” 2 Megapixel progressive scan CMOS |
| Image Pixels-Effective | 1920 (H) x 1080 (V) |
| IR LEDs | 8 |
| Minimum Scene Illumination | 0.002 [email protected] |
| Operating Humidity | Less than 95% |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Consumption | <5.7W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | Pv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, N TP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| S/N Ratio | > 56 dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | Horizontal: 106°; vertical: 57° |
| Rotation Angle | 0˚~360˚ |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR (120dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 50m/164ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
