ICRealtime IPMX-D20F-IRW2 2 Megapixel Starlight Dome Network Camera, 2.8mm Lens
SKU
IPMX-D20F-IRW2
Model No
IPMX-D20F-IRW2
$348.00
Product Highlights
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 dual-stream encoding
- Outputs 2MP (1920 × 1080)@30 fps
- Starlight Support, max IR distance: 164 ft
- Intelligent Motion Detect, IVS Support

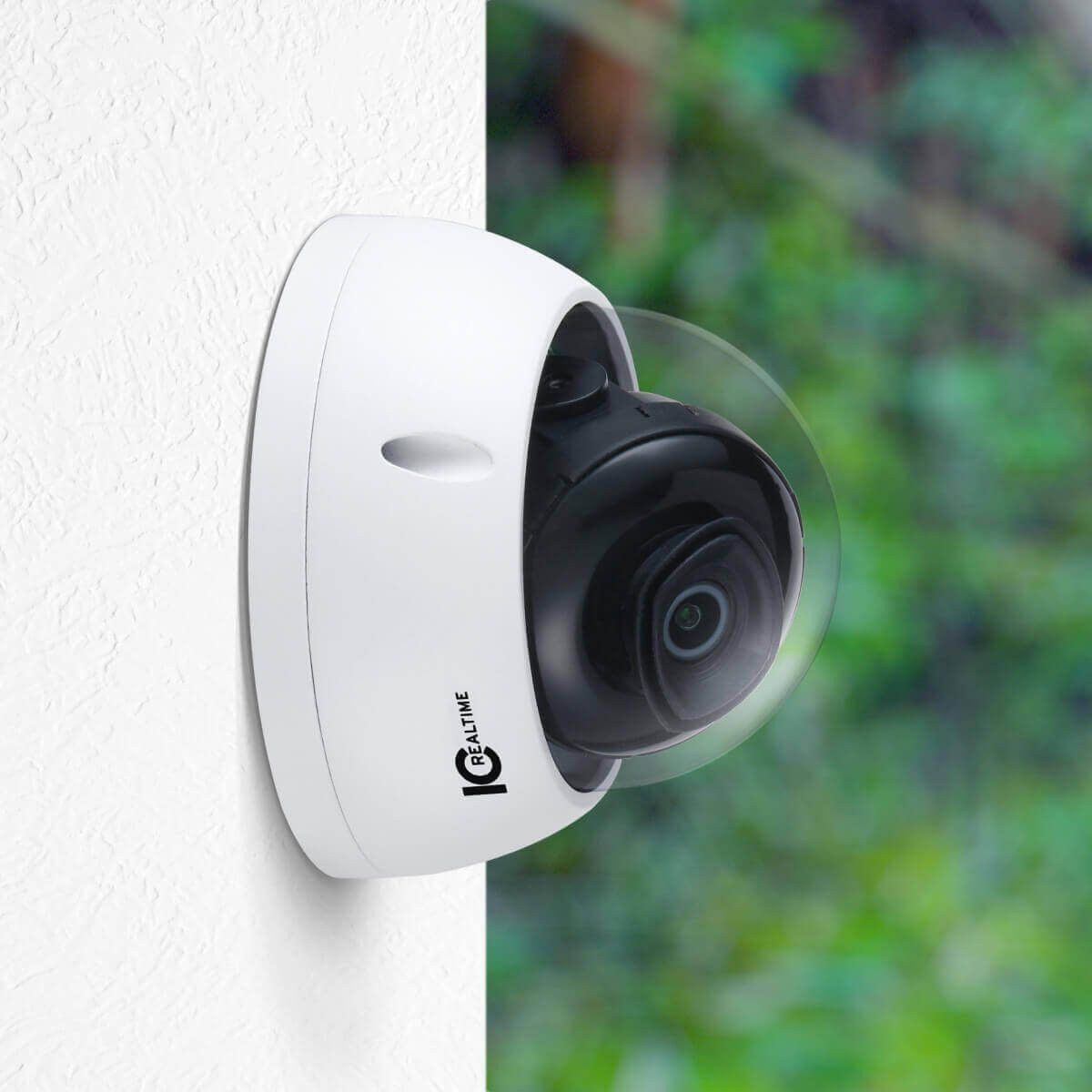

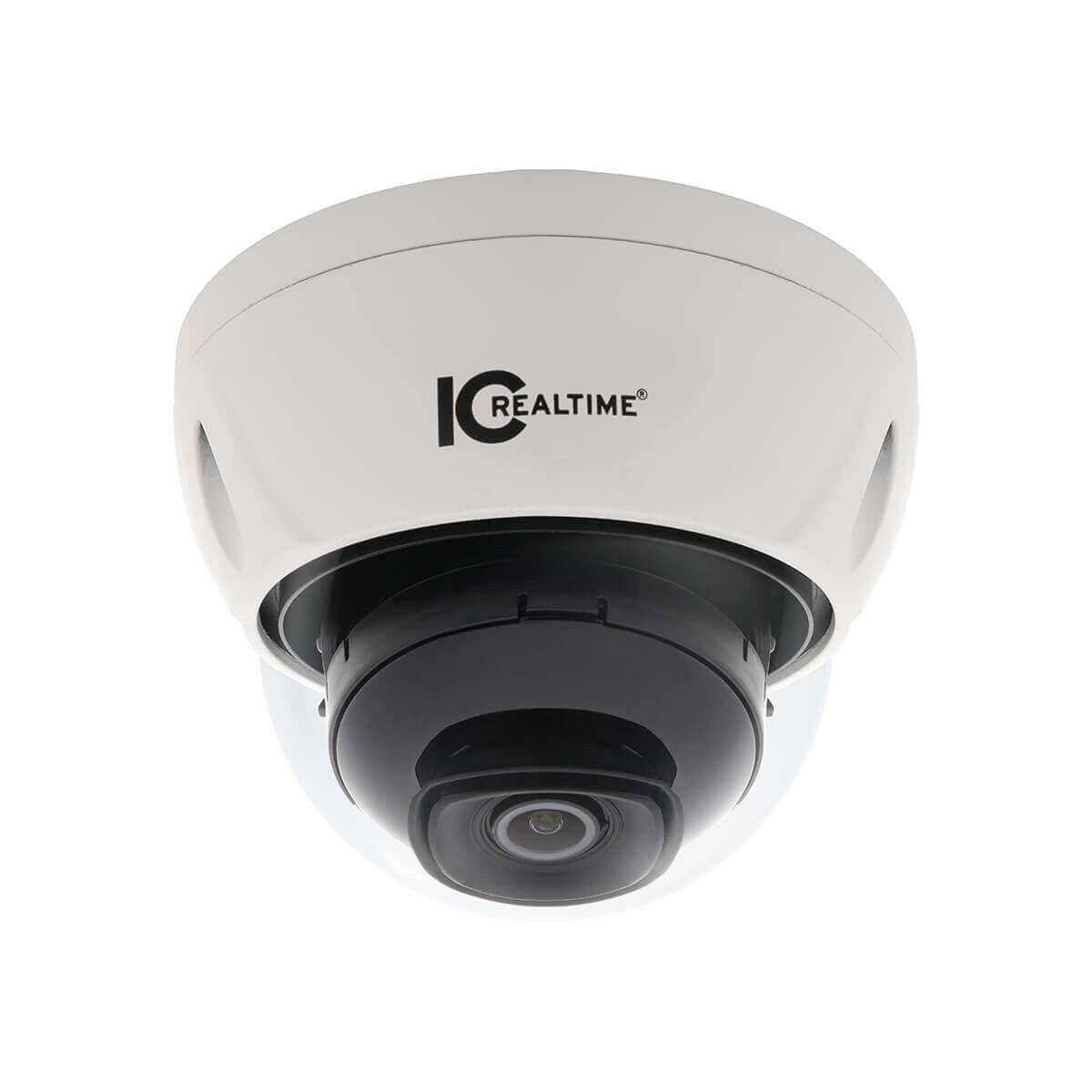

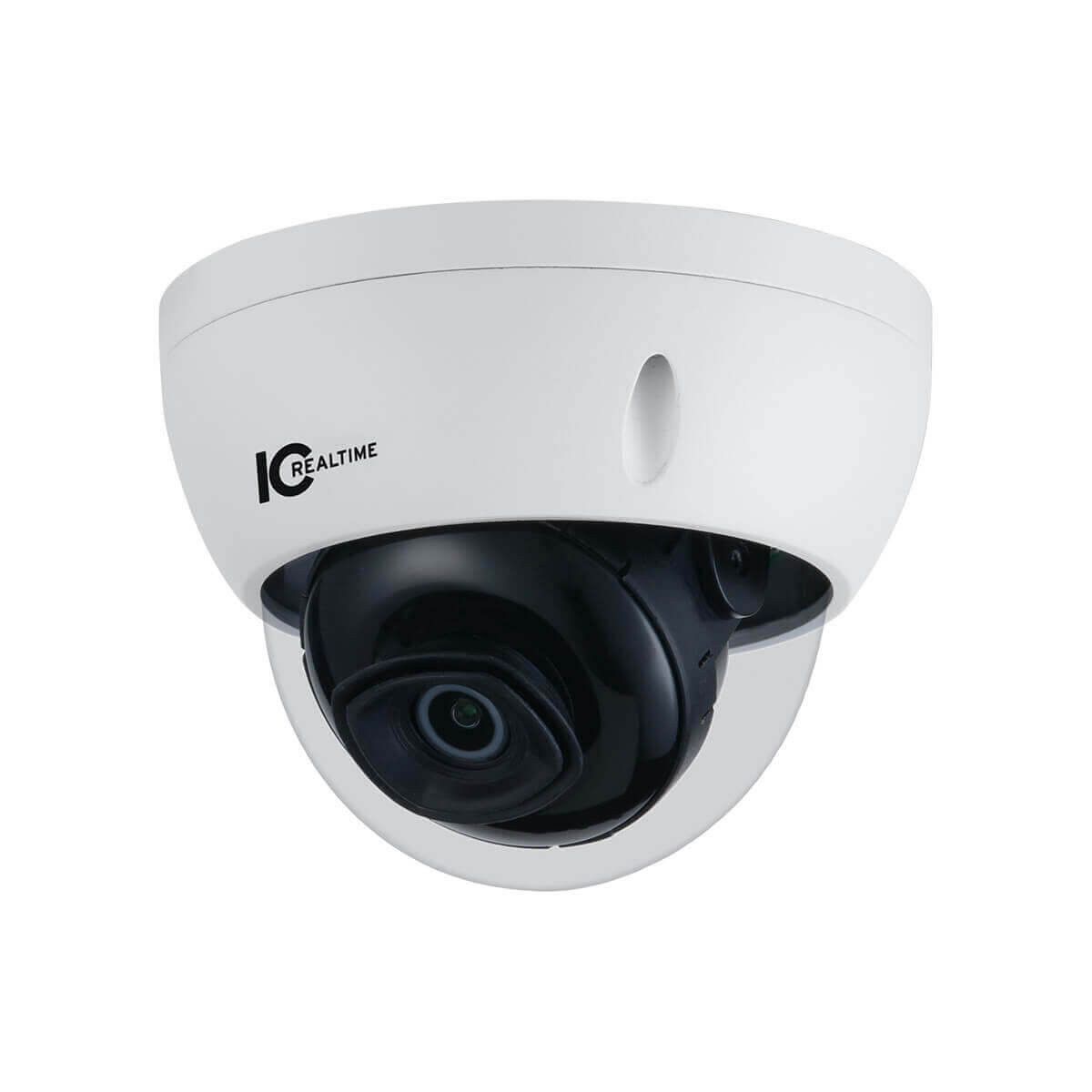

The IPMX-D20F-IRW2 from ICRealtime is a 2MP dome camera featuring our latest generation of 1/2.8” STARVIS CMOS sensors and H.265/H.264 triple-stream encoding. It adopts our vandal proof dome style housing with a 2.8mm fixed lens. This camera also has enhanced night vision due to both Smart IR and Starlight functions with an IR illumination up to ~164’. The additional features include IVS functions for IVS Tripwire, Intrusion as well as Intelligent Motion Detect (iMD). The camera is protected by both IP67 and IK10 ratings and dual powered via PoE or 12V.
Features
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- H.265 & H.264 dual-stream encoding
- Outputs 2MP (1920 × 1080)@30 fps
- Starlight Support, max IR distance: 164 ft
- Intelligent Motion Detect, IVS Support
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
- 12V DC/PoE power support
- IP67, IK10 protection
SKU  |
IPMX-D20F-IRW2 |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
ICRealtime |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
101 Feet + |
| Resolution |
2 Megapixel |
| Lens Type |
Fixed |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Indoor, Vandal Resistant, Weather Resistant |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Auto / Manual |
| Dimensions (W x H) |
81 mm × 109.9 mm (3.2" × 4.3") |
| Electronic Shutter |
Auto/Manual 1/3 s–1/100000 s |
| Image Device |
1/2.8” 2 Megapixel progressive CMOS |
| Image Pixels-Effective | 1920 (H) × 1080 (V) |
| IR LEDs |
3 |
| Minimum Scene Illumination |
0.002 Lux@F1.6 |
| Operating Humidity |
Less than≤95% |
| Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Power Consumption |
<6.9W |
| Privacy Zone |
Off / On (4 Area, Rectangle) |
| Protocols |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, N TP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Scanning System |
Progressive |
| Weatherproof |
IP67 |
| Digital Noise Reduction |
3DNR |
| Mirror |
Off / On |
| Angle of View |
Horizontal: 106°; vertical: 57°; diagonal: 126° |
| Rotation Angle | 0° ~355° |
| Motion Detection Tracking |
Off / On (4 Zone, Rectangle) |
| Back Light Compensation |
BLC / HLC / WDR (120dB) |
| Automatic White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| IR Distance |
50m/164ft |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
