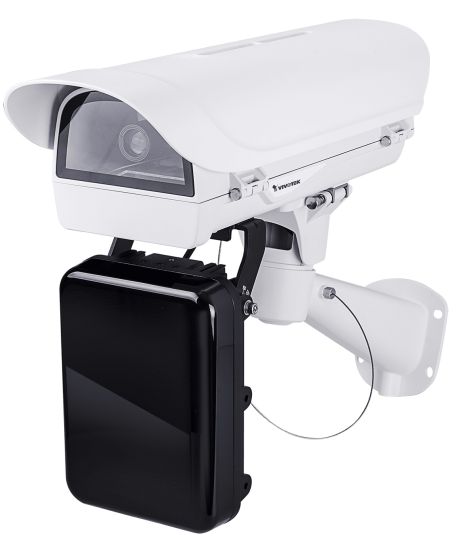

Vivotek IP9172-LPCKIT-H 3 Megapixel Day/Night Outdoor IR License Plate Camera, 12-40mm Lens

SKU
IP9172-LPCKIT-H
Vivotek IP9172-LPCKIT-H 3 Megapixel Day/Night Outdoor IR License Plate Camera, 12-40mm Lens IP9172-LPCKIT-H by Vivotek
Vivotek IP9172-LPCKIT-H 3 Megapixel Day/Night Outdoor IR License Plate Camera, 12-40mm Lens IP9172-LPCKIT-H by Vivotek
Model No
IP9172-LPCKIT-H
$3,600.00
Qty:
Product Highlights
    • Capture Vehicle Speeds of up to 155MPH (250 km/hr)
    • Supreme Anti-Glare Capability
    • Automatic Exposure Bracketing Function (AEB)
    • Deal with Reflective and Non-Reflective License Plates by Single Camera
    • Pre-Assembled LPC Kit for Easy Installation

The IP9172-LPC (Freeway) is a high-performance, network based vehicle imaging system designed to provide clear license plate images for reliable recognition in high-speed traffic applications. Adopting a 3-Megapixel global shutter sensor providing high-resolution images to support a wide range of dual lane scenarios and the built-in corresponding pulse mode IR LEDs, the camera can support a maximum car speed of up to 250kmph with lower power consumption. Employing the unique Auto Exposure Bracketing (AEB) function allows the camera to capture both surrounding and license plate views even at night time. Additionally, the IP9172-LPC is endowed with a 12-40mm focal length remote focus lens. The CaMate IR utilizing CVA Tech provides adjustable beam angles from 20 to 40 degrees for variable distances, enabling the installers to adjust zoom/focus both more precisely and with greater flexibility.

Features

  • Capture Vehicle Speeds of up to 155MPH (250 km/hr)
  • Supreme Anti-Glare Capability
  • Automatic Exposure Bracketing Function (AEB)
  • Deal with Reflective and Non-Reflective License Plates by Single Camera
  • Pre-Assembled LPC Kit for Easy Installation
  • Remote Controllable Lens and IR Illuminator for Low Maintenance
SKU  IP9172-LPCKIT-H
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   61~100 Feet
Resolution   3 Megapixel
Lens Type   Varifocal
Lens Size   12-40mm
Mount Type  Ceiling, Wall
Compression Method   H.264, M-JPEG, H.265
Durability   Vandal Resistant, Weather Resistant
Voltage  24vDC, 24vAC, PoE
Dimensions (W x H)  220 x 160 x 73 mm
Electronic Shutter   1/480 to 1/16,000 sec.
Image Device   1/1.8 Global Shutter CMOS
Operating Humidity   0.9
Operating Temperature   0°C ~ 60°C (32°F ~ 140°F) and -40°C ~ 60°C (-40°F ~ 140°F), with 15W heater on
Power Consumption  Max. 60W, AC/DC 24V (Heater on), Max. 45W, AC/DC 24V (Heater off)
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, SSL
S/N Ratio  56 dB
Weatherproof   IP68
Angle of View   12.3° ~ 35.8 ° (Horizontal), 9.8° ~ 26.3° (Vertical), 15.8° ~ 47.6° (Diagonal)
IR Distance  25m/82.02ft
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Digital Noise Reduction   Yes
Automatic White Balance   Yes
Back Light Compensation   Yes
Privacy Masking   Yes
Wide Dynamic Range   Yes
Mirror   Yes
ONVIF  Yes
Digital Zoom Yes
