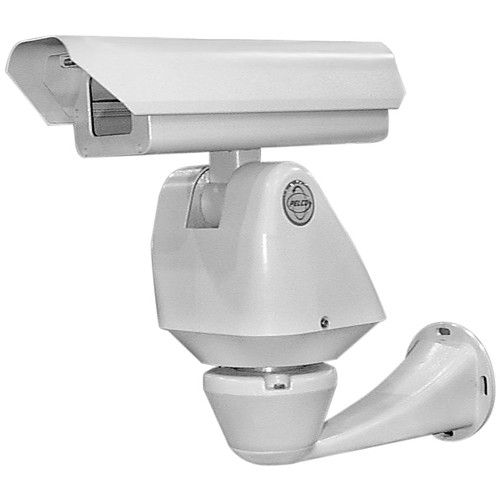

Pelco ES3012-5W Esprit Integrated Positioning System with EWM Wall Mount, 120VAC

The ES3012-5W from Pelco is an Esprit integrated positioning system ingeniously integrates a pan/tilt, enclosure, and receiver into one compact system that is easy to install. On-screen, user-friendly menus also make the system easy to program and operate.

The ES3012 system (standard or ImagePak) has a built-in heater, window defroster/defogger, sun shroud, and insulation blanket. The system is available with an input voltage of 24 VAC or with a selectable power source of 120/230 VAC.

Pelco ES3012-5W Camera Features

• Integrated Receiver, Pan/Tilt, and Housing: This all-in-one design eliminates exposed cabling, enhancing reliability and aesthetics.
• Optional ImagePak Integrated Optics Package: Customizable optics for various surveillance needs improve versatility.
• Quick and Simple Electrical Connections: Facilitate a hassle-free installation process, reducing setup time.
• Variable Speed – Advanced Motor Control Technology: Offers precise movement control for optimal monitoring in varying conditions.
• 360° Continuous Pan Rotation: Provides comprehensive surveillance coverage without blind spots.
• Zone Blanking: Allows for programmable blank zones, ensuring sensitive areas are not recorded.
• Operational in 90 mph Wind Conditions: Durable design withstands high winds, making it suitable for various environments.
• Pan Preset Speed of 100° Per Second: Maintains high performance even under windy conditions.
• Tilt Range of +33° to -83° from Horizontal: Extensive tilt capabilities enhance surveillance flexibility.
• Preset Positioning: Enables quick access to specific viewing angles, improving operational efficiency.
• Minimal Maintenance Design: Engineered without gears, reducing adjustment needs and enhancing longevity.
• Lightweight Aluminum Construction: Ensures strength without adding excess weight for easier mounting.
• Meets NEMA Type 4X and IP66 Standards: Provides protection against dust and water, suitable for harsh environments.
