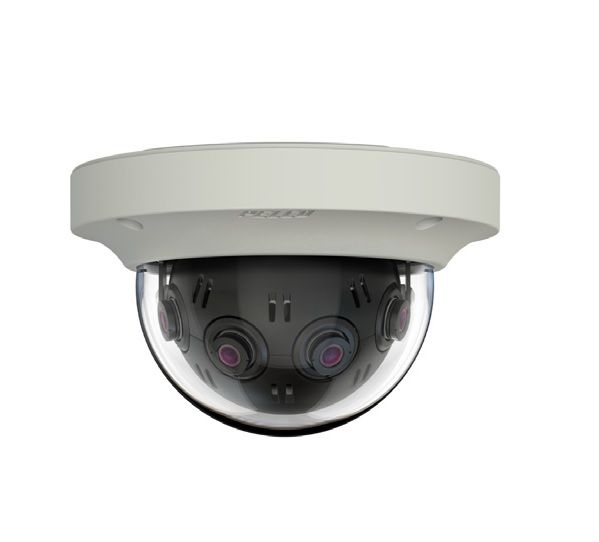

Pelco IMM12018-1EIUS 12 Megapixel 180° Panoramic In-ceiling, Environmental Vandal Network Camera, Gray, US

SKU
IMM12018-1EIUS
Pelco IMM12018-1EIUS 12 Megapixel 180° Panoramic In-ceiling, Environmental Vandal Network Camera, Gray, US IMM12018-1EIUS by Pelco
Pelco IMM12018-1EIUS 12 Megapixel 180° Panoramic In-ceiling, Environmental Vandal Network Camera, Gray, US IMM12018-1EIUS by Pelco
Model No
IMM12018-1EIUS
$1,996.70
Qty:
Product Highlights
    • Constant, seamless situational awareness
    • Zoom in for detail live or retrospectively with client-side dewarping
    • Multiple immersive PTZ views at video management system (VMS)
    • Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
    • Up to 30 frames per second (fps)

The Optera™ IMM Series camera with SureVision™ 2.0 provides a panomersive experience with seamless situational awareness which provides stitched and blended panoramic views. The IMM Series also enables you to zoom in for detail within multiple intuitive immersive views from a video management system (VMS). Other multi-imager solutions can be disjointed with separate streams out of order. The IMM Series transparently integrates video across all sensors in the camera, presenting a seamless user experience from setup to viewing. The IMM Series offers the panomersive experience with outstanding and industry leading image quality with SureVision 2.0 technology. SureVision 2.0 delivers excellent low-light performance and true wide dynamic range (WDR), consistently and simultaneously. With superior WDR, anti-bloom technologies, 3D noise filtering and advanced tone mapping, SureVision 2.0 makes the IMM Series capable of delivering outstanding image quality in very challenging lighting conditions.

The IMM Series provides near real-time capture with a frame rate of up to 12.5 frames per second (fps) at full resolution. This video is presented from the camera in multiple streams that can be encoded in H.264 level 5.1 high profile and constrained variable bit recording (CVBR) for efficient encoding to conserve video storage and bandwidth. The IMM Series features a full suite of eight Pelco video analytics applied across a wide field of view. Pelco behaviors include Abandoned Object, Adaptive Motion Detection, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, and Stopped Vehicle. These behaviors enable operators to focus quickly on events and areas of interest. The IMM Series is designed with Power over Ethernet Plus (PoE+) to simplify planning, wiring, and installation. PoE+ works with PoE+ enabled network switches or power injectors. PoE+ eliminates separate power supplies, cabling, and increases camera availability through an uninterruptable power supply (UPS).

Features

  • Constant, seamless situational awareness
  • Zoom in for detail live or retrospectively with client-side dewarping
  • Multiple immersive PTZ views at video management system (VMS)
  • Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
  • Up to 30 frames per second (fps)
  • Outstanding WDR and low-light performance at the same time
  • Pelco H.264 Smart Compression Technology
  • 8 Pelco video analytic behaviors
  • Local storage (Micro SD)
  • ONVIF Profile S and Profile G conformant
  • Compatible with Pelco VideoXpert™, Digital Sentry®, and third-party VMS partners
  • Power over Ethernet Plus (PoE+)
  • Single Back Box for Suspended or Hard Ceiling Applications
  • Requires 8.26 cm (3.25 in.) Space Above Ceiling
  • Minimum Ceiling Thickness 0.97 cm (0.38 in.); Maximum Ceiling Thickness 4.45 cm (1.75 in.)
  • 3/4 in. NPT or 25 mm Conduit Attachments on Side and Top of Back Box
  • Meets IP66 and NEMA Type 4X
  • Plenum Rated Back Box
  • Alodine Aluminum Construction Meets IK10
  • Light Gray Finish
    SKU  IMM12018-1EIUS
    Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
    Manufacturer  Pelco
    NDAA Compliant
    Camera Signal    Network IP
    Connection Type  Wired
    Infrared Distance   Non Infrared
    Resolution   12 Megapixel
    Lens Type   Fixed
    Mount Type  Ceiling, Wall
    Compression Method   H.264, M-JPEG
    Durability   Vandal Resistant, Weather Resistant
    Voltage  PoE
    Image Device   1/3.2-inch Progressive scan CMOS
    Minimum Scene Illumination  Color (33 ms): 0.2 lux, Mono (33 ms): 0.14 lux
    Operating Humidity   10 to 95%, RH condensing
    Operating Temperature   –40° to 50°C (–40° to 122°F)
    OSD Menu   English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish
    Power Consumption  Without Heater: 17 Watts, With Heater: 23 Watts
    Protocols  TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP)
    S/N Ratio  >50 dB
    Weatherproof   IP66
    Digital Noise Reduction   3D
    Processor Intel® Core™ i3 processor, 2.4 GHz
    Angle of View   Horizontal FoV: 180°, Vertical FoV: 41°
    Audio Yes
    Auto Gain Control   Yes
    Day/Night   Yes
    Digital Noise Reduction   Yes
    Heater & Fan   Yes
    Motion Detection Tracking   Yes
    On Screen Display Menu   Yes
    Privacy Masking   Yes
    Wide Dynamic Range   Yes
    ONVIF  Yes
