Speco HTPTZ20T HD-TVI 1080p Full HD PTZ Camera, 20x Optical Zoom, 4.7-94mm Lens
SKU
htptz20t
Model No
HTPTZ20T
$657.12
Product Highlights
DEAL OF THE DAY: Use code QUICK5 and save $5
- 4.7 - 94mm 20x optical zoom lens
- Full HD 1080p @ 30fps
- 20x optical zoom lens
- True WDR (wide dynamic range) function
- True Day/Night function

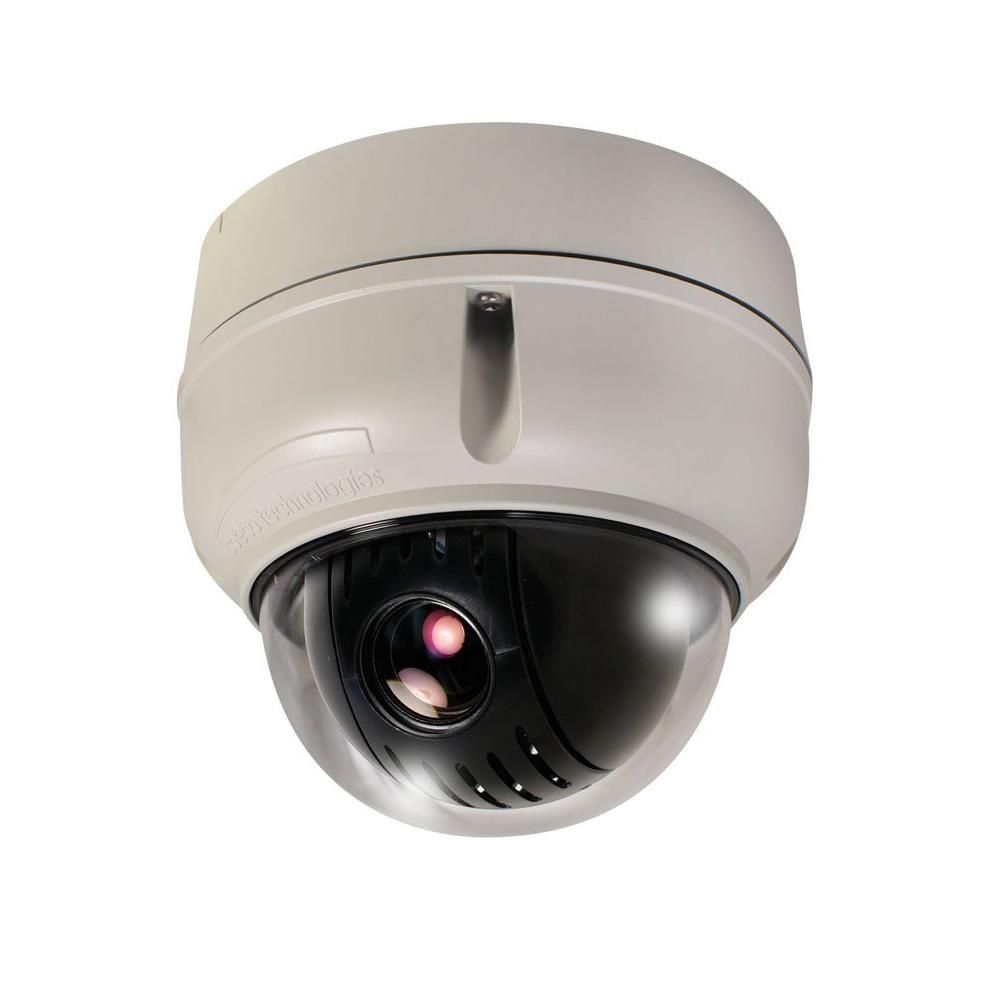

The HTPTZ20T from Speco is a HD-TVI 1080p full HD PTZ camera, 4.7 - 94mm varifocal, 20x optical zoom lens, white housing.
Features
- 4.7 - 94mm 20x optical zoom lens
- Full HD 1080p @ 30fps
- 20x optical zoom lens
- True WDR (wide dynamic range) function
- True Day/Night function
- 240 preset positions
- 4 Alarm Inputs / 2 Alarm Outputs
- 16x digital zoom
- Max 380°/sec speed
- Additional analog output for 960H
- Full OSD control via UTC (pan, tilt, and zoom)
- IP66 compliant, weather resistant
SKU  |
htptz20t |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Speco |
Camera Signal  |
HD-TVI |
| Resolution |
1080p |
| Sensor Option |
1/2.9" CMOS |
| Lens Type |
Motorized Zoom |
| Infrared Distance |
Non Infrared |
| Durability |
Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC, Dual Voltage |
| Electronic Shutter |
Auto / Manual |
| Image Device |
1/2.9” Sony 4Mega STARVIS CMOS |
| Image Pixels Total | 3096 (H) x 2281 (V) |
| Image Pixels-Effective | 2184 (H) x 2202 (V) |
| Minimum Scene Illumination |
0.001 lux @ F1.2, (sense-up x32) |
| Operating Humidity |
0% – 90% RH (non-condensing) |
| Operating Temperature |
14° F – 122° F |
| Dimensions (W x H) |
5.51” (H) x 6.06” (Dia.) |
| Power Consumption |
1A |
| Privacy Zone |
16 |
| Protocols |
Speco-C (TVI), Pelco-D (Analog) |
| S/N Ratio |
More than 50dB |
| Scanning System |
0-20 level adjustable |
| Video Output |
1.0Vp-p / 75 ohms |
| Weatherproof |
IP66 |
| Digital Noise Reduction |
3DNR |
| Backlight Compensation |
Yes |
| Rotation Angle | Pan: 360° Endless , Tilt: 10° – 190° (digital flip) |
| Automatic White Balance |
Auto / Fluorescent / Incandescent / Outdoor / Manual |
| Auto Gain Control |
Min. / Low / Middle / High |
| Motion Detection |
Yes |
| Back Light Compensation |
Yes |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| On Screen Display Menu |
Yes |
| Wide Dynamic Range |
Yes |
| Privacy Masking |
Yes |
| Auto Gain Control |
Yes |
| Motion Detection Tracking |
Yes |
| Digital Zoom | Yes |
