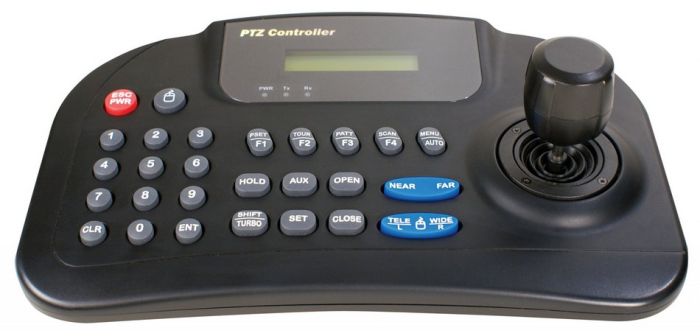

Speco KBDPTZ1 Speed Dome Keyboard Controller

The KBDPTZ1 from Speco is a state-of-the-art speed dome keyboard controller designed for seamless control over multiple speed dome cameras. This device enhances surveillance capabilities with advanced features such as programmable presets, robust security options, and high-speed camera control to ensure optimal monitoring in various environments.

Speco KBDPTZ1 Speed Dome Keyboard Controller Features

• Control Capacity: Capable of controlling up to 32 speed domes, allowing for extensive monitoring across multiple locations with one device.
• Security: 2 levels of passwords (administrator and user) are supported for higher security, ensuring that only authorized personnel can access the system.
• Data Management: Programmed data from up to 2 domes can be downloaded to non-volatile memory space and uploaded to a new dome, simplifying camera replacement and system upgrades.
• Advanced Camera Control: Control a camera's panning and tilting movement with variable speeds from 0.5'/sec. to 90'/sec., ensuring precise movements for effective surveillance.
• Zoom Integration: Normal speed is inversely proportional to the current zoom ratio, providing intuitive control based on the camera's zoom level for dynamic surveillance needs.
• Turbo Speed: Turbo speed is max. 380'/sec. when the "Ctrl" key is pressed, allowing rapid repositioning in critical situations.
• Preset Management: Define and recall up to 240 presets for immediate camera call-ups, ensuring quick access to key views for efficient monitoring.
• Pattern Programming: Able to define and run up to 8 patterns comprising of sequential movements, which automates patrol routines for comprehensive coverage.
• Scan Functionality: Define and run up to 8 scans between 2 limits, facilitating efficient area monitoring without manual intervention.
• Comprehensive Memory: Incorporate up to 300 presets, patterns, scans, and 8 tours for extensive operational customization, enhancing versatile surveillance strategies.
• Automatic Display: Presets, patterns, and scans are automatically displayed one after the other on the main monitor, ensuring continuous monitoring without user intervention.
• User Preferences: Programmable user preferences such as alarm settings and titles enable tailored configurations to match specific needs.
