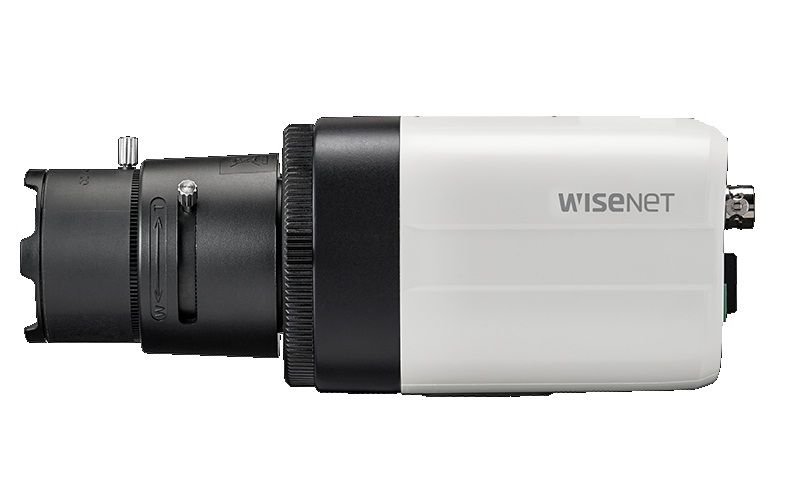

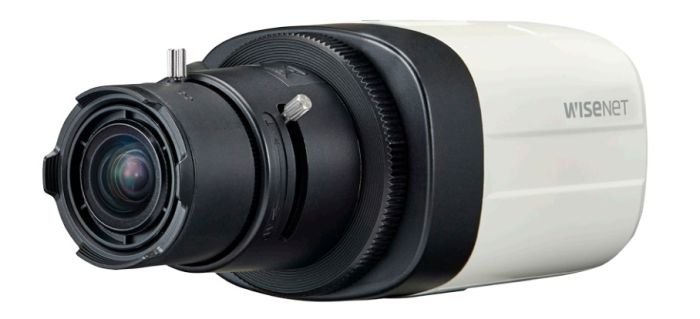

Hanwha Vision HCB-7000A 2560 x 1440 QHD Analog Indoor Box Camera, No Lens
SKU
HCB-7000A
Model No
HCB-7000A
$114.00
Product Highlights
- QHD (2560 x 1440, 30fps) resolution
- 0.16 [email protected] (Color), 0.009 [email protected] (B/W)
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
Speak to an expert
The HCB-7000A from Hanwha Vision is a 2560 x 1440 QHD Analog Indoor Box Camera that delivers exceptional image quality and versatility. With Wisenet HD+ 4MP resolution and support for AHD or CVBS formats, this camera ensures high performance whether used in residential or commercial settings. Its advanced features, including true Day/Night functionality and easy installation, make it an ideal choice for reliable surveillance.
Hanwha Vision HCB-7000A + Camera Features
- QHD (2560 x 1440, 30fps) resolution for crystal-clear images, enhancing surveillance capabilities.
- Low light performance with 0.16 [email protected] (Color) and 0.009 [email protected] (B/W), ensuring visibility in various lighting conditions.
- Day & Night (ICR) functionality for automatic switching between day and night modes, providing 24/7 monitoring.
- D-WDR (Digital Wide Dynamic Range) technology improves image quality in high-contrast scenes, helping to capture details in both shadows and highlights.
- Motion detection feature enhances security by alerting users to unexpected movement within the camera's view.
- Transmission distance of up to 500m allows for flexible installation options, making it suitable for larger areas.
- Easy installation with a plug & play setup and dual power options (24VAC/12VDC) for added convenience.
Hanwha Vision HCB-7000A Detailed Camera Specifications
| Model | HCB-7000A |
| Resolution | 2560 x 1440 QHD |
| Frame Rate | 30fps |
| Low Light Sensitivity | 0.16 [email protected] (Color), 0.009 [email protected] (B/W) |
| Day/Night Functionality | True Day/Night (ICR) |
| D-WDR | Yes |
| Motion Detection | Yes |
| Transmission Distance | Max. 500m |
| Power Options | 24VAC/12VDC |
| Lens Requirement | Requires 4MP or higher CS Mount Lens |
SKU  | HCB-7000A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Coaxitron, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD |
| Resolution | 2560 X 1440 |
| Sensor Option | 1/3" CMOS |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC, 24vAC, Dual Voltage |
| Electronic Shutter | NTSC: 1/30sec ~ 1/12,000sec, PAL: 1/25sec ~ 1/12,000sec |
| Image Device | 1/3" 4M CMOS |
| Image Pixels Total | 2,720(H) x 1,536(V) |
| Image Pixels-Effective | 2,688(H) x 1,520(V) |
| Minimum Scene Illumination | Color : 0.16 Lux (F1.2), B/W : 0.009 Lux (F1.2) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Dimensions (W x H) | 68.4 × 59.6 × 92.7mm (2.69" × 2.35" × 3.65") |
| OSD Menu | English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Power Consumption | MAX. 3.6W |
| Privacy Zone | Off / On (2 zones rectangle) |
| Protocols | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) RS-485 : Samsung T, Pelco D/P |
| S/N Ratio | 52dB (AGC off, Weight on) |
| Scanning System | Progressive Scan |
| Signal System | NTSC/PAL |
| Video Output | BNC (AHD), Additional CVBS for installation |
| Digital Noise Reduction | 2D DNR |
| Backlight Compensation | Off / User BLC / HLC |
| Automatic White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
| Auto Gain Control | Off / Low / Middle / High / Very High |
| Motion Detection | Off / On (4 zones) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Coaxitron | Yes |
