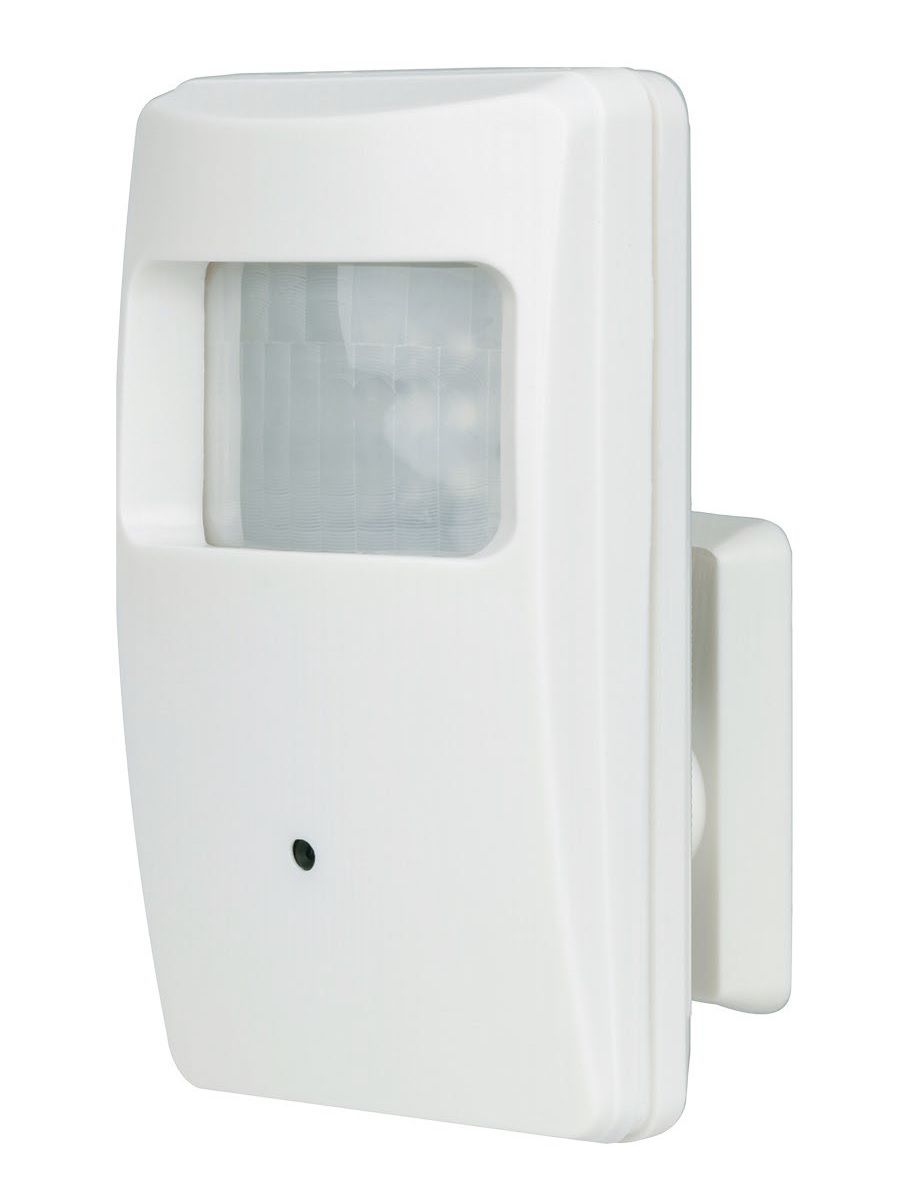

Seco-Larm EV-N6506-3W4Q 5 Megapixel IP Covert PIR Camera, 3.7mm Pinhole Lens
SKU
EV-N6506-3W4Q
Model No
EV-N6506-3W4Q
$110.00
Product Highlights
- 5MP Resolution
- 1/2.8" 5MP Sony CMOS
- H.265/MJPEG, Dual Stream IP Camera
- ICR module
- 2DNR & 3DNR (Digital Noise Reduction)
The EV-N6506-3W4Q from Seco-Larm is a 5 Megapixel IP covert PIR camera, 3.7mm pinhole lens.
Features
- 5MP Resolution
- 1/2.8" 5MP Sony CMOS
- H.265/MJPEG, Dual Stream IP Camera
- ICR module
- 2DNR & 3DNR (Digital Noise Reduction)
- D-WDR (Digital Wide Dynamic Range)
- 3.7mm Covert pinhole lens
- 18 Covert IR LEDs for discreet monitoring
- 12VDC operation, 802.3af PoE
- ONVIF Profile S
- Camera is hidden in a non-functioning PIR sensor housing
SKU  |
EV-N6506-3W4Q |
|---|---|
| Features |
Auto Gain Control, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Seco-Larm |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
0~60 Feet |
| Resolution |
5 Megapixel |
| Lens Type |
Fixed |
| Lens Size |
3.7mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
M-JPEG, H.265 |
| Durability |
Weather Resistant |
| Voltage |
12vDC |
| Dimensions (W x H) |
4-1/16"x2-3/8" x1-5/16" (104x60x34 mm) |
| Electronic Shutter |
1/50(1/60)s~1/10000s |
| Image Device |
1/2.8" 5MP Sony CMOS |
| IR LEDs |
18 Covert |
| IR Wavelength |
940nm |
| Minimum Scene Illumination |
IR On: 0.1 Lux IR Off: 0.01 Lux |
| Operating Temperature |
-4°~140° F (-20°~60° C) |
| Video Output |
RJ45 |
| Weatherproof |
IP65 |
| Digital Noise Reduction |
2DNR & 3DNR |
| Angle of View |
120° |
| IR Distance |
15m/50ft |
| Auto Gain Control |
Yes |
| Digital Noise Reduction |
Yes |
| On Screen Display Menu |
Yes |
| Wide Dynamic Range |
Yes |
