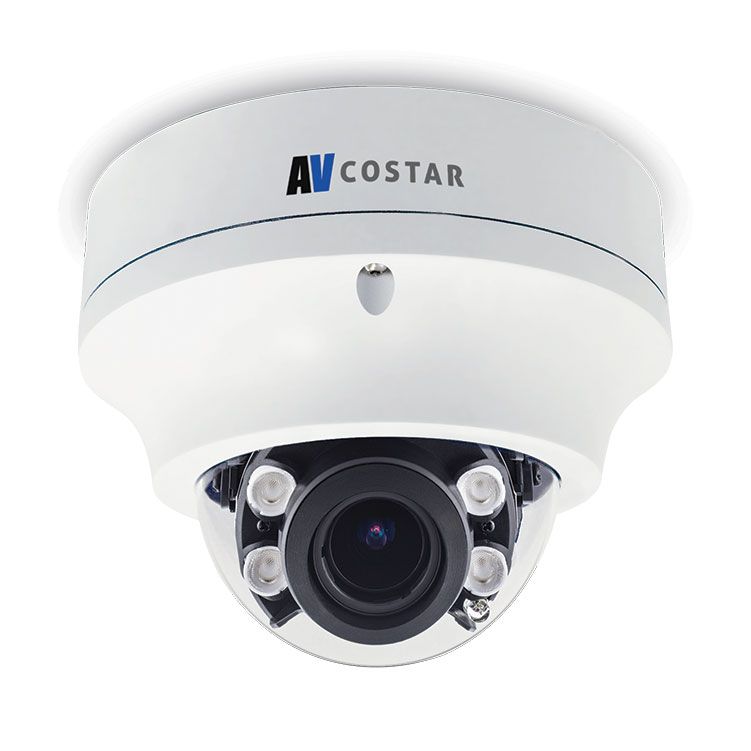

Arecont Vision AV02CLD-200 2 Megapixel ConteraIP Outdoor IR Dome Camera with 2.7-13.5mm Lens

Model No
Product Highlights
    • NDAA Compliant
    • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
    • Easily Adjustable 3-Axis Gimbal
    • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
    • 1TB Capacity MicroSDXC Card Slot for Onboard Storage

The ConteraIP Outdoor Dome megapixel camera features 1080p resolution for optimum performance. The ConteraIP Outdoor Dome combines a day/night mechanical IR cut filter with an integrated motorized remote focus and zoom varifocal lens for excellent, optimal image quality. Regardless of the time of day, the ConteraIP Outdoor Dome is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions.

For clear color images in low-light, NightView offers strong low-light sensitivity for capturing details in extremely poor-lit scenes. Built-in Smart IR LED illumination automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera. AV Costar was the first to bring H.264 to the mainstream market and recently developed SNAPstream (Smart Noise Adaptation and Processing) technology for reducing bandwidth without impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+ smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or prevent strain on the network.

The microSDXC card slot supports up to 1TB of capacity for convenient onboard storage. The camera’s power can be supplied via a Power-over-Ethernet (PoE - IEEE 802.3af) compliant network cable connection. The ConteraIP Outdoor Dome is IP66 rated for both indoor and outdoor applications. All models feature an impact resistant cast-aluminum housing. The ConteraIP Outdoor Dome is ONVIF (Open Network Video Interface Forum) Profile S, G, and T compliant, providing interoperability between network video products regardless of manufacturer.


  • NDAA Compliant
  • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  • Easily Adjustable 3-Axis Gimbal
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  • 1TB Capacity MicroSDXC Card Slot for Onboard Storage
  • Audio In / Out
  • Smart IR Illumination with Variable Illumination Ensures that IR Light is Evenly Disbursed up to 82ft (25m) for Scenes with Low or No Ambient Light
  • All-in-One H.265/H.264 Total PoE Solution, PoE and Auxiliary Power: 12V DC
  • Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
  • Triple Encoder: H.265/H.264/MJPEG
  • On-Screen Display (OSD)
  • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
  • 1080p (2.1-Megapixel) Resolution
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • NightView for Strong Low Light Performance
  • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
  • Remote Focus/Zoom Motorized Lens
SKU  AV02CLD-200
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Arecont Vision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.7-13.5mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  Unit: Ø 5.55" (141mm) x 4.09" H (104mm), Packaged: 5.9" H (150mm) x 6.7" W (170mm) x 7.28" L (185mm)
Electronic Shutter    Auto/manual 0.1ms ~ 500ms
Image Device    1/2.8" 1080p (2.1MP) CMOS Progressive Sensor
IR LEDs  4pcs, Smart IR
Minimum Scene Illumination  Color (Day Mode): 0.04 Lux, B/W (Night Mode): 0.005 Lux
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    -20°C (-4°F) to +50°C (122°F)
Power Consumption  8.5W max
Privacy Zone    Unlimited
Protocols  SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure
Weatherproof    IP66
Angle of View    H-FOV = 28°–100°, V-FOV = 16°–54°
Rotation AngleCorridorView™ (90°, 180°, and 270° image rotation) + mirror
Motion Detection Tracking    Real-time, 1024 detection zones
Back Light Compensation  Auto
Automatic White Balance    Auto/manual
IR Distance  25m/82ft
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
