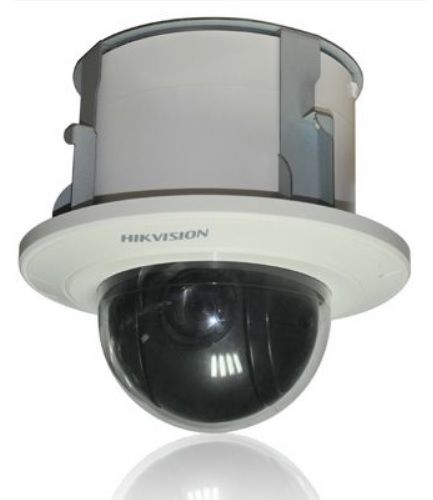

Hikvision DS-2DF5232X-AE3 2 Megapixel Indoor Network PTZ Dome Camera, 32X

Name: Hikvision DS-2DF5232X-AE3 2 Megapixel Indoor Network PTZ Dome Camera, 32X
Brand: Hikvision
SKU: DS-2DF5232X-AE3
Price: 1053.68 USD
Availability: InStock

SKU

DS-2DF5232X-AE3

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hikvision DS-2DF5232X-AE3 2 Megapixel Indoor Network PTZ Dome Camera, 32X DS-2DF5232X-AE3 by Hikvision

Model No

DS-2DF5232X-AE3

$1,053.68

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
32 × optical zoom, 16 × digital zoom
120dB WDR, 3D DNR, HLC
24 VAC & Hi-PoE

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

2 Megapixel Indoor Network PTZ Dome Camera

The DS-2DF5232X-AE3 from Hikvision is a 2MP 32x Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 32x optical zoom lens, the camera offers more details over expansive areas.

The DS-2DF5232X-AE3 camera can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Digital Zoom

Onvif

Privacy Masking

WDR

Camera Features


1/2.8" progressive scan CMOS	120dB WDR, 3D DNR, HLC
Up to 1920 x 1080 resolution	24 VAC & Hi-PoE
Min. Illumination: Color: 0.002 Lux @(F1.2, AGC ON) B/W: 0.0002 Lux @(F1.2, AGC ON)	Support H.265+/H.265 video compression
32x optical zoom, 16x digital zoom	Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection

Durable PTZ Cameras for Reliable Performance

PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.

Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.

Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.

Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.

View from Anywhere with Hik-Connect

Upgrade Your Experience with Hik Connect 5.0

Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.

Specifications

SKU	DS-2DF5232X-AE3
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer	Hikvision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	2 Megapixel
Lens Type	Motorized Zoom
Lens Size	32X
Mount Type	Pendant
Compression Method	H.264, M-JPEG, H.265, H.264+, H.265+
Durability	Indoor
Voltage	HPoE
Automatic Gain Control (AGC)	Auto/Manual
Dimensions (W x H)	Φ 245.1 mm × 239 mm (Φ 9.65" × 9.41")
Electronic Shutter	1/1 s to 1/30,000 s
Image Device	1/2.8" progressive scan CMOS
Minimum Scene Illumination	Color: 0.002 Lux @(F1.2, AGC ON), B/W: 0.0002 Lux @(F1.2, AGC ON)
Operating Humidity	≤ 90%
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Power Consumption	24 VAC: Max. 60 W, Hi-PoE: Max. 50 W
Privacy Zone	24 programmable polygon privacy masks
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Digital Noise Reduction	3D: Support
Angle of View	Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)
Back Light Compensation	Support
Automatic White Balance	Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
ONVIF	Yes
Digital Zoom	Yes
