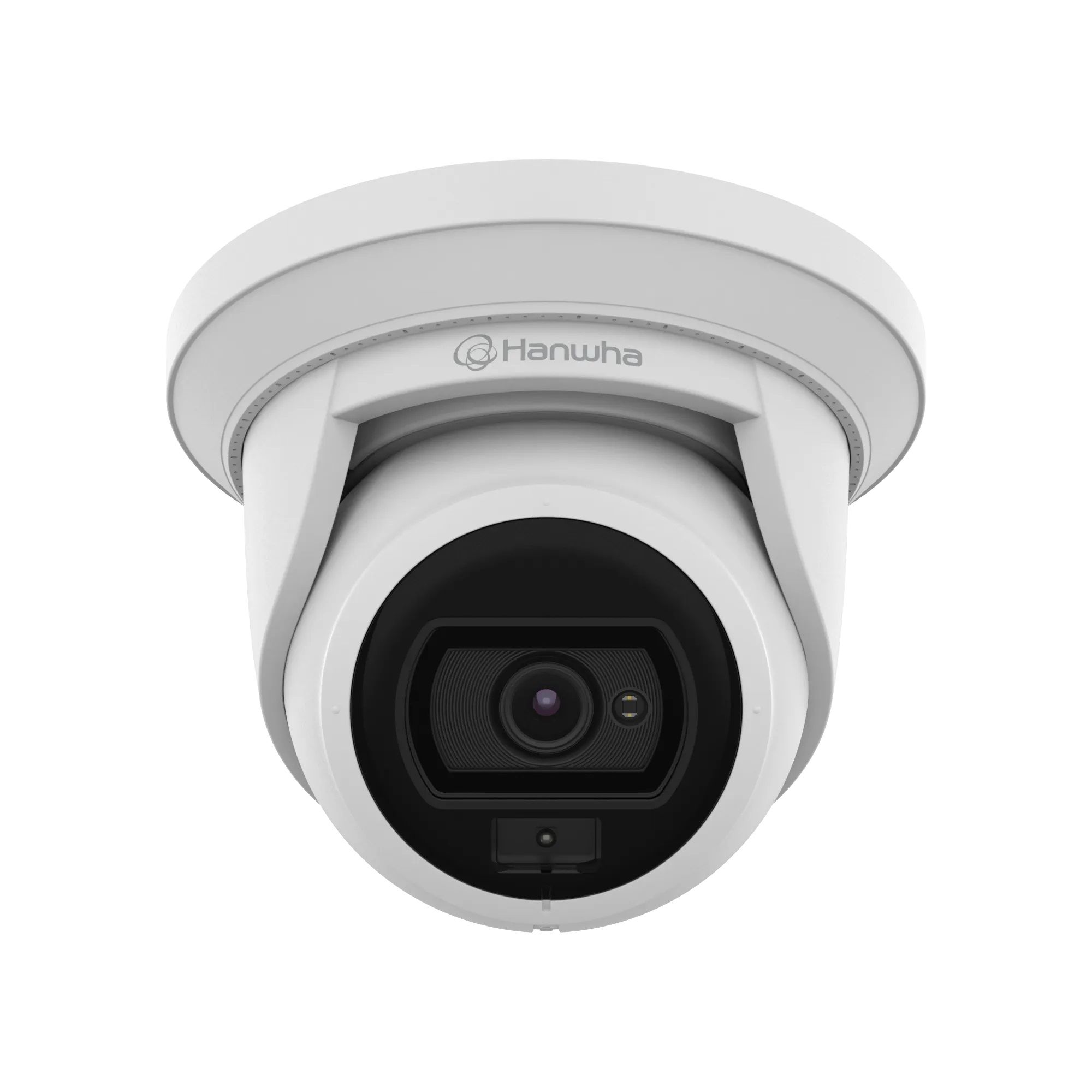

Hanwha Vision ANE-L7012L 4 Megapixel Network Outdoor Dome Camera with 3mm Lens
SKU
ANE-L7012L
Model No
ANE-L7012L
$181.60
Product Highlights
- 4 megapixel (2560 x 1440) resolution
- Built-in 3mm fixed lens FoV H: 98.3° / V: 54.2°
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG triple codec
- WDR (120dB)
Speak to an expert
4 Megapixel Network Outdoor Dome Camera with 3mm Lens
- Introducing the Hanwha Vision ANE-L7012L 4 Megapixel Network Outdoor Dome Camera, designed to provide superior surveillance capabilities with its advanced features and robust construction. This camera delivers high-resolution imaging, excellent low-light performance, and smart detection capabilities, ensuring security professionals can monitor and respond to incidents effectively.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 4 megapixel (2560 x 1440) resolution | virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering |
| Built-in 3mm fixed lens FoV H: 98.3° / V: 54.2° | Micro SD/SDHC memory slot (Max. 128GB) |
| 30fps@ all resolutions (H.265/H.264) | PoE powered |
| H.265/H.264, MJPEG triple codec | Hallway view, WiseStream II support |
| WDR (120dB) | IP66, IK10 support |
Wisenet A series | Overview
The Wisenet A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Affordability without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
Additional Hanwha Vision Products
SKU  | ANE-L7012L |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | ø125.0x87.4mm(ø4.92x3.44") |
| Electronic Shutter | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color : 0.05Lux (F1.2, 1/30sec) |
| Operating Humidity | 0~95% RH * Start up should be done at above -20°C(-4°F) |
| Operating Temperature | -30°C~+55°C(-22°F ~ +131°F) |
| Power Consumption | Max: 7.6W, Typ: 4.2W |
| Privacy Zone | 6ea, rectangular zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Weatherproof | IP66 |
| Digital Noise Reduction | SSNR |
| Angle of View | H: 97° / V: 53° / D: 113° |
| Rotation Angle | Flip, Mirror, Hallway view(90°/270°) |
| Motion Detection Tracking | 4ea, polygonal zones |
| Back Light Compensation | BLC, WDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
