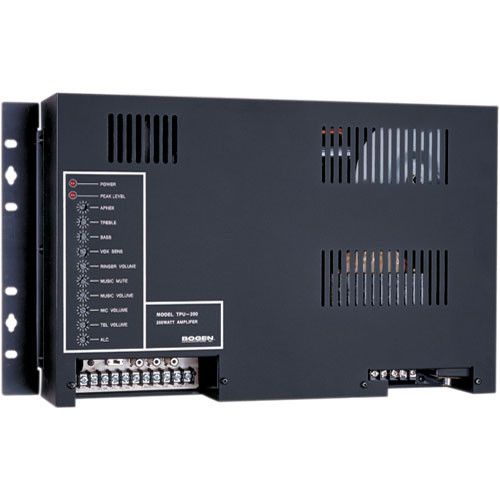

Bogen TPU250 Telephone Paging Amplifier, 250W

The TPU250 from Bogen is a powerful 250W telephone paging amplifier designed to enhance communication in commercial settings. Equipped with inputs for both telephone and microphone paging, it seamlessly integrates into a 70V PA system. Key features include automatic level control for clear paging, adjustable music muting, and built-in safeguards for thermal and electronic overload, making it the ideal solution for reliable and intelligible announcements.

Bogen TPU250 Telephone Paging Amplifier Features

• 250-watt model: Provides ample power for commercial paging needs, ensuring loud and clear announcements across large areas.
• Multiple inputs: Supports 600-ohm balanced telephone lines, Lo-Z balanced microphones, and background music inputs, offering versatility for various paging sources.
• RCA music input: Connects easily with background music systems via RCA jack or screw terminals.
• Automatic Level Control (ALC): Ensures consistent paging volume regardless of the speaker's voice level, enhancing clarity.
• Combined paging options: Enables users to page from either a telephone or microphone, providing flexibility in communication methods.
• Signal-activated muting: Automatically mutes background music during pages, allowing for undistracted announcements.
• Adjustable music muting: Customize the background music level during announcements to maintain a balanced sound environment.
• Fade back music feature: Background music gradually returns to its normal level after a page, creating a smooth listening experience.
• Audio Enhancement Circuit: Improves intelligibility and reduces listener fatigue without increasing power usage.
• Separate controls: Individual controls for page volume, music volume, night ringer, music mute, and Audio Enhancement for personalized sound management.
• Bass and treble controls: Allows adjustment of sound quality to match specific environment needs.
• Built-in night ringer: Activated by contact closure or a 90V ring signal to alert personnel during after-hours.
• 25V and 70V outputs: Versatile output options for integration with existing PA systems.
• VOX sensitivity control: Prevents unwanted background noise from triggering paging, ensuring clear communication.
• Thermal and electronic overload protection: Safeguards the amplifier from damage, enhancing reliability and longevity.
• Bridging capability: Jacks provided for connecting additional TPU amplifiers, scaling the system as needed.
• Peak level indicator: Visual feedback when the amplifier approaches clipping, aiding in sound management.
• 120V AC power source: Standard power requirement for convenient setup.
• UL Listed 60065: Ensures compliance with safety standards in the U.S. and Canada.

Detailed Specifications for Bogen TPU250
