Bogen WMT1A Input/Line Transformer

SKU
WMT1A

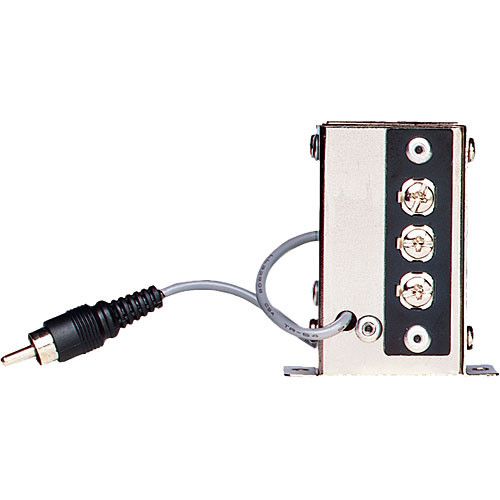

Bogen WMT1A Input/Line Transformer WMT1A by Bogen
Bogen WMT1A Input/Line Transformer WMT1A by Bogen
Model No
WMT1A
$34.23
Qty:
Product Highlights
    • Hi-Z, 10k-ohm primary impedance
    • Lo-Z, 600-ohm secondary impedance, balanced with center tap
    • Matches high-to-low impedance or low-to-high impedance
    • Adapts line-level signals to microphone inputs
    • RCA connector for Hi-Z side

The line-matching transformer shall be a Bogen WMT1A, or equivalent, capable of matching either inputs from, or outputs to, a 600-ohm line. It shall provide a perfect impedance match between a 600-ohm balanced line and the high-impedance input of an amplifier, or the 25V output of an amplifier. Frequency response shall be ±2 dB from 50 Hz to 20 kHz. Less than 0.1 volt across a 600-ohm line shall be required for full output power from an average amplifier (maximum level, +20 dBm). Output shall be approximately 1.73 volts when connected across the 25V output tap or WMT1A Hi-Z output connection of a Bogen amplifier. Line input or output connections from the 600-ohm line shall be made via a three-screw terminal strip. Connection to the auxiliary input of an amplifier shall be by means of a shielded cable terminated in an RCA plug. Provisions shall be included to connect the unit to a microphone input. The mounting bracket shall allow the transformer to be mounted by means of two steel screws.

Features

  • Hi-Z, 10k-ohm primary impedance
  • Lo-Z, 600-ohm secondary impedance, balanced with center tap
  • Matches high-to-low impedance or low-to-high impedance
  • Adapts line-level signals to microphone inputs
  • RCA connector for Hi-Z side
  • Screw terminals for Lo-Z side
  • Small steel enclosure with mounting ears allows easy mounting
  • No wiring or soldering required
  • May be used to provide a 600-ohm output from a Bogen mixer/pre-amplifier
SKU  WMT1A
Manufacturer  Bogen
