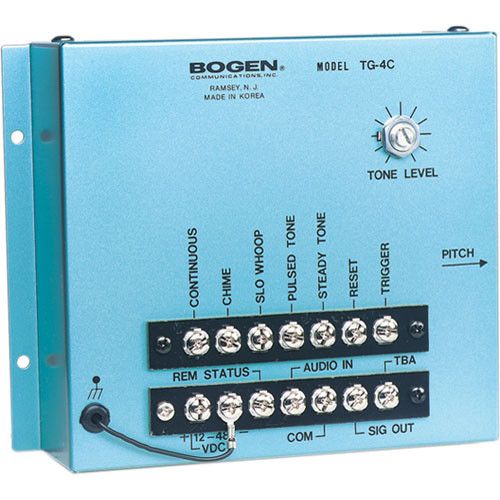

Bogen TG4C Multiple Tone Generator for Paging Systems

The Model TG4C Multiple Tone Generator is a compact, reliable unit designed to generate four distinct signals: pulsed tone; slow whoop; repeating chime; and steady tone. It is an excellent source for alarm or pre-announce signals in public address or telephone paging systems. The TG4C will accept a Hi-Z input from a program source, such as a tuner, turntable, CD player, etc., and will maintain precedence over the program material for the duration of the contact closure.

Bogen TG4C Multiple Tone Generator Features

• 4 types of tones: steady, pulsed alarm, slow whoop, and chime - Provides versatile signaling options for various applications.
• Tones triggered by external contact closure: momentary or long duration - Ensures reliable activation based on system needs.
• Choice of continuous or two-burst tone: except for steady tone - Enhances flexibility in tone selection to suit different contexts.
• Tone generation reset available: - Allows for quick restoration of tone settings after activation.
• Adjustable tone level and pitch: - Customizes audio output for optimal clarity and effectiveness.
• Operates on 12 - 48V DC: positive or negative ground - Compatible with various electrical setups for convenient integration.
• Built-in precedence over interconnected program source: - Guarantees generating alarms or signals takes priority in emergency situations.
• Accessory AC adapter: Model PRS40C available for operation from a 120V AC, 60 Hz source - Facilitates diverse power source options.
• 600-ohm output: - Compatible with standard telephone lines for straightforward connectivity.
• Line-matching transformer: Model WMT1A available for standard 600-ohm telephone line connections - Simplifies integration with existing systems.
• Screw terminal connections: - Ensures secure and reliable wiring for installations.
