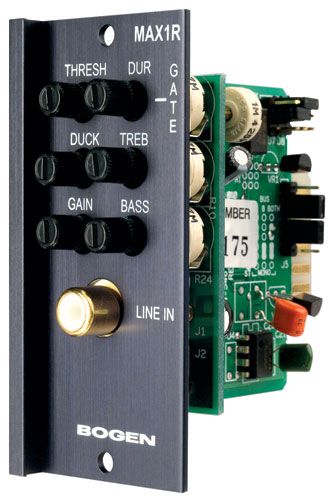

Bogen MAX1R Mono Auxiliary Input Module

The Bogen MAX1R Mono Auxiliary Input Module is a high-impedance, unbalanced input solution designed for maximum versatility and audio control. With features such as adjustable gain, bass and treble controls, and a unique VOX/gating circuit, this module provides exceptional performance for any audio mixing environment.

Bogen MAX1R Camera Features

Features

• Gain/Trim Control: Adjusts gain from -20 dB to +6 dB, allowing for precise audio levels tailored to your setup.
• Bass & Treble Controls: Provides up to 10 dB of cut or boost at 100 Hz and 10 kHz, enabling sound customization to suit any audio preference.
• Gating w/Threshold & Duration: Helps manage audio levels by controlling muting of lower priority modules, ensuring clarity in sound output.
• Mute Send & Receive: Integrates smoothly with other modules, enhancing control over the audio mix.
• Variable Ducking Level: Attenuates the input signal from 10 dB to 48 dB when muted/gated, preserving necessary sound dynamics.
• Fade Back from Mute/Gate: Offers a gradual reintroduction of audio for a smoother transition when unmuting.
• 4 Priority Levels: Assignable priority for inputs allows for customized control of audio mixing hierarchy.
• Bus Assignable: Enables flexible output routing to either or both mixing buses for enhanced versatility in audio applications.
• RCA Connectors: Standardized connections for ease of compatibility with existing audio equipment.

Bogen MAX1R Detailed Specifications
