Bogen HTA250A Power Amplifier, 250-Watt, 70V/25V
SKU
HTA250A
Model No
HTA250A
$1,149.00
Product Highlights
- Power MOSFET circuitry
- Capable of continuous operation at rated output power
- Frequency response ±1dB, 20 to 20,000 Hz at full rated output
- Distortion less than 0.5% THD, 20 to 20,000 Hz
- Multiple output voltages/impedances available
Speak to an expert

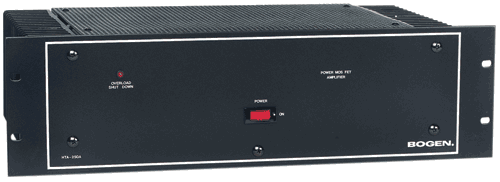

The Bogen HTA250A Power Amplifier is a high-performance audio amplifier designed with advanced Power MOSFET technology, ensuring superior efficiency and reliability. With a robust 250-watt continuous output capability and minimal distortion, this amplifier is perfect for a variety of professional audio applications, delivering clear sound and dependable operation across diverse load conditions.
Bogen HTA250A Power Amplifier Features
- Power MOSFET circuitry: Provides superior performance and reliability compared to traditional transistor designs, enhancing sound quality.
- Continuous operation capability: Maintains rated output power without interruption, ensuring consistent audio performance.
- Frequency response: ±1dB from 20 to 20,000 Hz at full rated output, allowing for a full-range sound experience.
- Minimal distortion: Less than 0.5% total harmonic distortion, ensuring clarity and fidelity in audio reproduction.
- Multiple output voltages/impedances: Can drive a variety of load impedances including 4 ohms, 8 ohms, 25VCT, and 70 volts, offering versatility for different sound systems.
- Automatic overload protection: Protects the amplifier from damage due to excessive loads, enhancing longevity.
- UL Listed: Complies with UL Standard 60065 for safety in the US and Canada, ensuring peace of mind during operation.
Bogen HTA250A Power Amplifier Detailed Specifications
| Model | HTA250A |
| Power Output | 250 watts RMS continuous |
| Total Harmonic Distortion | Less than 0.5% |
| Frequency Response | 20 to 20,000 Hz ±1dB |
| Input Signal | 500mV for full rated output |
| Input Impedance | 50k ohms (unbalanced), 500/600 ohms (balanced/unbalanced) |
| Load Impedances | 4 ohms, 8 ohms, 25VCT, 70 volts |
| Regulation | Better than 2 dB from no load to full load |
| Residual Hum and Noise | 90 dB below rated output |
| Protection Features | Thermal, overload limiting, short circuit protection, SloBlo fuse |
SKU  | HTA250A |
|---|---|
| Manufacturer | Bogen |
| Features CD Player | No |
| Features AM/FM Tuners | No |
| Features MP3 or iPod Dock | No |
| Watts | 250 Watts |
| # of Inputs | 2 |
| # of Outputs | 4 |
There are no related videos.
Write Your Own Review
Manuals & Specifications
HTA250A-Specsheet HTA250A-Installation-Manual
