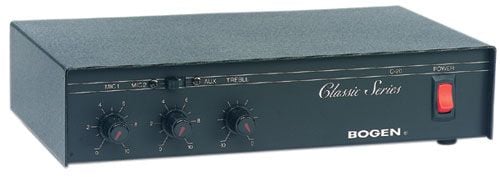

Bogen C20 20 Watts Classic Amplifier

The Bogen C20 is a rugged and powerful 20W classic amplifier designed for reliable public address applications. With its discrete complementary transistor circuitry, it ensures dependable performance across all output stages. Featuring versatile output tap options and a dedicated microphone input, this amp is perfect for any sound system needs, delivering exceptional sound quality in various settings.

Bogen C20 Amplifier Features

• 20W output power: Provides ample power for clear, audible sound in a variety of environments.
• Transformer isolated 4?, 8?, 16?, 25V and 70V output taps: Ensures flexibility in installation and sound distribution according to specific system requirements.
• Rear panel auxiliary receptacle: Allows easy connection of additional audio sources for increased functionality.
• One dedicated MIC 1 input — Lo-Z balanced: Offers high-quality microphone input that minimizes noise, enhancing overall sound clarity.
• One switchable MIC 2/AUX 1 input: Provides versatility by enabling quick switching between microphone and auxiliary sources.
• Contact muting of AUX input: Prevents unwanted interference during critical audio moments, ensuring clear sound delivery.
• Transformer-isolated 600? telephone paging input: Facilitates seamless integration with telephone paging systems for effective communication.
• Separate rear panel-mounted TEL volume control: Enables independent adjustment of the telephone paging volume for customized sound management.
• Voice-activated muting of AUX input by TEL input: Automatically mutes the auxiliary input during telephone usage, guaranteeing priority audio delivery.
• Variable trigger threshold for voice activation: Allows users to set sensitivity levels for adaptive and responsive audio control.
• Optional wall mount kit: Provides flexibility in installation options, allowing for space-efficient setups.
• Optional impedance matching transformer 10k/600?: Enhances compatibility with various audio devices, improving system integration.
• Listed to UL Standard 60065 for US and Canada: Ensures safety and compliance, giving users peace of mind regarding the product's electrical integrity.

Detailed Specifications for Bogen C20 Amplifier
