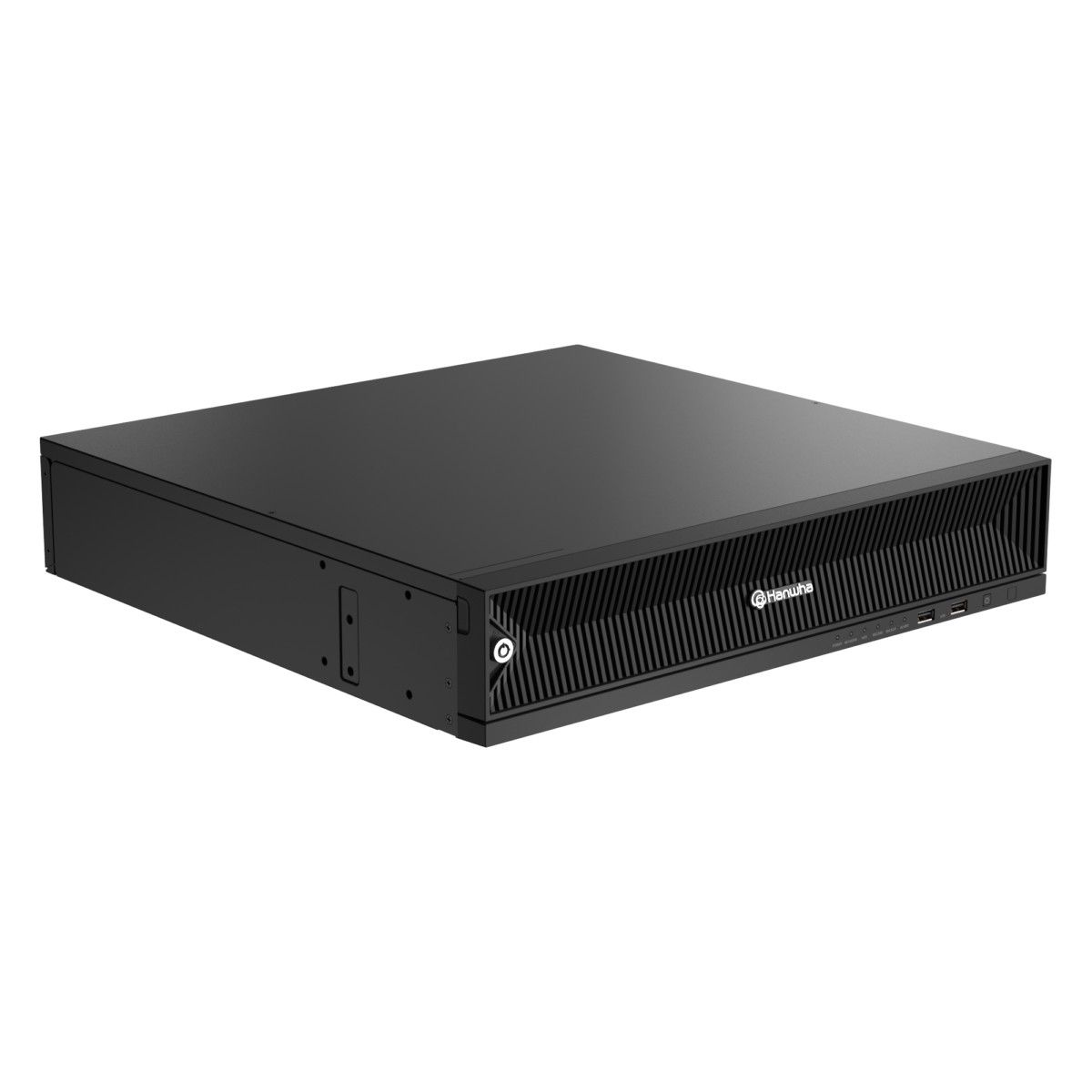

Hanwha Vision XRN-6420RB2-16TB 64 Channel NVR with 12th Genration Intel® Processor with 16TB
SKU
XRN-6420RB2-16TB
Model No
XRN-6420RB2-16TB
$8,584.31
Product Highlights
- 64CH, 32MP resolution
- SATA 8 HDD Bays (up to 80TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
Speak to an expert
64 Channel NVR with 12th Genration Intel® Processor with 16TB
- Introducing the Hanwha Vision XRN-6420RB2-16TB, a powerful 64 channel NVR equipped with a cutting-edge 12th Generation Intel processor, ensuring compliance with NDAA standards and enhanced cybersecurity via integrated TPM technology. Designed for easy installation and seamless operation, this NVR features innovative tools such as a Camera Setting Palette and support for Dynamic Layouts, making it the perfect choice for efficient and reliable surveillance solutions.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 64CH, 32MP resolution | Virtual Channel View |
| SATA 8 HDD Bays (up to 80TB) | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration |
Additional Hanwha Vision Products
SKU  | XRN-6420RB2-16TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 64 Channels |
| Harddrive Size | 16TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 438 x 86 x 434.9 mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.7A |
| Power Consumption | Max. 162W (553BTU with HDD 8ea) |
| SATA | SATA 8ea(Max. 80TB, Non-RAID mode), Hot swap |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
XRN-6420RB2-Specsheet XRN-Quick-Guide XRN-Manual
