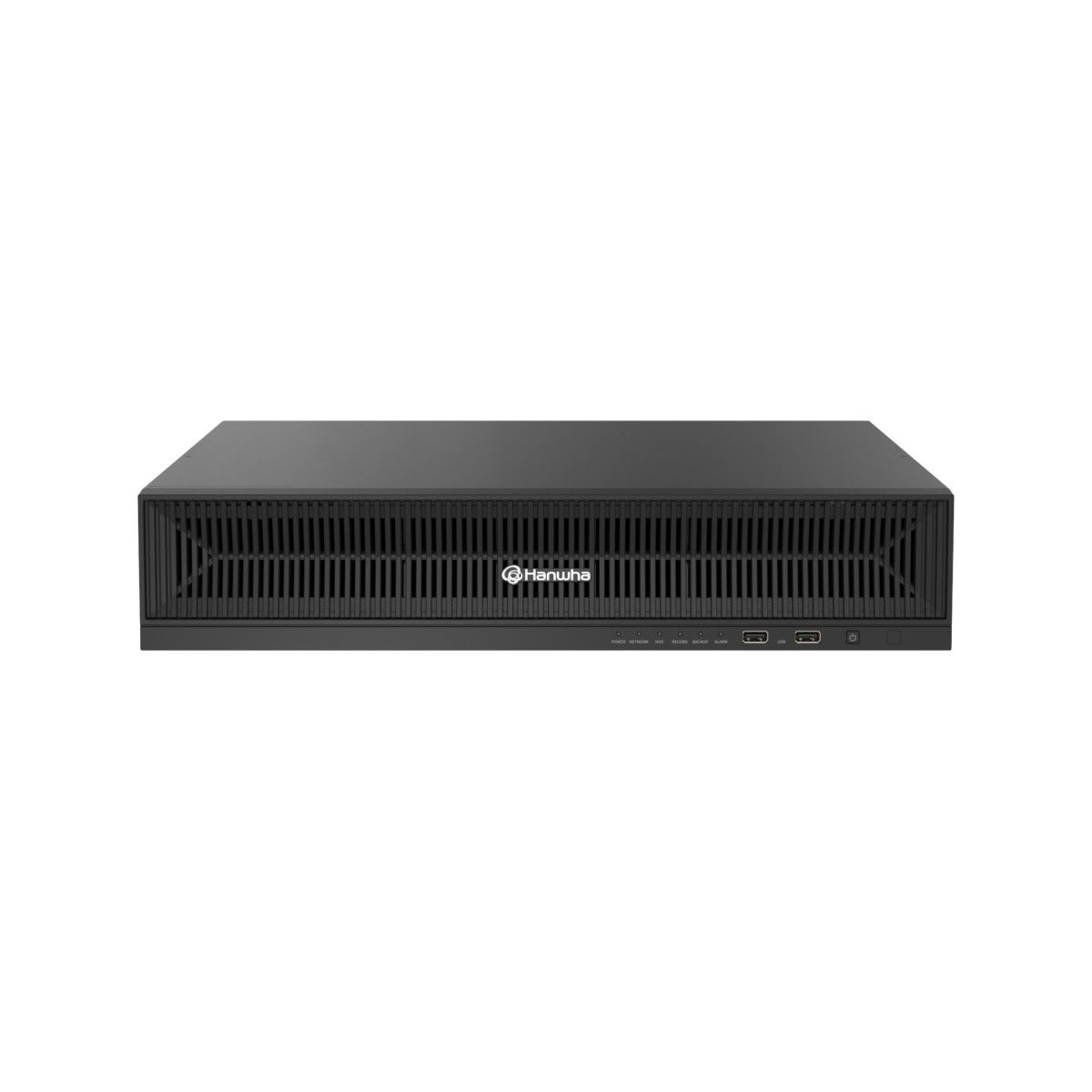

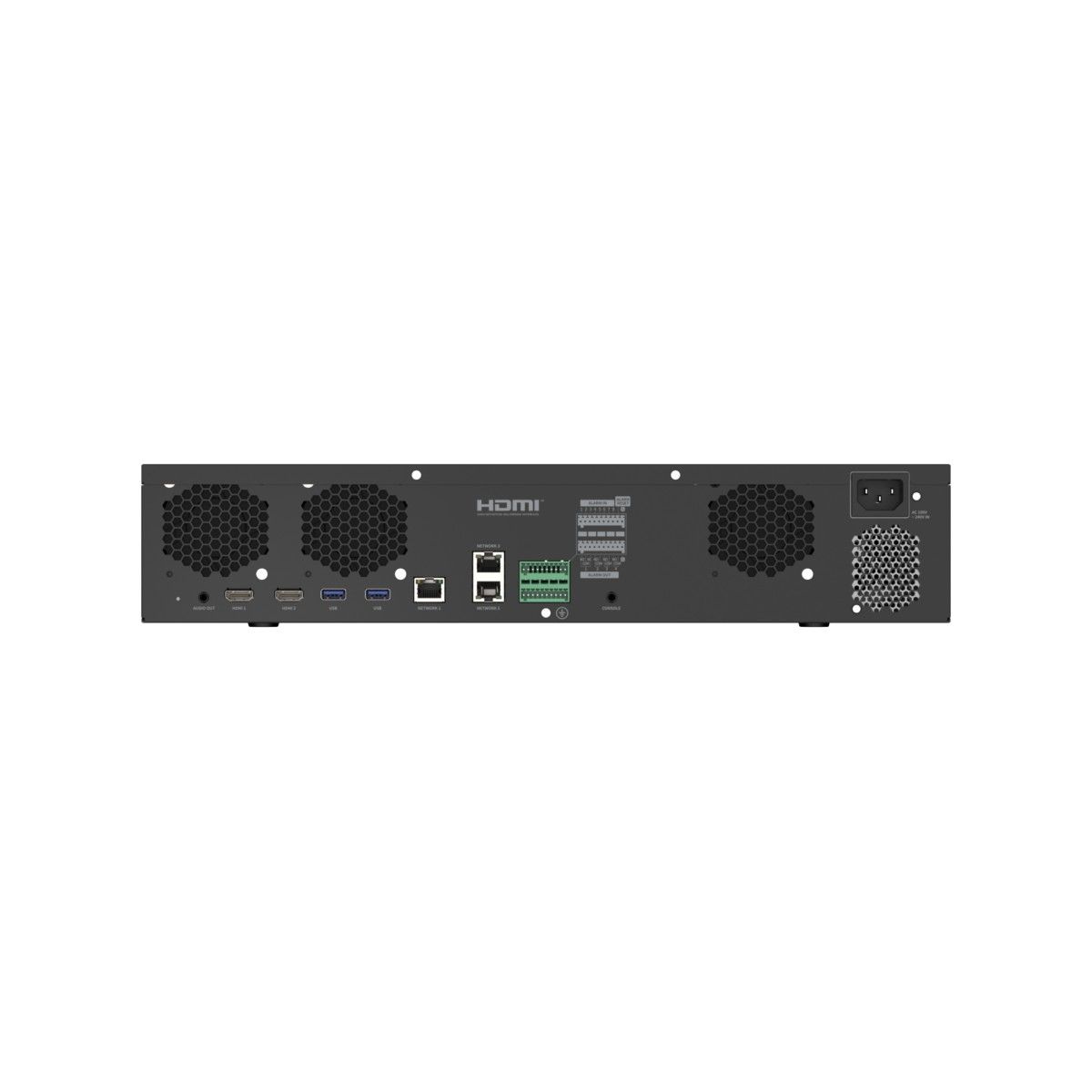

Hanwha Vision XRN-6420B2-80TB 64 Channel NVR with 12th Genration Intel® Processor with 80TB
SKU
XRN-6420B2-80TB
Model No
XRN-6420B2-80TB
$12,673.20
Product Highlights
- 64CH, 32MP resolution
- SATA 8 HDD Bays (up to 80TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
Speak to an expert
64 Channel NVR with 12th Genration Intel® Processor with 80TB
- Introducing the Hanwha Vision XRN-6420B2-80TB, a state-of-the-art 64 Channel NVR that features a powerful 12th Generation Intel Processor and comes with an impressive 80TB of storage. This advanced NVR ensures compliance with NDAA standards and enhances cybersecurity with built-in TPM, offering seamless installation and operation with unique features tailored for video surveillance solutions.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 64CH, 32MP resolution | Virtual Channel View |
| SATA 8 HDD Bays (up to 80TB) | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration |
Additional Hanwha Vision Products
SKU  | XRN-6420B2-80TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 64 Channels |
| Harddrive Size | 80TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 438 x 86 x 434.9 mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A |
| Power Consumption | Max. 143W (488BTU with HDD 8ea) |
| SATA | SATA 8ea(Max. 80TB) |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
XRN-6420B2-Specsheet XRN-Quick-Guide XRN-Manual
