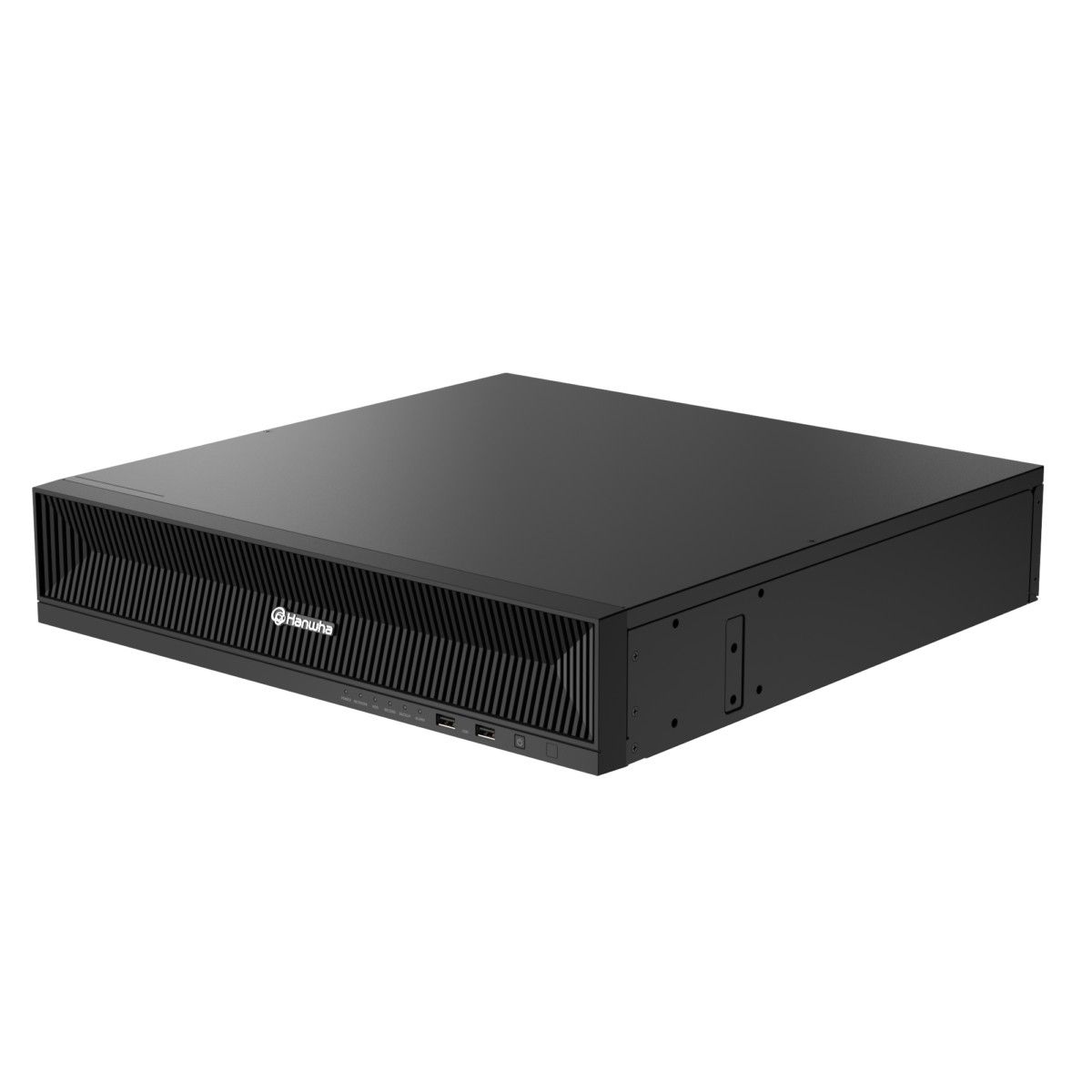

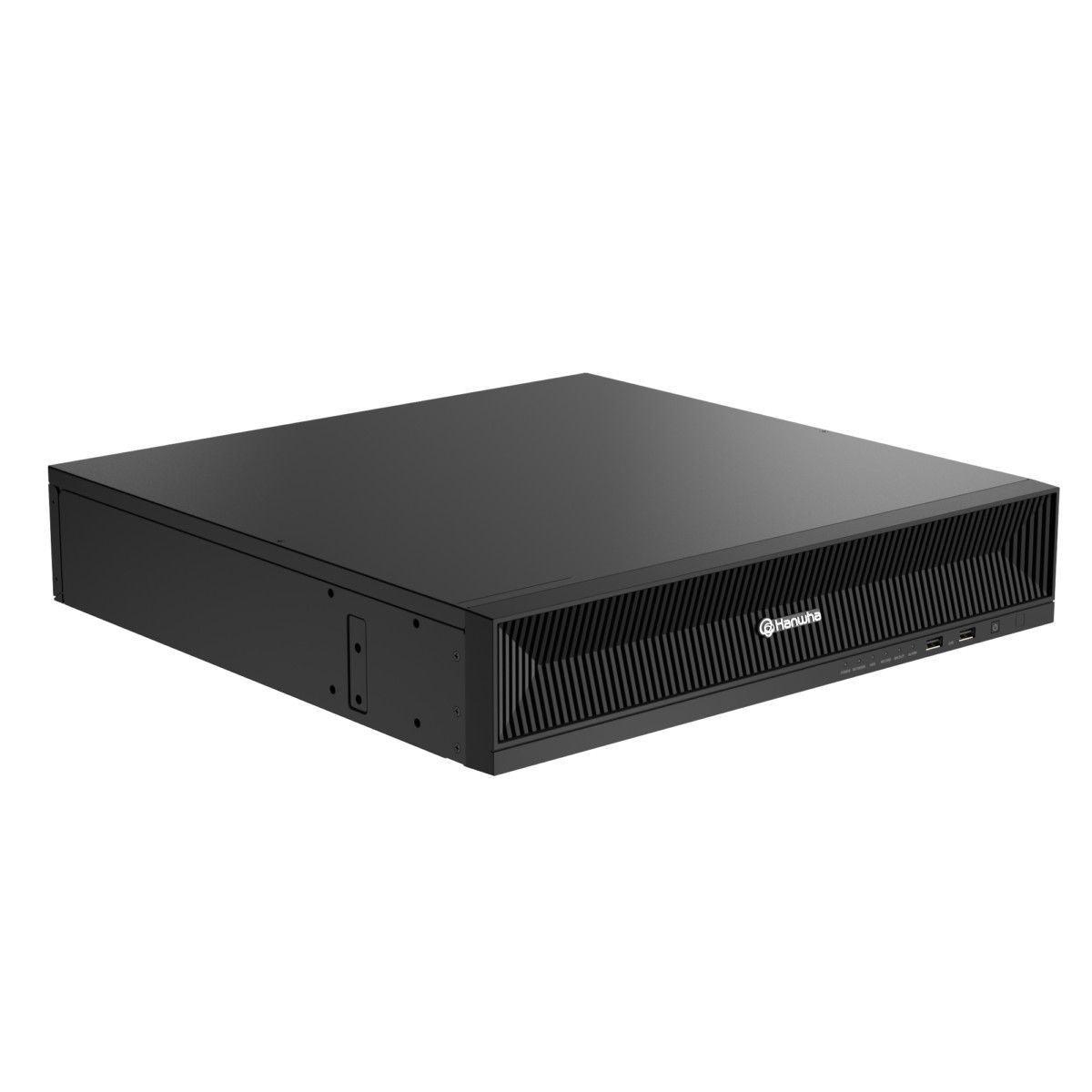

Hanwha Vision XRN-6420B2-48TB 64 Channel NVR with 12th Genration Intel® Processor with 48TB
SKU
XRN-6420B2-48TB
Model No
XRN-6420B2-48TB
$9,934.00
Product Highlights
- 64CH, 32MP resolution
- SATA 8 HDD Bays (up to 80TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
Speak to an expert
The Hanwha Vision XRN-6420B2-48TB is a powerful 64 Channel NVR equipped with a 12th Generation Intel® Processor, providing unmatched performance for high-resolution surveillance systems. With its impressive 48TB storage capacity and advanced configuration options, this NVR ensures efficient management of video data, making it an ideal solution for comprehensive security needs.
Hanwha Vision XRN-6420B2-48TB Key Features
- 64 Channels: Supports up to 64 channels, allowing for extensive monitoring capabilities tailored for large-scale environments.
- High Resolution: 32MP resolution recording ensures crystal-clear video quality, providing detailed insights and improved identification.
- Storage Capacity: Features 8 SATA HDD bays with the capability to expand up to 80TB, accommodating extensive video data storage needs.
- High Throughput: Offers up to 520Mbps recording/transmission bandwidth, enabling smooth and reliable video streaming without lag.
- User-Friendly Configuration: Simplifies channel, event, and alarm configuration, making setup and management easy for users at any skill level.
- Virtual Channel View: Enhances user experience by allowing a comprehensive view of multiple channels simultaneously, streamlining monitoring tasks.
Hanwha Vision XRN-6420B2-48TB Detailed Specifications
| Model | XRN-6420B2-48TB |
| Processor | 12th Generation Intel® Processor |
| Channel Capacity | 64 Channels |
| Resolution Support | Up to 32MP |
| Storage Bays | 8 SATA HDD Bays |
| Max Storage | Up to 80TB |
| Recording Bandwidth | Up to 520Mbps |
| Configuration Type | Easy Channel/Event/Alarm Configuration |
| Special Features | Virtual Channel View |
SKU  | XRN-6420B2-48TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 64 Channels |
| Harddrive Size | 48TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 438 x 86 x 434.9 mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A |
| Power Consumption | Max. 143W (488BTU with HDD 8ea) |
| SATA | SATA 8ea(Max. 80TB) |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
XRN-6420B2-Specsheet XRN-Quick-Guide XRN-Manual
